Engine lubrication / Engine oil cooler 924 TURBO/GT 1980 - 1985 - PORSCHE

Click the image numbers to view product info

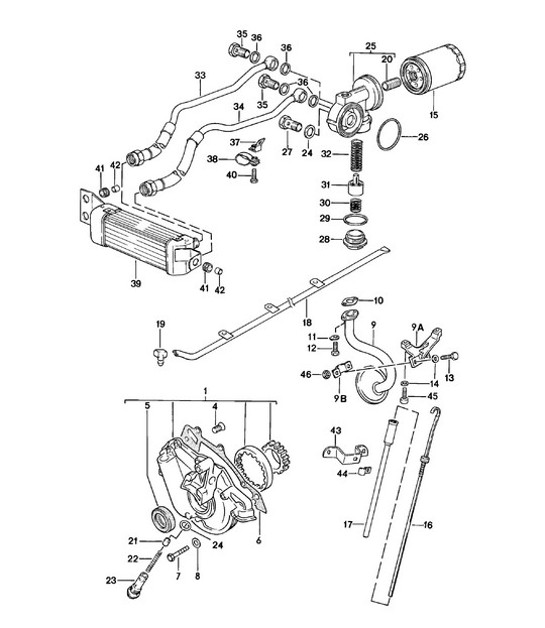

Diagram 104-005 Porsche 924 (1977-1988) Engine SKU: 046115105A, oil pump ready for installation SKU: N0331781, countersunk-head screw m 6 x 15 SKU: PCG115147, sealing ring 35 x 54 x 10 SKU: PCG115189A, gasket SKU: N0103393, hexagon-head bolt m 6 x 40,SKU: N0102213, hexagon-head bolt m 6 x 35 SKU: N0115576, washer 6,4 SKU: 047115251B, intake pipe SKU: 047115267C, retaining bracket SKU: 047115285, pipe clamp SKU: 048115257, gasket SKU: 048115259, tab washer SKU: N90057201, hexagon socket head bolt m 6 x 15 SKU: PCG010210A, hexagon-head bolt m 6 x 10 SKU: PCG012226F, spring washer a 6 SKU: 93110770100, oil filter SKU: 047115611A, oil level dipstick SKU: 047103635, guide tube SKU: 047115701, oil splash tube SKU: PCG115708, adapter SKU: 059115721, union SKU: 056115411A, piston SKU: 068115421, compression spring SKU: 046115419, valve housing relief valve SKU: N0438152, sealing ring a 20 x 24 SKU: N0438152, sealing ring a 20 x 24 SKU: 93110715100, bracket for oil filter SKU: 99970162140, o-ring 63,09 x 3,53 SKU: 046115579A, banjo bolt SKU: 93110715200, screw plug SKU: 90012309870, sealing ring a 42 x 49 SKU: 92810717300, compression spring SKU: 92810717202, regulator insert SKU: 92810717101, compression spring SKU: 93110712711, oil pipe oil cooler engine,SKU: 93110712712, oil pipe oil cooler engine SKU: 93110712911, oil pipe oil cooler engine,SKU: 93110712912, oil pipe oil cooler engine SKU: 99913402302, banjo bolt SKU: 99913402302, banjo bolt SKU: 90012310630, sealing ring a 18 x 24 SKU: 90012310630, sealing ring a 18 x 24 SKU: 90012310630, sealing ring a 18 x 24 SKU: 93110712501, retaining bracket SKU: 99951106602, clamp SKU: 93120705101, engine oil cooler,SKU: 93120705104, engine oil cooler SKU: 90037803001, hexagon-head bolt m 6 x 20 SKU: 056129669B, grommet SKU: 056129669B, grommet SKU: 052109135, spacer sleeve SKU: 052109135, spacer sleeve SKU: 93110715400, support SKU: 047115645, pipe clamp SKU: 90006701103, pan-head screw m 6 x 20 SKU: N02214812, nut m 6,SKU: 90007601003, nut m 6 104-005
