Engine lubrication 924 1980 - 1985 - PORSCHE

Click the image numbers to view product info

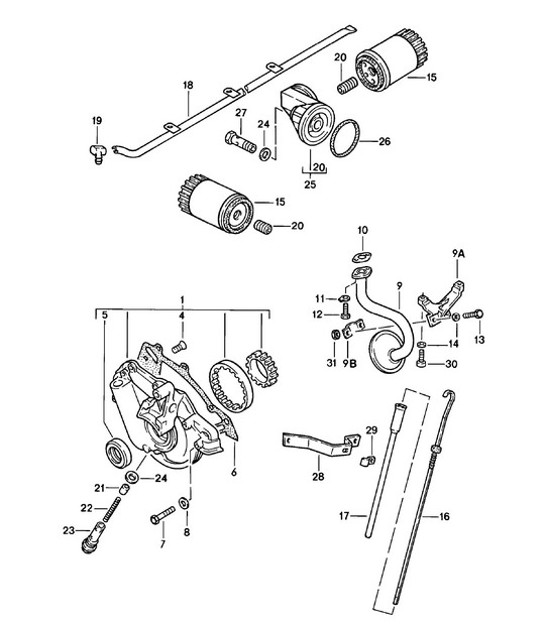

Diagram 104-000 Porsche 924 (1977-1988) Engine SKU: 046115105A, oil pump ready for installation SKU: N0331781, countersunk-head screw m 6 x 15 SKU: PCG115147, sealing ring 35 x 54 x 10 SKU: PCG115189A, gasket SKU: N0103393, hexagon-head bolt m 6 x 40,SKU: N0102213, hexagon-head bolt m 6 x 35 SKU: N0115576, washer 6,4 SKU: 047115251B, intake pipe SKU: 047115267C, retaining bracket SKU: 047115285, pipe clamp SKU: 048115257, gasket SKU: 048115259, tab washer SKU: N90057201, hexagon socket head bolt m 6 x 15 SKU: PCG010210A, hexagon-head bolt m 6 x 10 SKU: PCG012226F, spring washer a 6 SKU: 93110770100, oil filter SKU: 93110770100, oil filter SKU: 047115611A, oil level dipstick SKU: 047103635, guide tube SKU: 047115701, oil splash tube SKU: PCG115708, adapter SKU: 059115721, union SKU: 059115721, union SKU: 056115411A, piston SKU: 068115421, compression spring SKU: 046115419, valve housing relief valve SKU: N0438152, sealing ring a 20 x 24 SKU: N0438152, sealing ring a 20 x 24 SKU: 046115573A, bracket for oil filter SKU: 046115581, o-ring 62 x 3 SKU: 046115579A, banjo bolt SKU: 047115641, support SKU: 047115645, pipe clamp SKU: 90006701103, pan-head screw m 6 x 20 SKU: N02214812, nut m 6,SKU: 90007601003, nut m 6 104-000
