SPORTS Brake Disc

Zimmermann Black Coat Z Brake disc rotor - Front

Internally Vented, Slotted
Surface: Coated
Outer diameter: 330mm
Brake Disc Thickness: 34mm
Bolt Hole Circle Ø: 130mm
Centering Diameter: 98mm
Weight: 10.5kg
Hole Pitch / Number: 7/5


Porsche 996 turbo - 2001 to 2005
Porsche 996 C4S - 2001 to 2005
Porsche 997 C4S - 2005 to 2008
Porsche 997 C2S - 2005 to 2008
Porsche 997 MKII C4S - 2009 to 2012
Porsche 997 MKII C2S - 2009 to 2012
Porsche 991.2 C2 / C4 - 2016 to 2019
Porsche 991.2 C2S / C4S - 2016 to 2019
Porsche 992.1 C2 / C4 - 2019 to 2024
Porsche 718 Boxster S / GTS 2.5ltr - 2017 Onwards
Porsche 718 Cayman S / GTS 2.5ltr - 2017 Onwards

The Zimmermann Black:Z brake disc was developed by combining expertise from production brake discs with insights gained through motorsport, particularly in the VLN racing series. Featuring a unique groove pattern protected by a utility model, the Black:Z offers an optimal alternative to the perforated Sport:Z disc.

Engineered to deliver the high braking performance demanded in racing, this disc also excels in everyday road use. Like all Zimmermann products, it is manufactured exclusively from premium-quality cast materials.

The result speaks for itself, with the VLN racing team praising its performance: “The disc is amazing!”

Approved for both road and track use, the Zimmermann Black:Z is a versatile, high-performance solution for discerning drivers.

Your advantages:

• Faster brake response due to optimized water drainage
• Better wet braking performance
• Utility model protected groove pattern ensures optimal heat dissipation and thus improved braking performance
• Brake fading is avoided
• Cooler look Better appearance thanks to anti-corrosion coating Coat Z+
• Better grip and faster brake response through constant sharpening of the pads
• Replacement of the original disc 1:1 possible
• ECE R90 approved

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9963514

The product you are viewing cross references to these numbers

Zimmermann Black Coat Z Brake disc rotor - Rear

Internally Vented, Slotted
Surface: Coated
Outer diameter: 330mm
Brake Disc Thickness: 28mm
Bolt Hole Circle Ø: 130mm
Centering Diameter: 98mm


Porsche 991.2 Carrera -2017 to 2019
Porsche 992.1 Carrera 3.0ltr -  2019 to 2024
Not for cars with ceramic brake (PCCB)
Not for cars with central wheel lock

The Zimmermann Black:Z brake disc was developed by combining expertise from production brake discs with insights gained through motorsport, particularly in the VLN racing series. Featuring a unique groove pattern protected by a utility model, the Black:Z offers an optimal alternative to the perforated Sport:Z disc.

Engineered to deliver the high braking performance demanded in racing, this disc also excels in everyday road use. Like all Zimmermann products, it is manufactured exclusively from premium-quality cast materials.

The result speaks for itself, with the VLN racing team praising its performance: “The disc is amazing!”

Approved for both road and track use, the Zimmermann Black:Z is a versatile, high-performance solution for discerning drivers.

Your advantages:

• Faster brake response due to optimized water drainage
• Better wet braking performance
• Utility model protected groove pattern ensures optimal heat dissipation and thus improved braking performance
• Brake fading is avoided
• Cooler look Better appearance thanks to anti-corrosion coating Coat Z+
• Better grip and faster brake response through constant sharpening of the pads
• Replacement of the original disc 1:1 possible
• ECE R90 approved

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9P161560

The product you are viewing cross references to these numbers

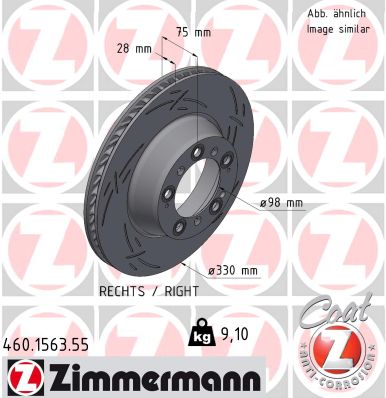

Zimmermann Black Coat Z Brake disc rotor - Rear

Internally Vented, Slotted
Surface: Coated
Outer diameter: 330mm
Brake Disc Thickness: 28mm
Bolt Hole Circle Ø: 130mm
Centering Diameter: 98mm
Weight: 9.1kg
Hole Pitch / Number: 10/5


Not for cars with ceramic brake (PCCB)
Porsche 996 C4S / turbo - 2001 to 2005
Porsche 996 GT3 / GT3 RS - 1999 to 2004
Porsche 997.1 C2S / C4S - 2005 to 2008
Porsche 991.1 C2S / C4S - 2012 to 2016
Porsche 991.2 C2S - 2016 to 2019 (for cars with central locking wheels)
Porsche 991.2 C4S  - 2016 to 2019  (for cars with central locking wheels)

The Zimmermann Black:Z brake disc was developed by combining expertise from production brake discs with insights gained through motorsport, particularly in the VLN racing series. Featuring a unique groove pattern protected by a utility model, the Black:Z offers an optimal alternative to the perforated Sport:Z disc.

Engineered to deliver the high braking performance demanded in racing, this disc also excels in everyday road use. Like all Zimmermann products, it is manufactured exclusively from premium-quality cast materials.

The result speaks for itself, with the VLN racing team praising its performance: “The disc is amazing!”

Approved for both road and track use, the Zimmermann Black:Z is a versatile, high-performance solution for discerning drivers.

Your advantages:

• Faster brake response due to optimized water drainage
• Better wet braking performance
• Utility model protected groove pattern ensures optimal heat dissipation and thus improved braking performance
• Brake fading is avoided
• Cooler look Better appearance thanks to anti-corrosion coating Coat Z+
• Better grip and faster brake response through constant sharpening of the pads
• Replacement of the original disc 1:1 possible
• ECE R90 approved

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99135240

The product you are viewing cross references to these numbers

Zimmermann FORMULA Z brake disc.

Vented, Perforated, Two-piece floating brake disc, Coated
Outer diameter: 350 mm
Brake Disc Thickness: 34 mm


Porsche 991.2 2S 4S C2S C4S FRONT
Porsche 992.1 2S 4S C2S C4S FRONT

The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

Your advantages:
• Excellent deceleration action and no distortion of friction ring at high temperatures
• Substantial weight saving and therefore less unsprung mass
• Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
• „Hot spots" prevented by optimised design of ventilation channels
• 1:1 exchange of original disc possible
• Not subject to registration: general ABE certification supplied with disc
• No conversion required for brake tuning

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9P161530

The product you are viewing cross references to these numbers
