Oil Radiators / Heat Exchangers

Radiator oil cooler bottom plate.



Fits:
Porsche 911 1984-89

Diagram Ref No 33.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020712100

The product you are viewing cross references to these numbers

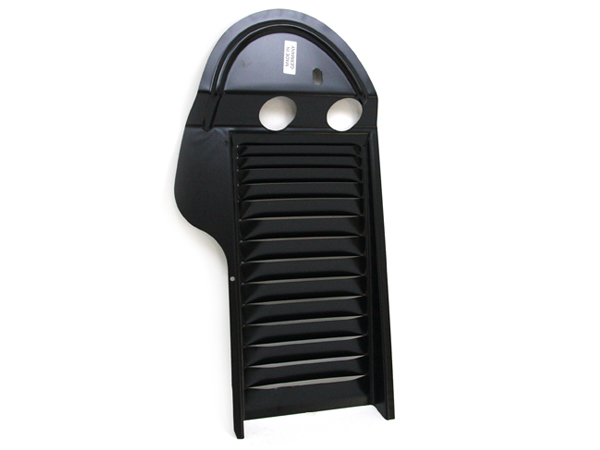

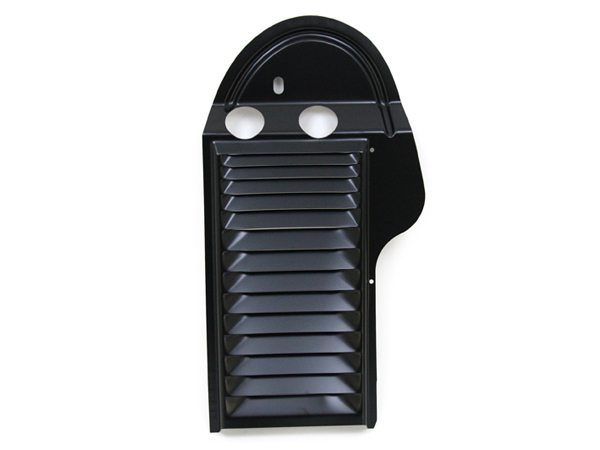

Radiator oil cooler cover plate, Front



Fits:
Porsche 911 Turbo 3.3L 1984-89
930.66 / 930.68 (Canada / USA)

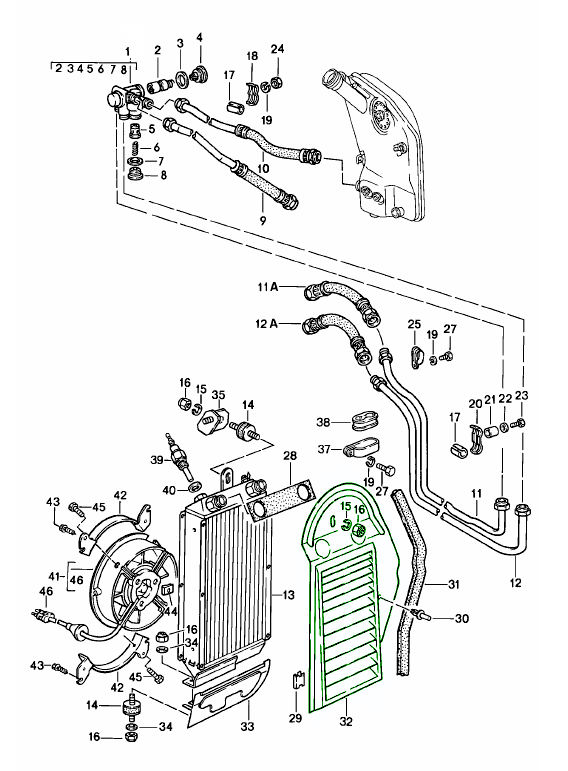

Click 'Zoom in' for large parts diagram.
Diagram Ref No 32

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020731913

The product you are viewing cross references to these numbers

Radiator oil cooler high-performance core. Porsche 911 / 911 turbo

OEM+ / High-Performance recreation of the original Behr Oil Cooler
CNC Machined mounting plate with helix design for strength and pocketed for weight savings
Modern Tube & Fin core with lower pressure drop and higher heat dissipation than the original
Stainless Steel Fittings for late model slip-on style (72-89) and early threaded style (65-71) with upgraded M30 “Widemouth” Design for improved flow
All OEM Behr features replicated on the billet mounting plate and cooler case
Comes standard with modern Cerakote titanium finish (additional heat dissipation) – modern interpretation of the OEM Behr finish
Optimized ID and flow characteristics of oil pipe for maximum oil flow through the vehicle’s oil system
Complete drop-in fit, absolutely no modifications to install

Fits:
Porsche 911 - 1972 to 1989
Porsche 911 turbo - 1975 to 1989

Diagram Ref No 8

After 2+ years of development and 4 rounds of prototypes, the world debut of the CSF Porsche 911/930 Engine Oil Cooler at Rennsport Reunion 2023 was met with resounding enthusiasm. Air-cooled enthusiasts know the struggles associated with the oil cooler located on the engine block of the old flat six motor. CSF’s highly anticipated new release is arguably the most important modern engine upgrade to be released for the 911 in years.
While the original design was effective at the time, they have not aged well. On top of that, there have been no updates to the design and original replacement units can be hard to come by. When the CSF 911 was being built, CSF realized this was a much needed part for the air-cooled community and set out to design something special.

The old original coolers aren’t the only issue though. CSF has gotten many first hand reports of brand new OE coolers from Porsche’s revamped “Porsche Classic” Catalogue leaking within a few months of installation. Apparently the new items available from Porsche are not built as well as the original Behr coolers. CSF has now brought to market a modern OEM+ solution to this vintage design.

The high-performance core uses 7 cooling tubes with 8 rows of fins. Between the ultra efficient fin design and high flow tubes, the CSF cooler is ~10% more efficient than a brand new OE unit and up to 25% more efficient than a used unit.

Because the base plate of the cooler is also a common problem area, CSF sought to improve this area as much as possible. Instead of the original cast design, the CSF cooler uses a CNC machined billet aluminum plate. This offers a perfectly flat mounting surface which is both stronger and more resistant to warping over time. You’ll also notice a special helix design which adds strength while keeping weight at a minimum.

Each unit is Individually Leak and Pressure Tested with a 10 year warranty
New OEM coolers from Porsche are extremely scarce/hard to source and cost $1,300+

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110704102

The product you are viewing cross references to these numbers

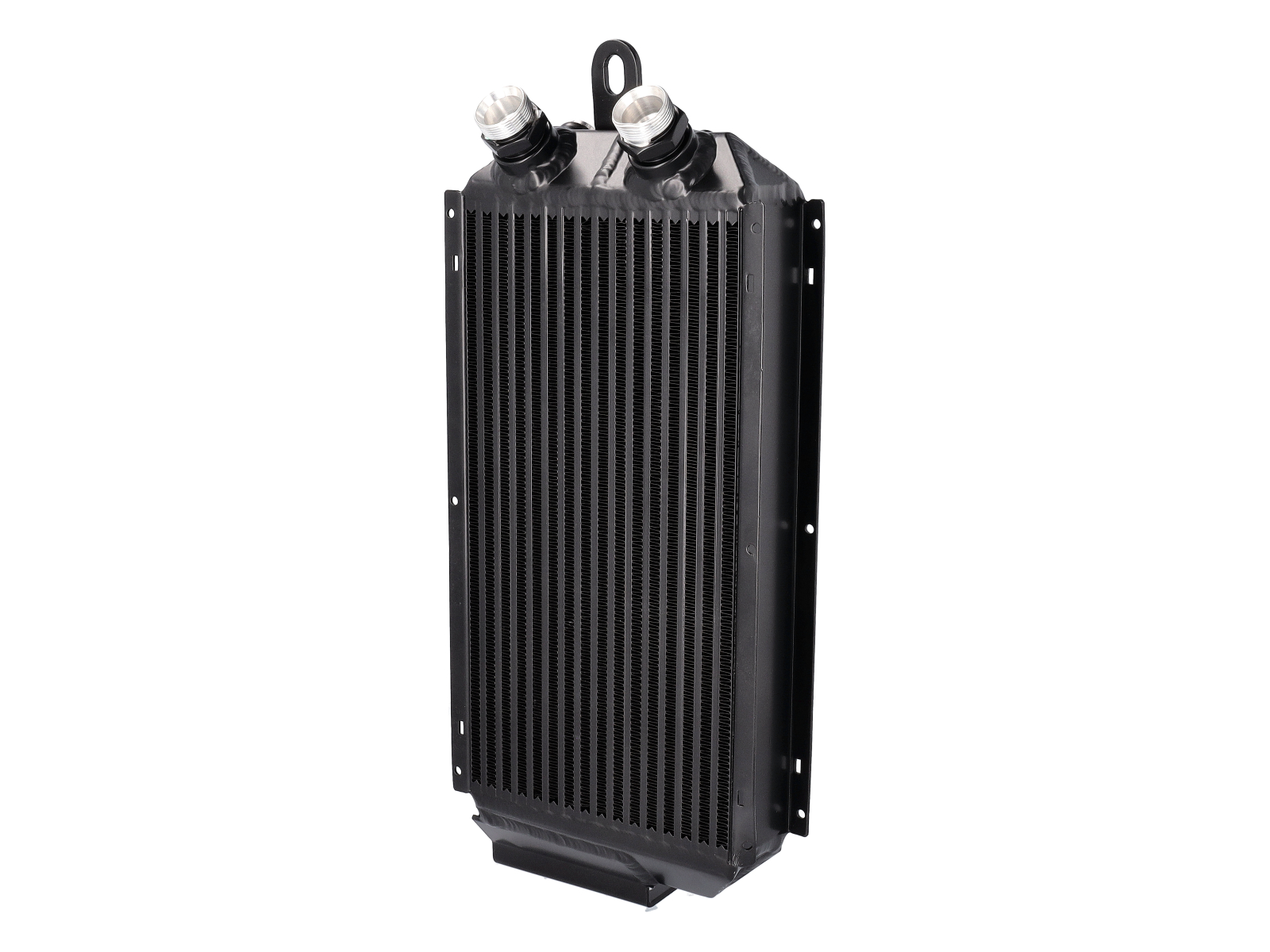

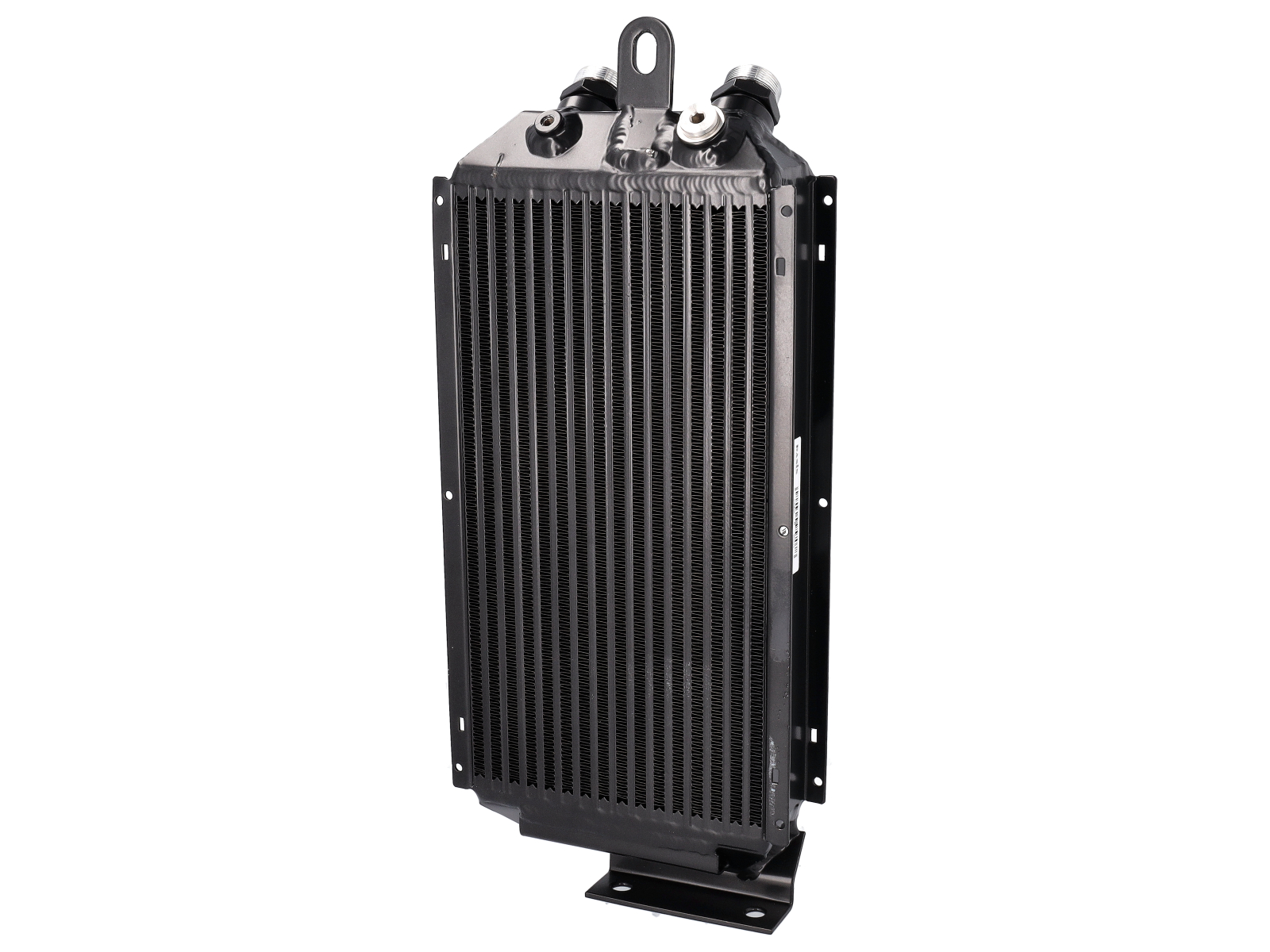

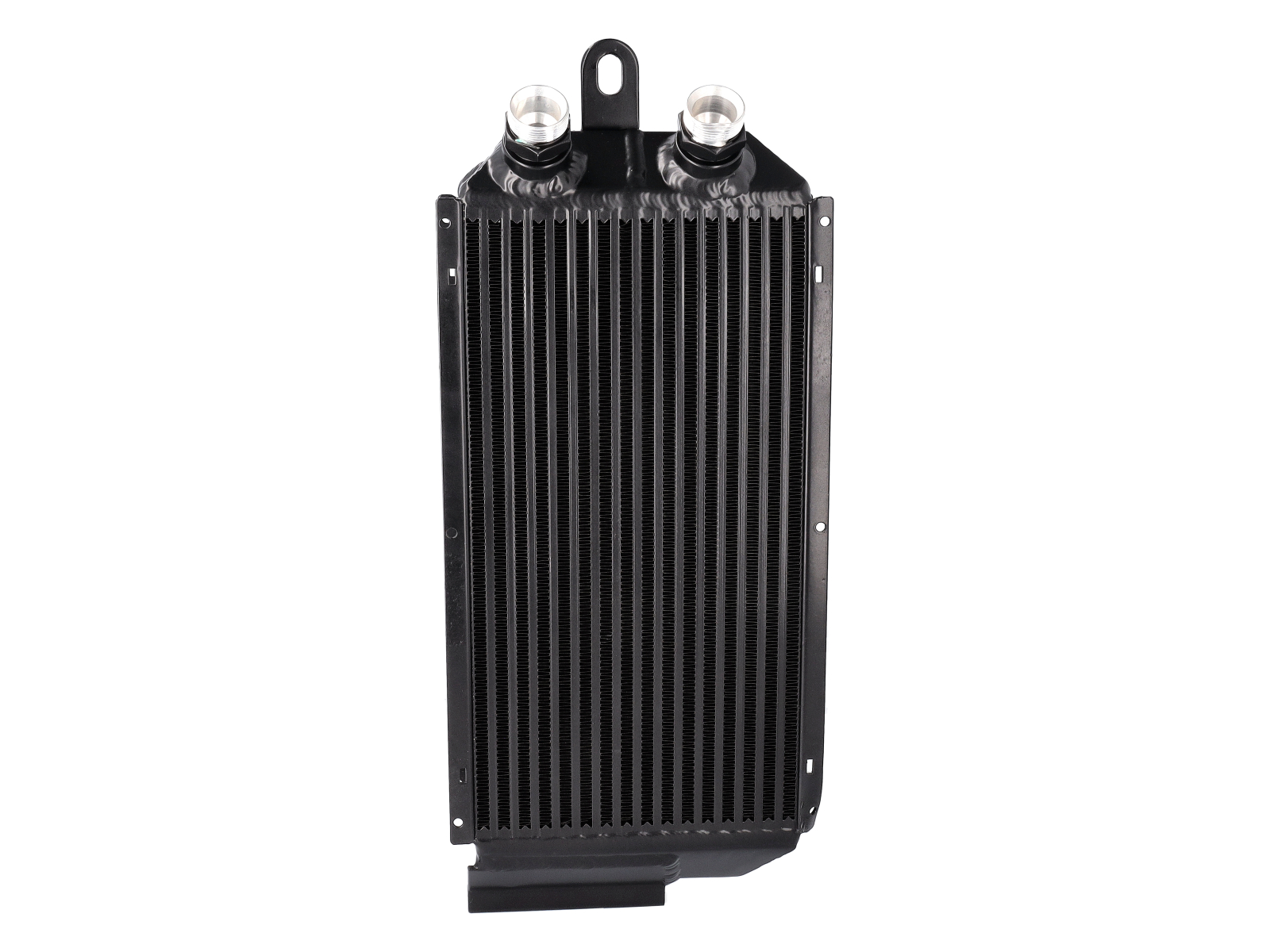

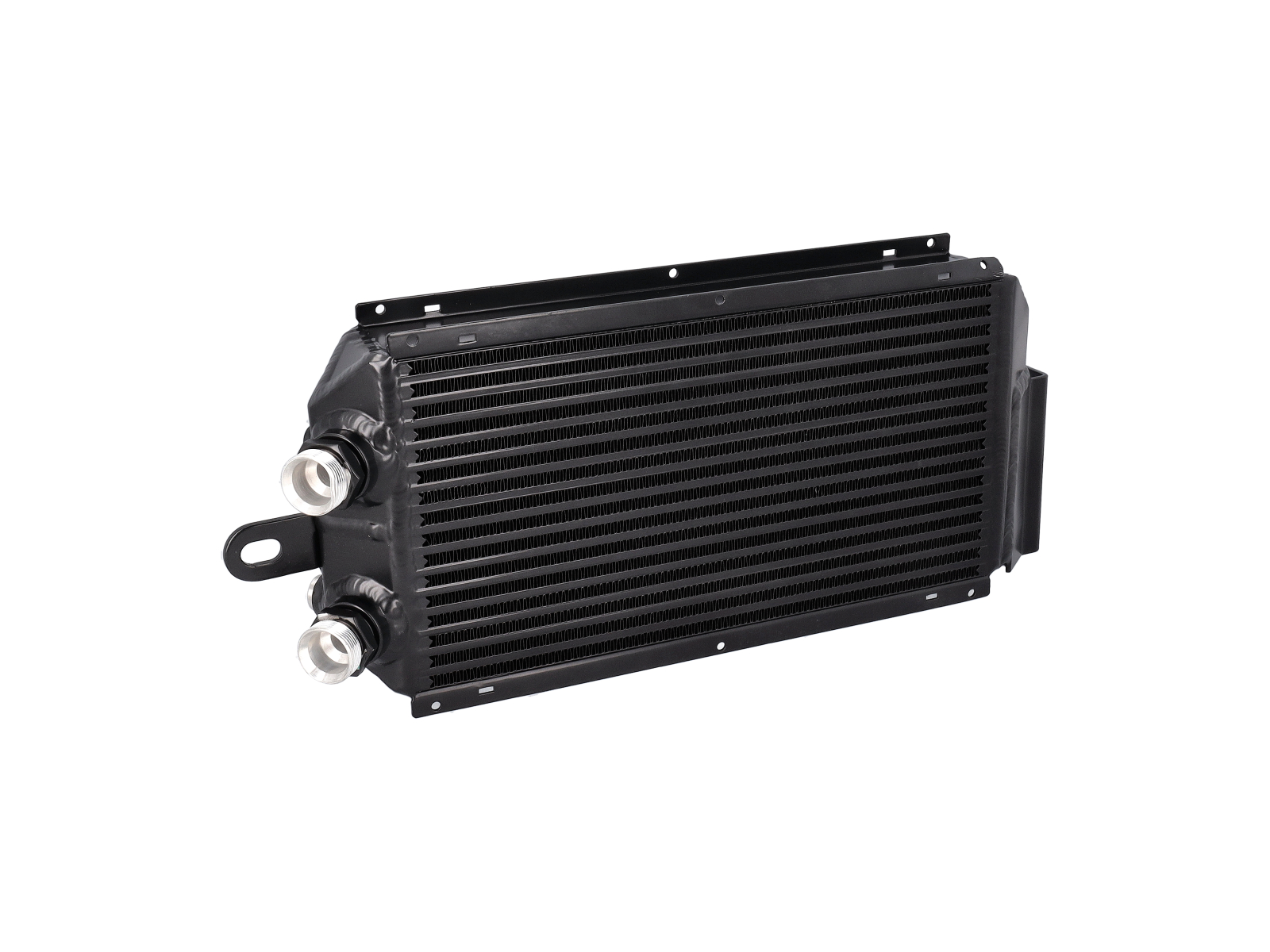

Radiator oil cooler, Front.
High-Performance Core Technology
50mm Core vs. OEM 45mm
15 Rows of Turbulated Tubes, 16 Rows of Fins (Same as OEM Spec)
Innovative Square Fin Design (Stronger, Better Performance, Less Clogging)
~10% Better Performance (Wind Tunnel Tested)
No Increase in Pressure Drop

Fits:
Porsche 911 3.2L / 3.0L 1984-89 - Direct Fit
Porsche 930 3.3L - Direct Fit
Porsche 911 / 930 1965 - 1983 Retrofit Capable

Diagram Ref No 13

Cross reference numbers
93020705302, 93020705304

CSF is proud to announce the release of its highly anticipated Porsche 911/930 Turbo right fender oil cooler. CSF's new release brings OEM tier-1 quality, innovative features, and value to the platform's replacement and performance aftermarket (directly replaces OEM part number 930 207 053 02 and 930 207 053 04).

A close-up of the high-performance CSF core vs. a 35+ year old oil cooler that it is replacing. CSF's core has an innovative square fin design which helps alleviate clogging. It also increases performance and strength due to more surface area contact with the tubes.
M30 x 1.5 High-Flow Fittings
OEM Style, Machined In-House
17.5mm ID "Widemouth" Design vs. 14.5mm ID of the OEM Fittings
Stainless Steel w/ Copper Crush Washer for Increased Strength and Durability vs. OEM Mild Steel
Deeper Plunge for More Volume
50% Greater Flow Capacity for Maximum Performance
Comparison between CSF's high-flow fittings w/ 17.5mm ID widemouth design vs. the OEM 14.5mm ID design
M22 x 1.5 Inlet/Outlet Connections
Internal Radius for Maximum Flow
Optimized to Also Accept AN-16 Connections for Increased Versatility and Setup Configurations
CSF's M22 x 1.5 inlet/outlet feature improved internal radius connections for maximum flow of oil into and out of the oil cooler.
Temperature Sender Combination Mounting Boss
Three Fittings Included
Threaded Plug (For Use With No Fan)
M14 x 1.5P Adapter (For Use With OEM Fan)
3/8-18 NPTF Adapter (For Use With SPAL/Modern Fan)
1/2-14 NPTF design to accommodate the included three fittings

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020705304

The product you are viewing cross references to these numbers

Radiator Oil Cooler Rubber Buffer.
3 per car. Price shown is for each



Fits:
Porsche 911 1984-89

Click 'Zoom in' for large parts diagram.
Diagram Ref No 14.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020723902

The product you are viewing cross references to these numbers

Radiator Oil Cooler Rubber Buffer.
3 per car. Price shown is for each



Fits:
Porsche 911 1984-89

Click 'Zoom in' for large parts diagram.
Diagram Ref No 14.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020723902

The product you are viewing cross references to these numbers

Radiator Oil Cooler Rubber Gasket.



Fits:
Porsche 911 1984-89

Click 'Zoom in' for large parts diagram.
Diagram Ref No 31.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020735300

The product you are viewing cross references to these numbers

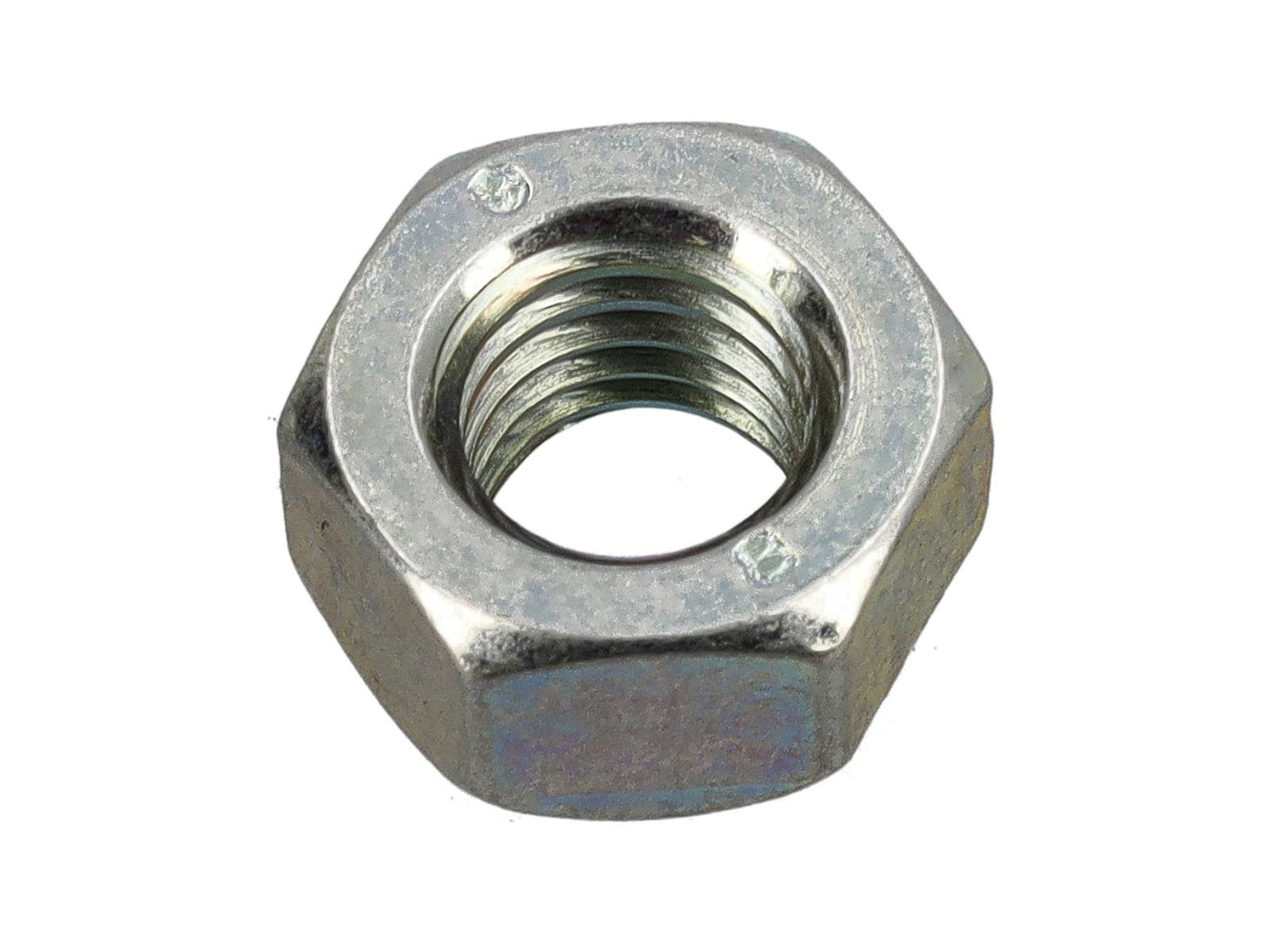

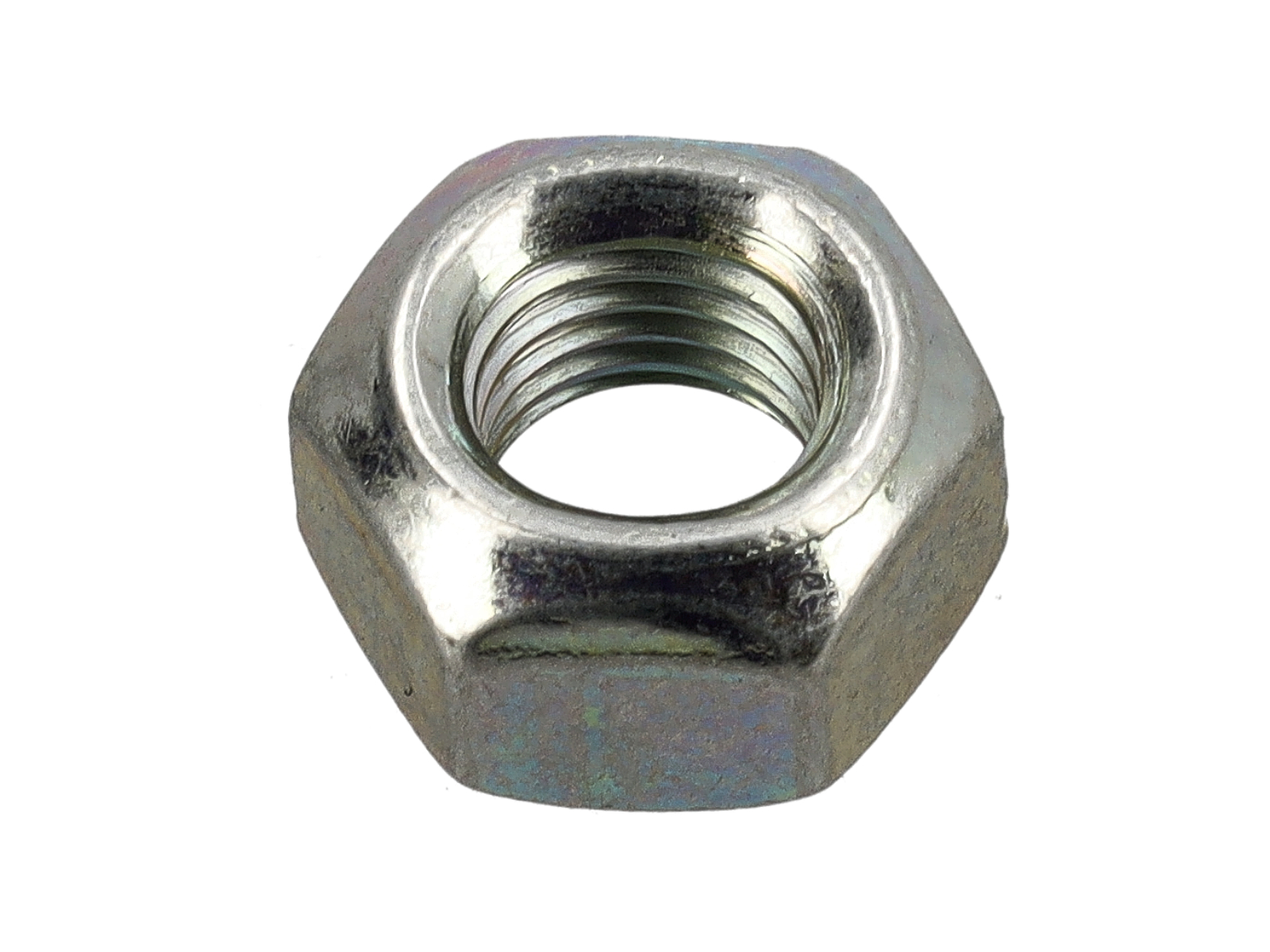

Radiator Oil Cooler Rubber Mount Lock nut.



Fits:
Porsche 911 1980>>

Click 'Zoom in' for large parts diagram.
Diagram Ref No 13D

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PCG91002202

The product you are viewing cross references to these numbers

Radiator Oil Cooler Rubber Mount washer 8,4.



Fits:
Porsche 911 1980>>

Click 'Zoom in' for large parts diagram.
Diagram Ref No 13C

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90002500703

The product you are viewing cross references to these numbers

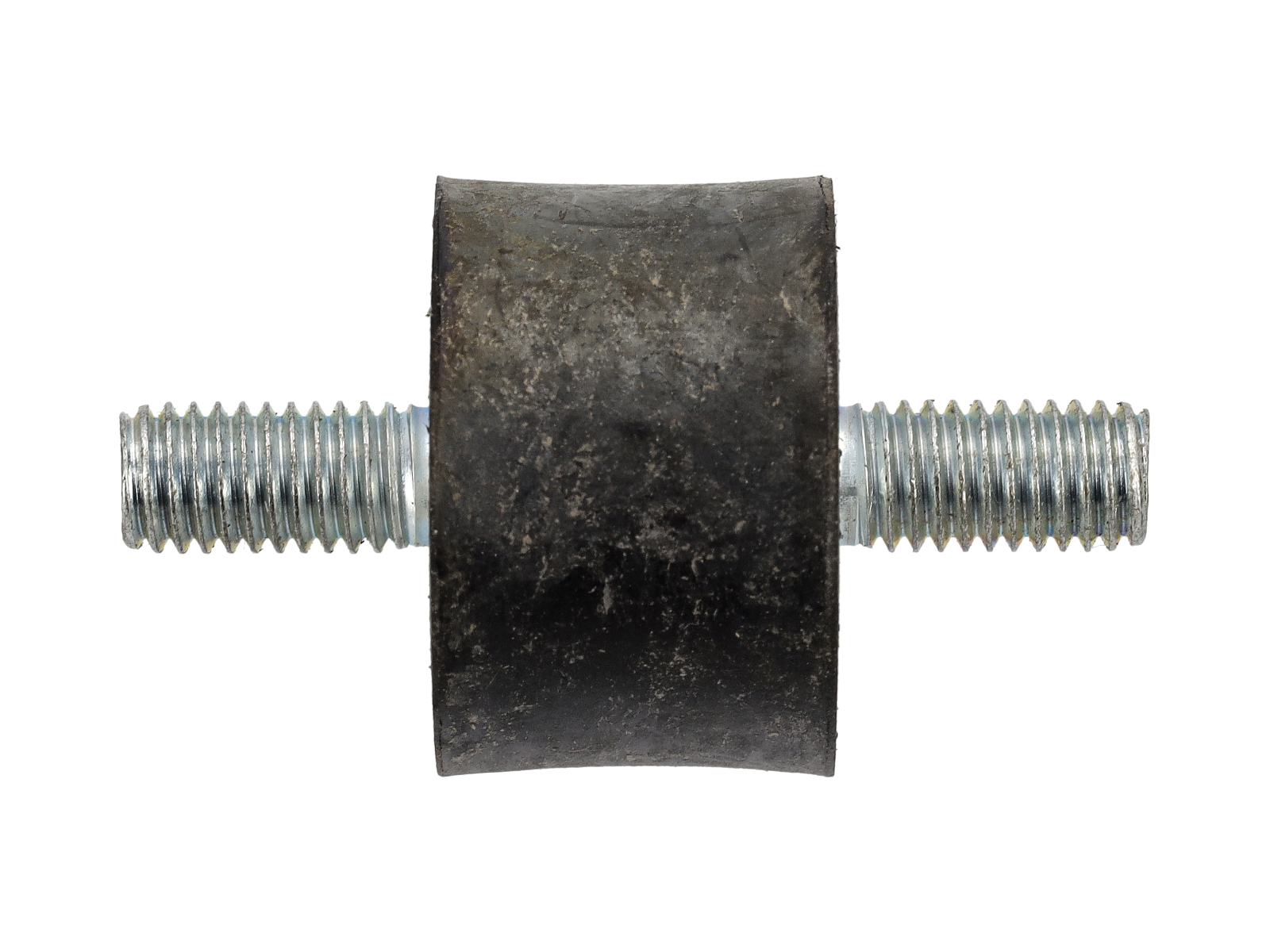

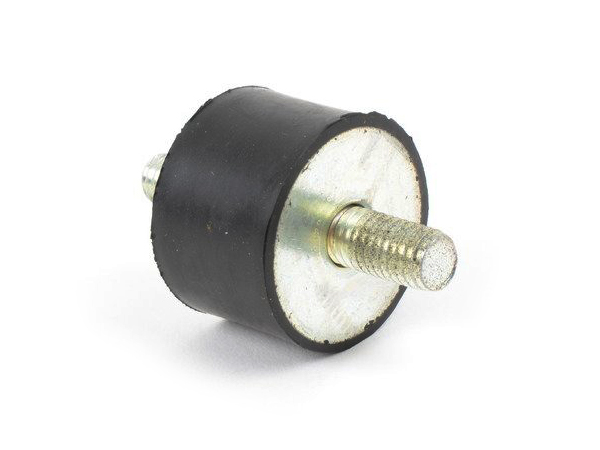

Radiator oil cooler rubber mount .



Fits:
Porsche 911 1978-89

Click 'Zoom in' for large parts diagram.

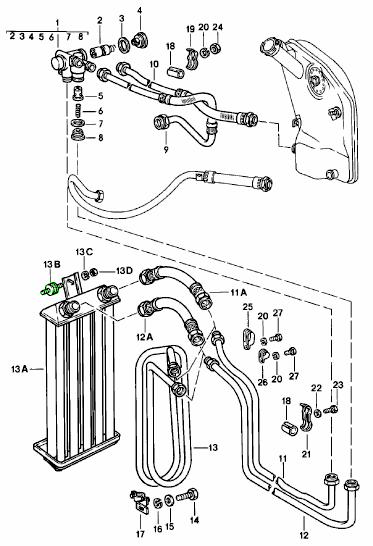

Diagram Ref No 13B

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99970326300

The product you are viewing cross references to these numbers

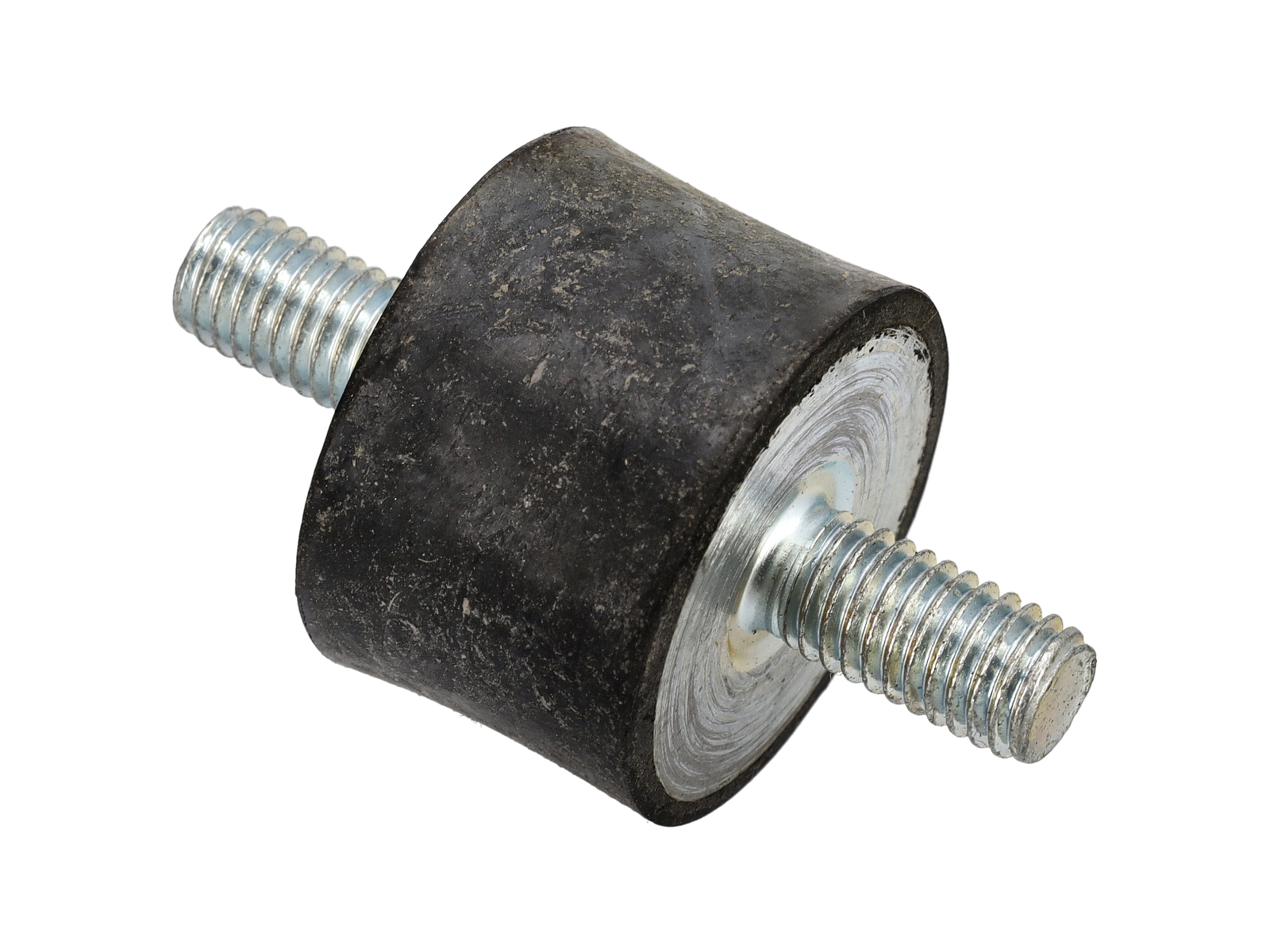

Radiator oil cooler rubber mount.



Fits:
Porsche 911 1978-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 13B

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99970326300

The product you are viewing cross references to these numbers

Radiator Oil Cooler Top Gasket.



Fits:
Porsche 911 1984-89

Click 'Zoom in' for large parts diagram.
Diagram Ref No 28.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020736100

The product you are viewing cross references to these numbers

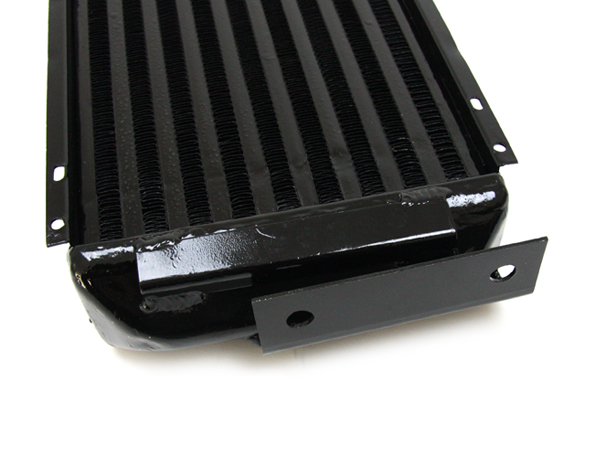

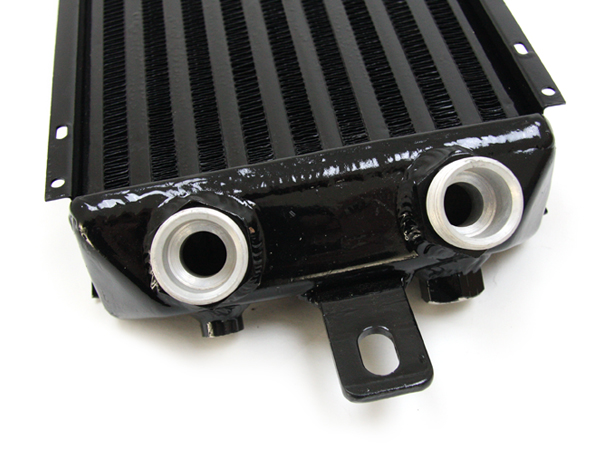

Radiator oil cooler, Front

Fits:
Porsche 911 3.2L / 3.0L 1980-89

Porsche 911 3.3L Turbo 1980-89

When you add the cooler to your basket you will have an option to select temperature sensor or the blanking plug (and washer)
Please add as and when required. The cooler doesn't come with either of the options included.

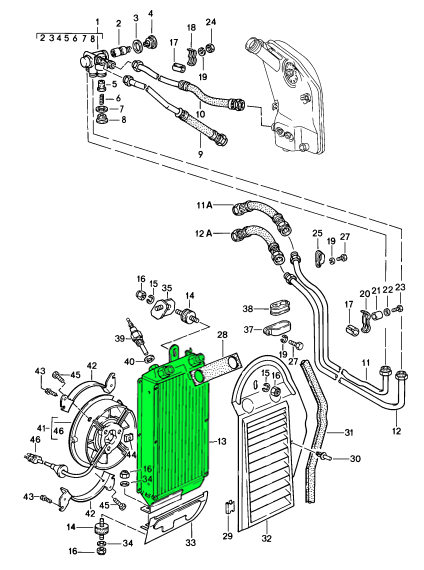

Diagram Ref No 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93020705304

The product you are viewing cross references to these numbers

Retaining Bracket, For Oil Cooler Fan.
x2 Required Per Car, Price Shown Is For One.

Fits:
Porsche 911 1984>>1989

Diagram Ref No 42

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91162410400

The product you are viewing cross references to these numbers

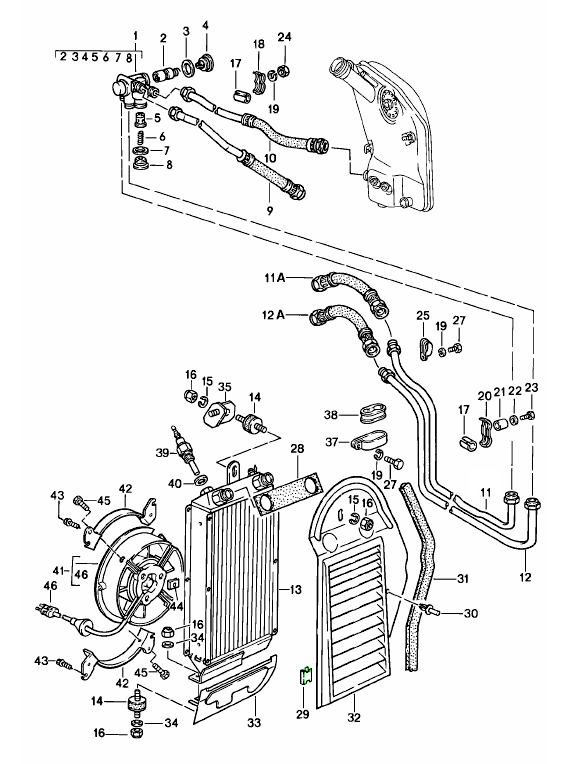

U-clamp for oil cooler cover plate.



Fits:
Porsche 911 1984-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 29

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99992000501

The product you are viewing cross references to these numbers

Universal dual-pass oil cooler with direct fitment for Porsche 911 center front oil cooler (RS Style).
M22 x 1.5 connections - 24'L X 5.75'H X 2.16'W



RS style bar and plate oil coolers for air-cooled Porsche 911/930 models (up to 1989). This oil cooler is a direct-fit performance replacement for the original Porsche items but they can also be used as heavy duty universal units!

Product Features

• Heavy duty bar/plate core
• New Aero-flow bar design for low mass, strength and maximum airflow through the core
• Satin Black finish for protection against corrosion and debris
• Triangular flush mounting bolts on both top & bottom (M8x1.25)
• Slight 15 degree angle for connections (M22x1.5 female) with tapered, cast end-tanks
• 609mm Length x 54.6mm Width x 146mm Height

Cross reference numbers
91110705101

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8110

The product you are viewing cross references to these numbers
