Oil Pipes & Hoses


Fits:
Porsche 911 - 1972
Porsche 911 - 1969 to 1989
Please note
For cars (1969 to 1973) the 1974-1989 style factory external oil thermostat must be used
Our proprietary design finned oil lines directly replace the factory lines that connect the external thermostat to the front fender mounted oil cooler.
Elephant Racing Purge Valve
No more partial oil changes. Built-in valve lets you evacuate the oil cooler and lines using compressed air. A quick blast forces dirty oil from the lines and cooler into the oil tank. Removes 1-2 quarts the engine and tank drain plugs leave behind.
Brass construction for corrosion resistance and full-flow high-quality fittings make Elephant Racing oil lines the choice solution. The lines are formed perfectly – just like OEM.
- Substantial temperature reduction
- Purge valve clears dirty oil from system
- Easy bolt-on installation
- No duct work, sits in air stream under car
- OEM Fit
- Light weight
As shown in the cutaway, cooling fins are formed directly on the oil lines. The fins yield a four-fold increase in heat-dissipating surface area. The combined length of two lines is about 17 feet and with fins they become a giant oil cooler.
Our proprietary finned oil lines dissipate more heat.
A true bolt-in replacement that connects directly to the factory fittings, they can be used in combination with factory or aftermarket fender and valance mounted coolers.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93020704646
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)


Specialty pipe interchanges with 3A and connects 1973-89 oil tank to thermostat. Provides maximum clearance for fitting wide tires. Unlike the factory line that passes between the tire and the inner wheel well, this line arches above the tire to give superior tire clearance. The critical area between tank and tire is a purpose-formed hard line for maximum clearance.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
0200000
The product you are viewing cross references to these numbers
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)

Fits:
Porsche 911 (930) Turbo 1987-89
Diagram ref. 10.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93010738907
The product you are viewing cross references to these numbers
- Porsche 911 1978-1989 3.3L Turbo (930)

Flows length of car.

Fits:
Porsche 911 from model 1987 on
Click 'Zoom in' for large parts diagram.
Diagram Ref No 12
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93020704504
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1978-1989 3.3L Turbo (930)


Fits:
Porsche 911 1970-89
Porsche 964 1989-94
Click 'Zoom in' for large parts diagram.
Diagram Ref No 17.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
96420730200
The product you are viewing cross references to these numbers
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93


Fits:
Porsche 911 2.2-3.3 08/69-07/89
Porsche 964 3.3-3.6 12/88-06/94
Click 'Zoom in' for large parts diagram.
Diagram Ref No 17.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
96420730200
The product you are viewing cross references to these numbers
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93

Oil backflow prevention kit.
Sold as a complete kit. 1 necessary per car.
This oil backflow kit incorporates a check valve between the oil tank and engine which prevents smoking on start up for 911 and 930 models from 1973-89.
The issue is due to the oil tank sitting higher than the engine oil pump. Gravity creates a positive pressure on the pump and slowly fills the engine case with time. Once the car is started, the cars smokes heavily
Our complete kit includes a model specific check valve with upgraded suction hoses and stainless-steel clamps ready for installation.
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)


Fits:
Porsche 911 2.7RS / 2.8 RSR - 1973
Porsche 911 G-Body backdates - 1974 to 1989
Kit Includes
Front bumper centre oil cooler
Oil cooler mounts, brackets and screws
Oil cooler pipe x 2
Oil pipe connector x 2
Modification and welding is required to the trunk front section.
The centre oil cooler can be added to the existing front wing oil cooler circuit.
Dimensions:
Total width (without connectors) = 58 cm
Height with connecting support: 12 cm
Depth: = 6,3 cm.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
11F-R130
The product you are viewing cross references to these numbers
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)


Fits:
Porsche 911 1984-89
Click 'Zoom in' for large parts diagram.
Diagram ref no 38
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93020726501
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1978-1989 3.3L Turbo (930)


Fits:
Porsche 911 1984-89
Click 'Zoom in' for large parts diagram.
Diagram ref no 38
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93020726501
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1978-1989 3.3L Turbo (930)

Made from high quality silicone rubber with 3 layer polyester reinforcement.

To Fit:
Porsche 911 (930 Turbo) 1978 to 1989 all models with 3.3 Turbo engine
Hoses included:
• Top connection oil separator / oil filling tube / air filter box - OEM ref 93010739504 / 93010799500
• Middle connection oil separator - OEM ref 93010739100
• Bottom connection oil separator - OEM ref 93010738904
• Bottom connection oil separator to oil tank *** - OEM ref 93010738906
• Breather hose cylinder head *** - OEM ref 93010739701
• Oil cooler /oil tank - OEM ref 93010723302
• Venting hose Turbo oil tank to / filter box - OEM ref 93010739402 / 99923600750 / 00004320495
*** The factory pressed hose clamps needs to be cut on these hoses and reuse the hose connection and the steel pipe. They are installed on the new silicone hoses with regular hose clamps. See large images for more details ***
Please refer to the product images for confirmation of position of the hoses.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
KIT141S
The product you are viewing cross references to these numbers
- Porsche 911 1978-1989 3.3L Turbo (930)

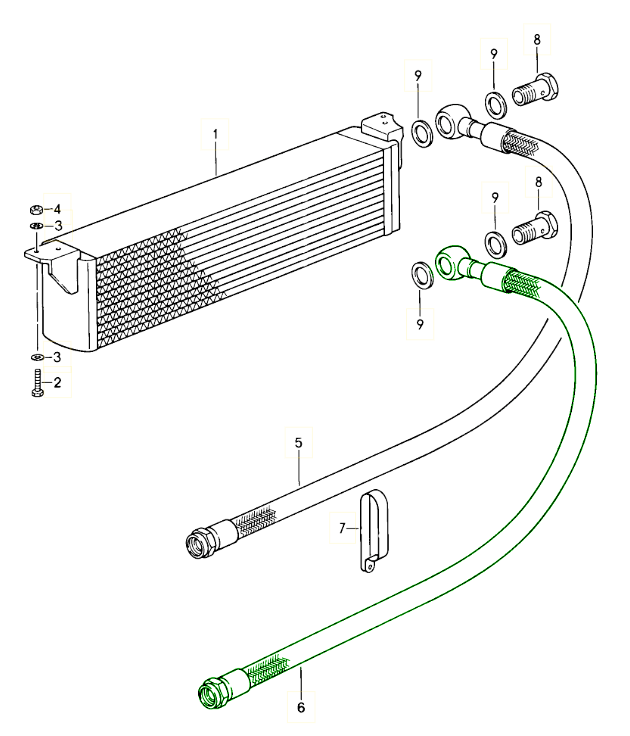

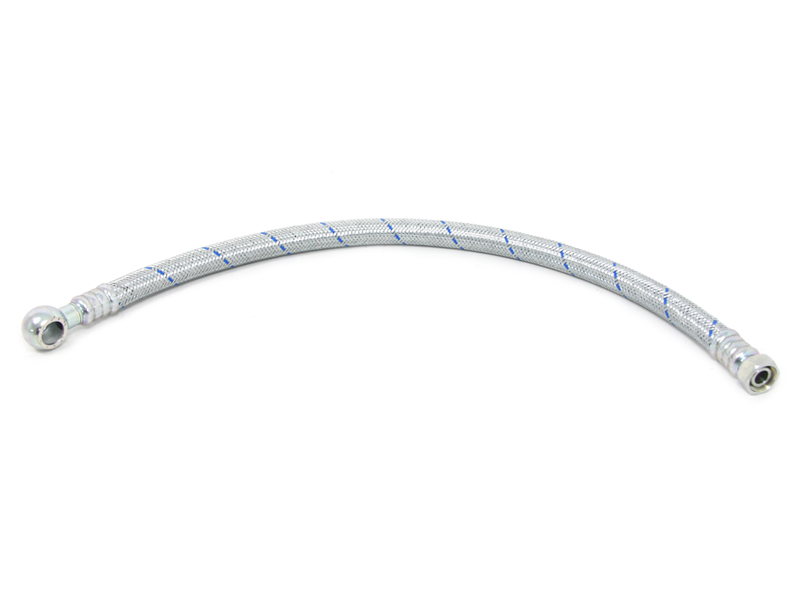

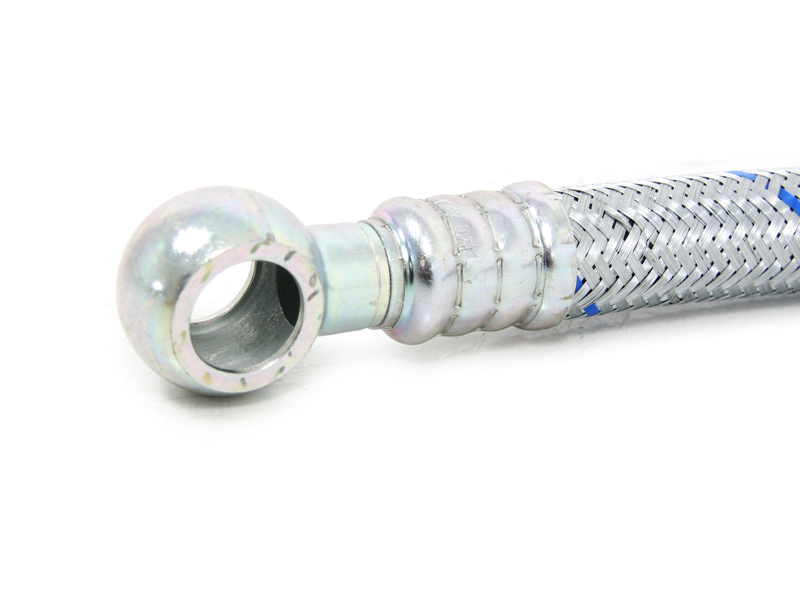

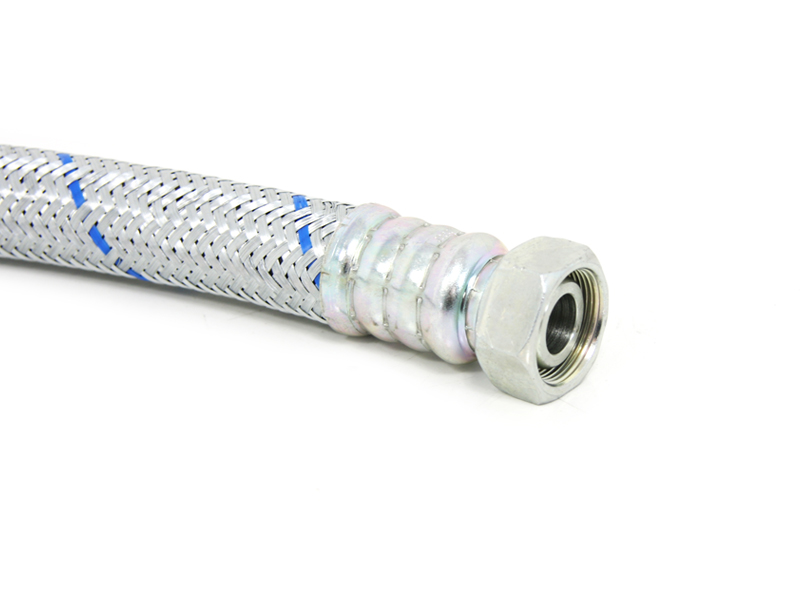

Fits:
Porsche 911 Turbo 1988-89
Special model flatnose design
Click 'Zoom in' for large parts diagram.
Diagram ref no 6
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93010791201
The product you are viewing cross references to these numbers
- Porsche 911 1978-1989 3.3L Turbo (930)


To Fit:
For Oil hoses clamp kit #KIT141S
Porsche 911 (930 Turbo) 1978 to 1989 all models with 3.3L Turbo engine
Kit of 15 clamps
The kit contains all necessary hose clamps to install the specified hose kit. The included clamps are a high quality standard design type in all stainless steel (W4 class) with a stamped band to minimize impact on hose surface.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
CLAMP-KIT141
The product you are viewing cross references to these numbers
- Porsche 911 1978-1989 3.3L Turbo (930)


Fits:
Porsche 911 1984-89
Porsche 964 1989-94
Porsche 993 1995-98
Click 'Zoom in' for large parts diagram.
Diagram ref no 10
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99951116202
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97

Fits:
Porsche 911 TURBO (930) 3.3L 1978-89
Diagram ref no 9
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93010774316
The product you are viewing cross references to these numbers
- Porsche 911 1978-1989 3.3L Turbo (930)

Fits:
Porsche 911 TURBO (930) 3.3L 1978-89
Diagram Ref No 9
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93010774316
The product you are viewing cross references to these numbers
- Porsche 911 1978-1989 3.3L Turbo (930)
