Crankcase Parts

Crankcase Stud. M 10 x 140. RIGHT.



Fits:
Porsche 911 1978-89 Turbo
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 Turbo / GT3
Porsche 997 Turbo / GT3 2007>>

This product supersedes Porsche's old part number:
- 99906222502

Click 'Zoom in' for the large parts diagram.
Diagram ref no 2.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90006009501

The product you are viewing cross references to these numbers

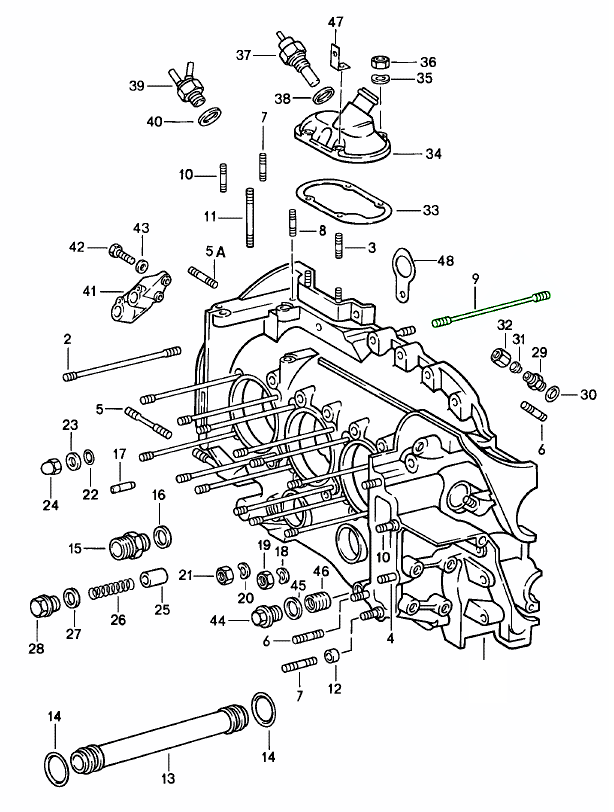

Crankcase stud. Left.



Fits:
Porsche 911 1974-89
Porsche 930 1975-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 9

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010117404

The product you are viewing cross references to these numbers

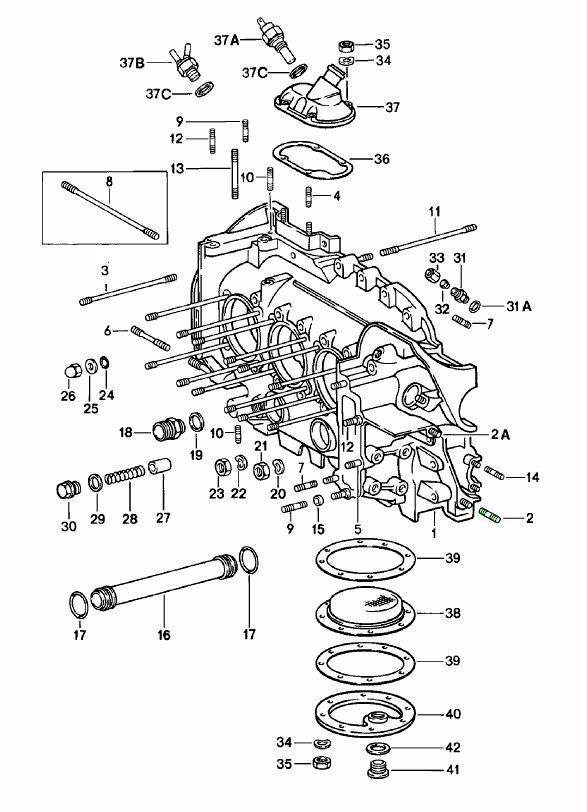

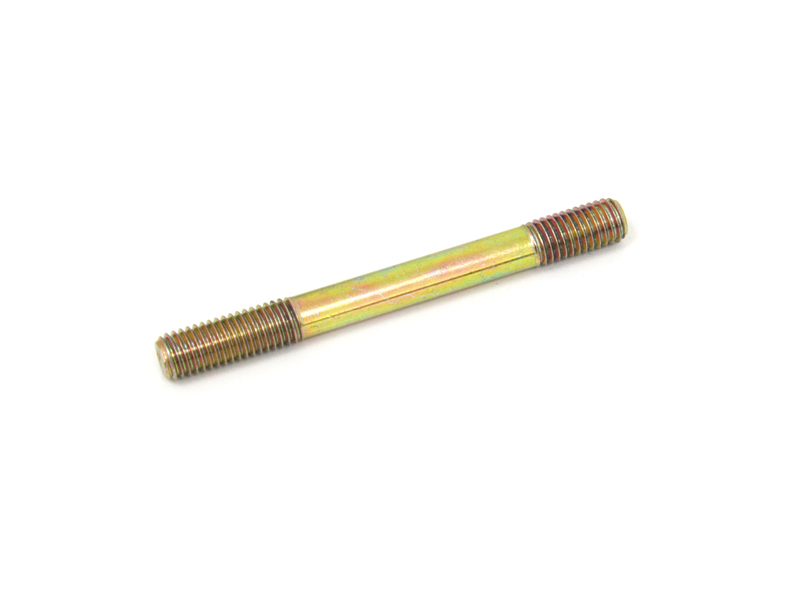

Crankcase stud. M 10 x 80.



Fits:
Porsche 911 Turbo 1978-83
M >> 63D 4069
M >> 64D 3716
M >> 63D 8154
M >> 67D 0711

Click 'Zoom in' for large parts diagram.
Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99906206002

The product you are viewing cross references to these numbers

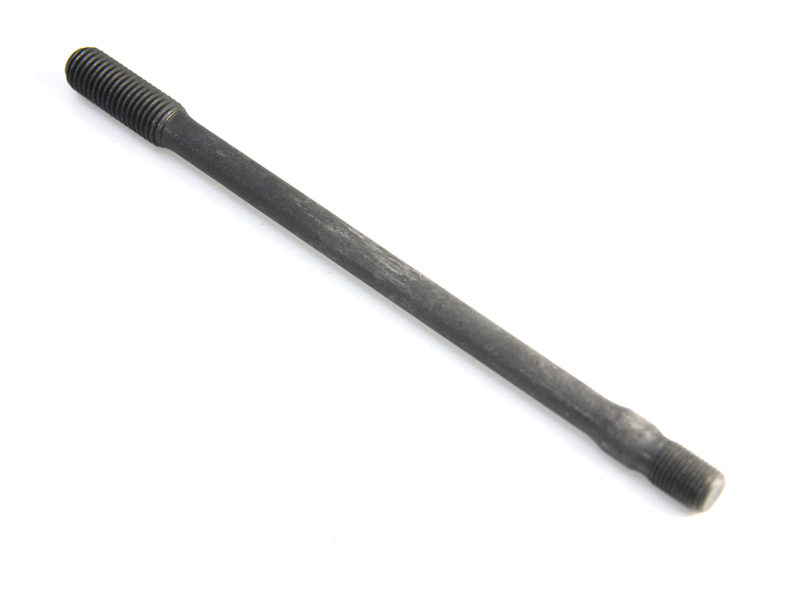

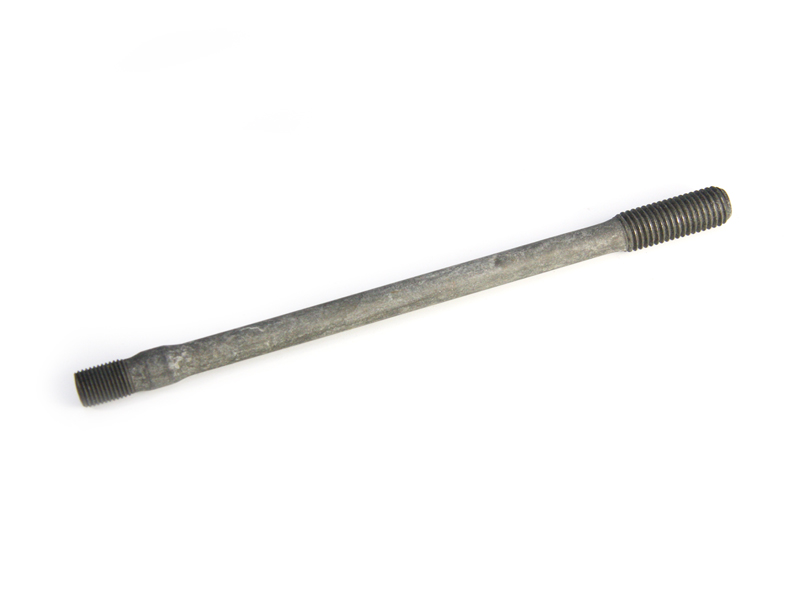

Crankcase through bolt.



Fits:
Porsche 911 Carrera 3.0L 1974-77
Porsche 911 1978-89
Porsche 911 (930) Turbo 1975-79

Click 'Zoom in' for large parts diagram.
Diagram ref no 20

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010117306

The product you are viewing cross references to these numbers

Crankcase through bolt.



Fits:
Porsche 911 Carrera 3.0L 1974-77
Porsche 911 1978-89
Porsche 911 (930) Turbo 1975-79

Click 'Zoom in' for large parts diagram.
Diagram ref no 20

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010117306

The product you are viewing cross references to these numbers

Stomski Racing SR124 Engine case splitter for Porsche 911



No more hammering, chiseling, swearing, heating, prying or praying to get an 911 engine case apart. STOMSKI RACING'S SR124 ELEGANTLY and GENTLY separates the engine case halves and not only shortens the process of engine tear-down, but it also protects what doubtlessly is an expensive asset- the engine case itself. The rare #s matching early 911S sand-cast aluminum case, or the impossible to find 911 GT3 RSR case, or the early magnesium case that seems so fragile, all can NOW be protected from the threat of the block of wood and lead hammer, or the torch, or the pry-bar and chisel.
SR124 includes a CNC precision machined aluminum platform that you bolt to four head studs (ideally over #2 or #5) using the included thumbscrews. An over-sized drive-screw (stainless steel) is then threaded through the platform to mate with a high-load bearing in our specially designed rod cap that presses against the wrist pin of #2 or #5 connecting rod that is at bottom-dead-center. As you slowly use a wrench or ratchet to tighten the drive-screw, the torque of the SR124 splitter is evenly distributed through the entire crankshaft, pressing against ALL 8 main bearings. Once the slack is taken up, only GENTLE effort on the drive screw is required to split even the most belligerent of cases.
The SR124 platform is designed to work on all Mezger 911s (2.0 through 997) and includes Delrin inserts/sleeves that protect the head studs from scratches or dings.

Engine crankcase stud, BM8FO x 22.
Sold each.



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 Turbo 2001-05
Porsche 996 GT3 3.6L 1999-05
Porsche 997.1 Turbo 2007-09
Porsche 997 GT3 3.6L 2006-09
Porsche 914-6 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90006010601

The product you are viewing cross references to these numbers

Engine crankcase stud, BM8FO x 22.
Sold each.



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 Turbo 2001-05
Porsche 996 GT3 3.6L 1999-05
Porsche 997.1 Turbo 2007-09
Porsche 997 GT3 3.6L 2006-09
Porsche 914-6 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90006010601

The product you are viewing cross references to these numbers

Engine crankcase stud, M8 x 52. RIGHT.
Sold each.



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 Turbo 2001-05
Porsche 996 GT3 3.6L 1999-05
Porsche 997.1 Turbo 2007-09
Porsche 997 GT3 3.6L 2006-09
Porsche 914-6 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 11

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90006010201

The product you are viewing cross references to these numbers

Engine oil sump plug washer.



Fits:
Porsche 911 1965-89

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90012301130

The product you are viewing cross references to these numbers

Engine Oil Sump Plug.



Fits:
Porsche 911 1965-83
Porsche 928 1978 Only

Click 'Zoom in' for large parts diagram.
Diagram ref no 41

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110717603

The product you are viewing cross references to these numbers

Piston / case squirter cleaner for Porsche 911



At last an easy way to clean and check the case/piston squirters on 911 cases. Use this precise tool with compressed air and your air gun to force the squirters open and clean them out. This tool seals the galley off at each end and allows the air to be pushed through the squirter orifice. No need to remove/replace squirters or guess whether they are clear.

Anodized aluminum/brass.

Available with or without an air gun.

Gasket for intermediate shaft (IMS) cover plate.

Please check the part number of your IMS cover plate to ensure compatibility. This gasket is designed for plates with part numbers 91110516200 and 91110516201.

Fits:
Porsche 911 1965-1982
Porsche 911 Turbo (930) 1975-82
Porsche 914-6 1970-72

Porsche 911 SC 1983*
Porsche 911 Turbo (930) 1983*

Diagram ref. 49.

*NOTE: Midway through the 1983 model year, Porsche changed the IMS cover plate from a three-nut design to a two-nut circular cover. If your vehicle has the circular cover, an O-ring is used instead of this gasket. Please see below for more information:

This gasket (three-nut design) is compatible with 1983 SC models with an engine number up to and including: 63D 4069 (Standard models), 64D 3716 (US/Canadian market), and 63D 8154 (Japanese market). For 911 Turbo models, this gasket fits engines with numbers up to and including 67D 0711 (all markets).

Given the age of these vehicles, engine swaps or modifications are common. We strongly recommend verifying which cover is fitted to your engine before ordering. If your cover plate is larger with three holes, this gasket will fit. If your cover plate is smaller, circular, with two holes, this gasket will not fit.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010519801

The product you are viewing cross references to these numbers

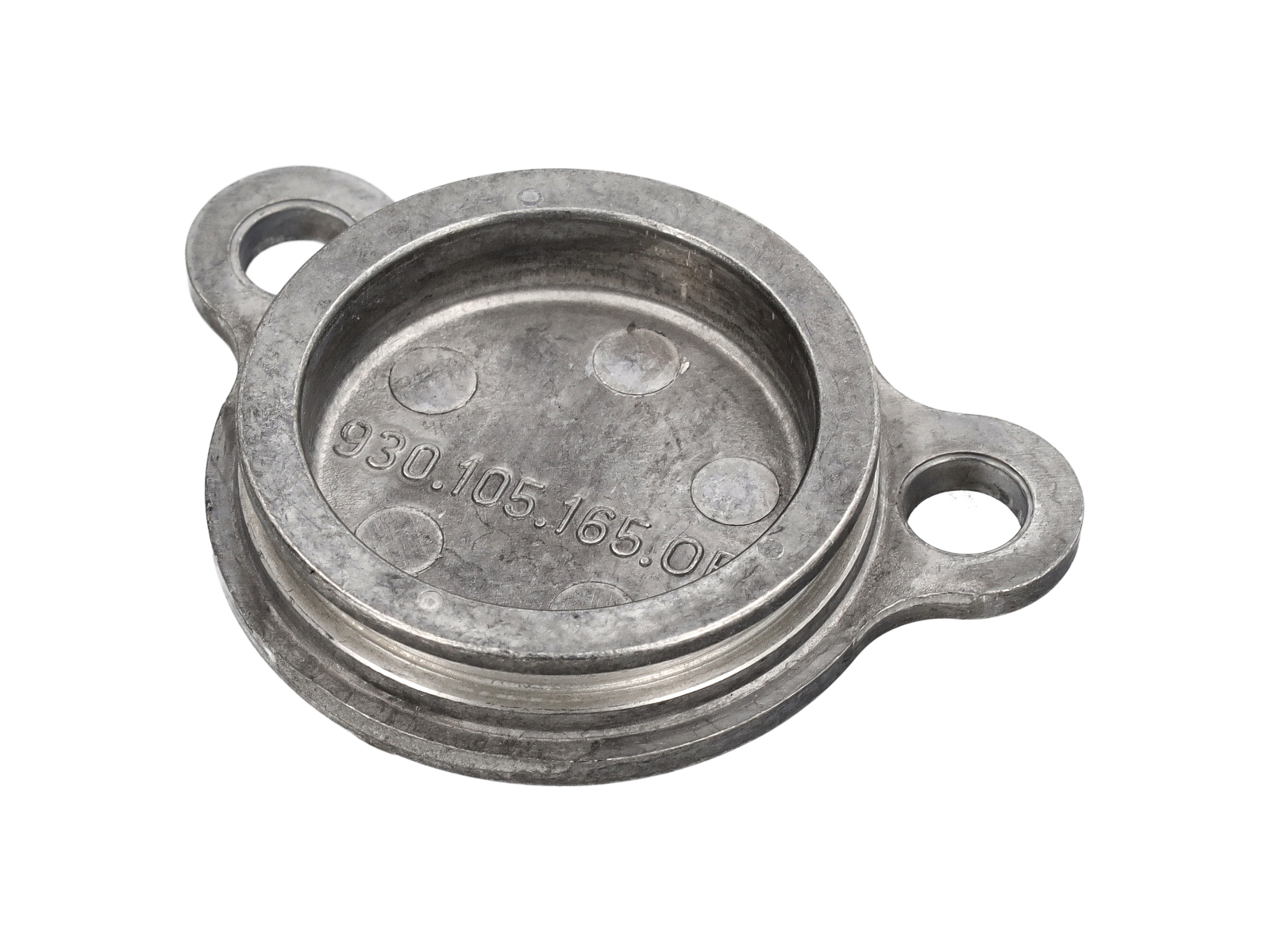

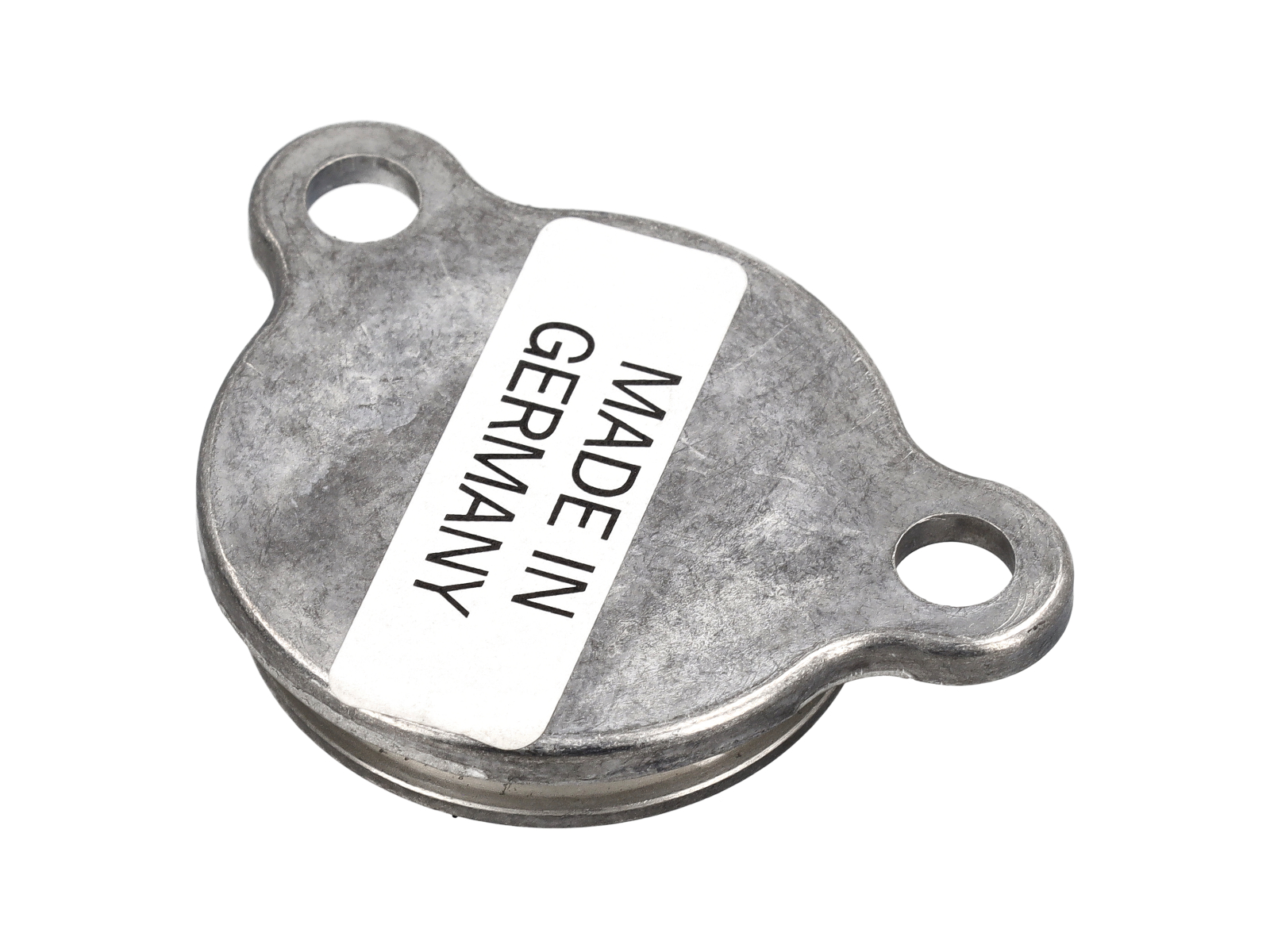

Intermediate shaft cover cap



Fits:
Porsche 911 1978-89
Porsche 964 1989-94
Porsche 993 1994-98
Porsche 996 GT3 2000-2005
Porsche 997 GT3 2007-2011

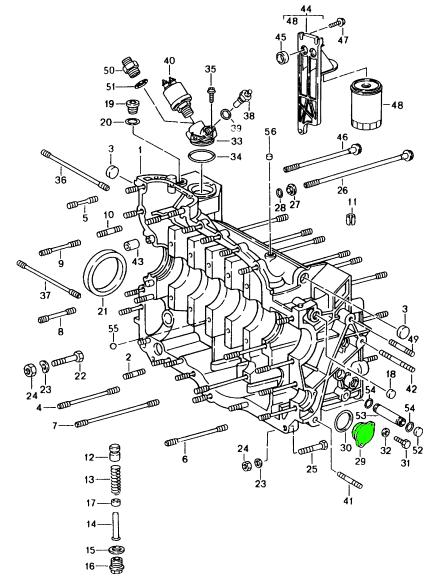

Click 'Zoom in' for large parts diagram.
Diagram ref no 29

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93010516500

The product you are viewing cross references to these numbers

Loctite 574 Flange Sealant 50ml

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

00004330518

The product you are viewing cross references to these numbers

Engine oil sump plug. Galvanized. M22 x 1.5 x 13.5 Magnetic



Fits:
Porsche 911 1965-83
Porsche 928 1978 Only

Click 'Zoom in' for large parts diagram.
Diagram ref no 41

A magnetic sump oil drain plug is a type of oil drain plug that contains a small magnet designed to attract and capture metallic particles that may be present in your engine's oil. While this type of drain plug is not exclusive to Porsche and can be used in various vehicles, it can provide several benefits, including:

Improved Engine Longevity: The magnet in the drain plug helps to capture tiny metal particles, such as iron, steel, or aluminum, that may circulate in the engine oil. Removing these particles can reduce wear and tear on engine components, potentially extending the engine's lifespan.

Enhanced Engine Performance: By reducing the presence of contaminants in the oil, a magnetic drain plug can help maintain the oil's lubricating properties, which is crucial for smooth engine operation. Clean oil can also contribute to improved fuel efficiency.

Early Detection of Problems: As the magnetic drain plug collects metallic debris, it can serve as an early warning system. By inspecting the drain plug during oil changes, you can get an idea of the engine's condition and detect any unusual wear or damage before it becomes a major issue.

Reduced Maintenance Costs: Regularly inspecting and cleaning a magnetic drain plug can prevent larger issues from developing over time. Addressing potential problems early can save you money on more extensive repairs down the road.

Peace of Mind: Knowing that you are taking steps to protect your engine from premature wear and tear can give you peace of mind as a vehicle owner. It's a relatively inexpensive and simple modification that can provide added assurance.

Easy Installation: Magnetic drain plugs are typically straightforward to install. They often replace the existing drain plug and require no special tools or modifications.

While magnetic drain plugs can offer these benefits, it's essential to remember that they are not a substitute for regular oil changes and proper maintenance. Regular oil changes with the appropriate oil and filter are still crucial for the health and longevity of your engine. Additionally, magnetic drain plugs may not capture all types of contaminants, so they should be seen as a supplementary measure rather than a comprehensive solution.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110717603

The product you are viewing cross references to these numbers
