Relays / Fuses

Flasher relay. (4 PIN CONNECTION)



Fits:
Porsche 911 1970-84 including Turbo
Porsche 914 1970-76

* Please check and match the part number of your relay in your car before ordering.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91461830312

The product you are viewing cross references to these numbers

Front 18 way blade fuse upgrade panel.



Fits:
Porsche 911 - 1974 to 1989

Have you ever been driving along, hit a bump in the road and have the headlights drop out suddenly, or the windscreen wipers stop working in the pouring rain?
Is your fuse panel littered with patched in fuses and dodgy wiring and is it hard to trace intermittent electrical issues?  If so, then this kit is a must have for all classic Porsche 911 enthusiasts who want the most reliable alternative to the dated factory fuse system.

Fix those broken, melted, corroded fuse panels, and sort those years of electrical gremlins with this easy to install fuse panel.
Our fuse panels are available to replace both the front and rear of the 911.

Front Panel Features:

• Simple installation, direct replacement, fitting to factory fuse panel mounting points.
• Uses modern mini blade fuses, easily found at service stations and auto shops.
• Fuseways rated at 25A
• Larger than factory terminals to quickly and easily swap wires, even with additional or larger wires.
• In built 40A headlight relays, rated for high Inrush current of cold filament globes.  Stop the voltage drop of the ageing factory wiring and switch contacts, and brighten those headlights.
• Additional power supply terminal to permit external power supply for higher wattage globes.
• Switchable on board diagnostics, to quickly diagnose electrical faults.  Red LED for fuse blown, Green LED for output live, Green LED when fuse removed, and backfeed is present.
• Spare fuseway for additional accessories, such as rally equipment, radios, additional lights.
• Fits under factory fuse cover.

Whats Included:
Front Fuse panel
Mini Blade Fuses, with spare fuses
Insulating spacer
Mounting hardware
Comprehensive instruction manual

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161208601

The product you are viewing cross references to these numbers

Fuel pump relay red.



Fits:
Porsche 911 1975-89
Porsche 911 Turbo 3.0/3.3L 1975-89

* Please check and match the part number of your relay in your car before ordering.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161510802

The product you are viewing cross references to these numbers

Fuel pump relay red.



Fits:
Porsche 911 1975-89
Porsche 911 Turbo 3.0/3.3L 1975-89

* Please check and match the part number of your relay in your car before ordering.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161510802

The product you are viewing cross references to these numbers

FUSE PANEL REAR IN ENGINE BAY 3 WAY with LED Fuse failure indicators
Brand: Classic Retrofit

Fits:
Porsche 911 1974-89 including Turbo

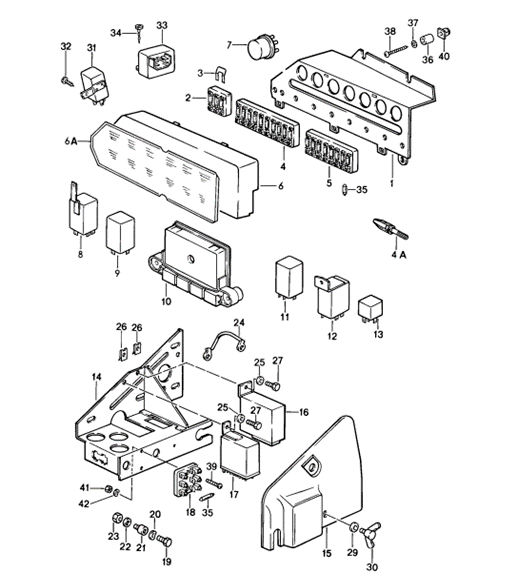

Click 'Zoom in' for large parts diagram.
Diagram ref no 18

For Installation Guide CLICK HERE

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161209306

The product you are viewing cross references to these numbers

Fuse Rack 21 way Fuse panel with LED Fuse failure indicators.

Brand: Classic Retrofit

In the kit you get the following items:
• 21 way Fuse panel.
• LED Fuse failure indicators
• Integrated headlamp relays
• Mounting kit (gasket and standoffs)
• Pack of fuses (6 x 25, 6 x 15A, 6 x 7.5A, 6 x 5A)

Replacement Fuse panel installed. No drilling, no crimping, no soldering.

Fits:
Porsche 911 1974-89 including Turbo

For Installation Guide CLICK HERE

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161208699

The product you are viewing cross references to these numbers

Fuse Box 10-Pole.

Fits:
Porsche 911 1974>>1986 (Including Turbo)

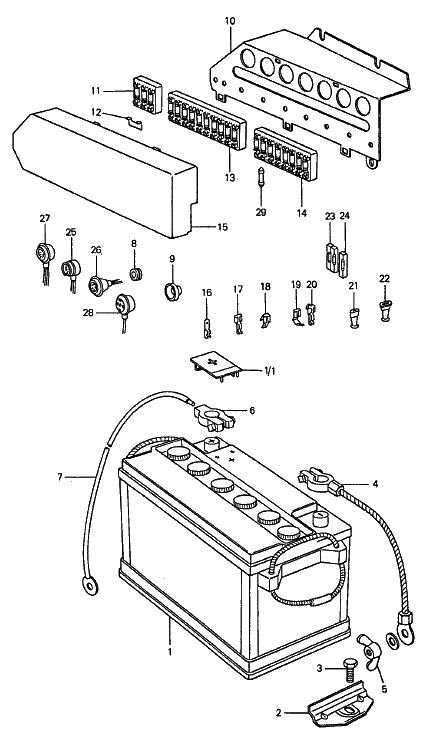

Diagram Ref No 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161208601

The product you are viewing cross references to these numbers

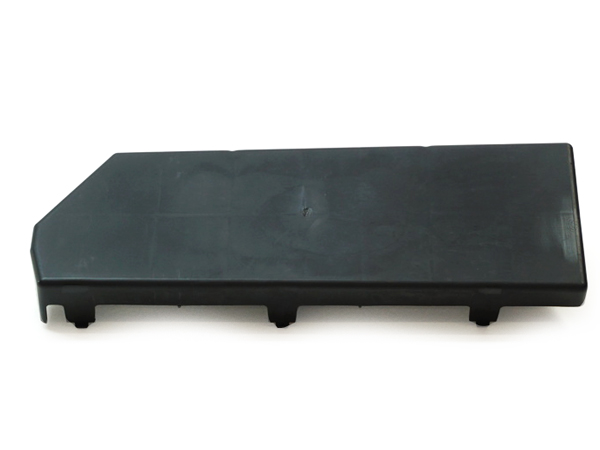

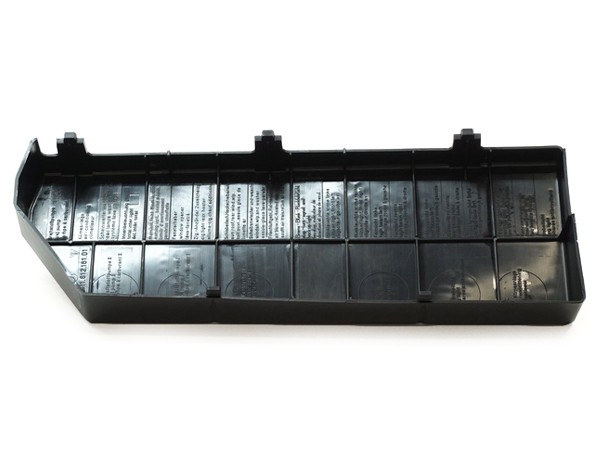

Fuse rack lid.


Fits:
Porsche 911 1974-76
Porsche 911 Turbo 1975-76

** Please note the fuse box lids for these models listed below are no longer available, so you can use the 911 1974-76 parts number 91161216101 however the fuse instruction label inside the lid might be wrong.
91161216102 911 2.7L / Carrera 3.0
91161216104 911 3.0 SC

Diagram ref no 15

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161216101

The product you are viewing cross references to these numbers

Low profile 14-pin plug connector housing base for engine loom.



Fits:

Porsche 911 / Carrera / turbo - 1970 to 1989
Porsche 964 Carrera / turbo / RS - 1990 to 1994
Porsche 914/4 - 1971
Porsche 924 S - 1986 to 1988
Porsche 928 S/ S4 / GTS - 1986 to 1995
Porsche 944/2 - 1986 to 1989
Porsche 968 - 1992 to 1994

This is the low profile 11.1mm version, not to be confused with the 15.5mm version (see illustration).

Snap fits parts 91161211502 and 91161211305

High quality reproduction part made from PA12 Nylon which is tough, durable, heat and chemicals resistant. It is also an excellent insulator.

Please note

This is not the complete unit, it's just the part of the housing that clips onto the mounting plate. No pins or wires included.

Click 'Zoom in' for large parts diagram.
Diagram ref no 17

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161211502

The product you are viewing cross references to these numbers

Low profile 14-pin plug connector housing for engine loom.



Fits:

Porsche 911 - 1970 to 1989
Porsche 911 turbo - 1975 to 1989
Porsche 914 -1970 to 1976
Porsche 924S - 1986 to1988
Porsche 928 - 1983 to 1995
Porsche 944S2 - 1985 to 1991
Porsche 964 - 1989 to 1994
Porsche 968 - 1992 to 1995

Low profile 14 Pin connector housing base. This part is 7.5mm deep (see drawing) and not to be confused with the 13mm deep high profile version.

This forms part of 911 612 113 05

High quality reproduction part made from PA12 Nylon which is tough, durable, heat and chemicals resistant. It is also an excellent insulator.

Please note
This is not the complete unit, it's just the part of the housing that holds the metal terminals which are not included.

Click 'Zoom in' for large parts diagram.
Diagram ref no 17

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161211305

The product you are viewing cross references to these numbers

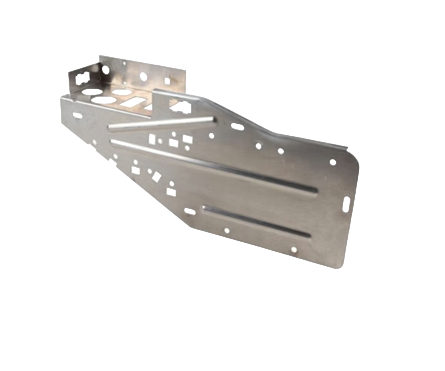

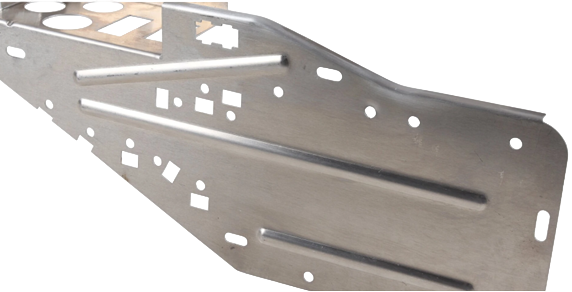

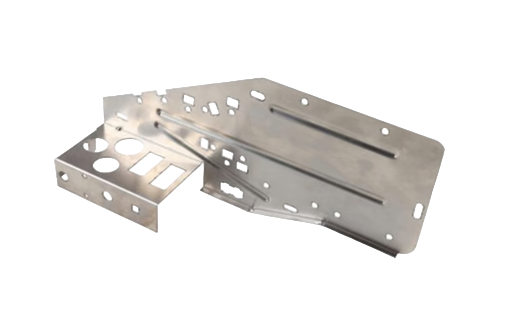

Modified mounting panel relay and regulator engine bay - for race cars
Modified for twin spark engines (2 x CDI box)



Fits:
Porsche 911 - 1969 to 1989

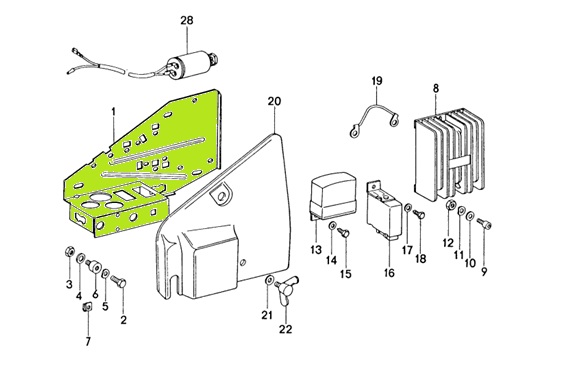

Aluminium mounting plate for regulator and relay in engine compartment. Option for race cars

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161010300T

The product you are viewing cross references to these numbers

 Rear3 way blade fuse upgrade panel.



Fits:
Porsche 911 - 1974 to 1989

Have you ever been driving along, hit a bump in the road and have the headlights drop out suddenly, or the windscreen wipers stop working in the pouring rain?

Is your fuse panel littered with patched in fuses and dodgy wiring and is it hard to trace intermittent electrical issues?  If so, then this kit is a must have for all classic Porsche 911 enthusiasts who want the most reliable alternative to the dated factory fuse system.
Fix those broken, melted, corroded fuse panels, and sort those years of electrical gremlins with this easy to install fuse panel.

Our fuse panels are available to replace both the front and rear of the 911.

Rear Panel Features:

• Simple installation, direct replacement, fitting to factory fuse panel mounting points.
• Uses modern mini blade fuses, easily found at service stations and auto shops.
• Fuseways rated at 25A
• Larger than factory terminals to quickly and easily swap wires, even with additional or larger wires.
• Switchable on board diagnostics, to quickly diagnose electrical faults.  Red LED for fuse blown, Green LED for output live, Green LED when fuse removed, and backfeed is present.

Whats Included:
Front Fuse panel
Mini Blade Fuses, with spare fuses
Insulating spacer
Mounting hardware
Comprehensive instruction manual

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161209303

The product you are viewing cross references to these numbers

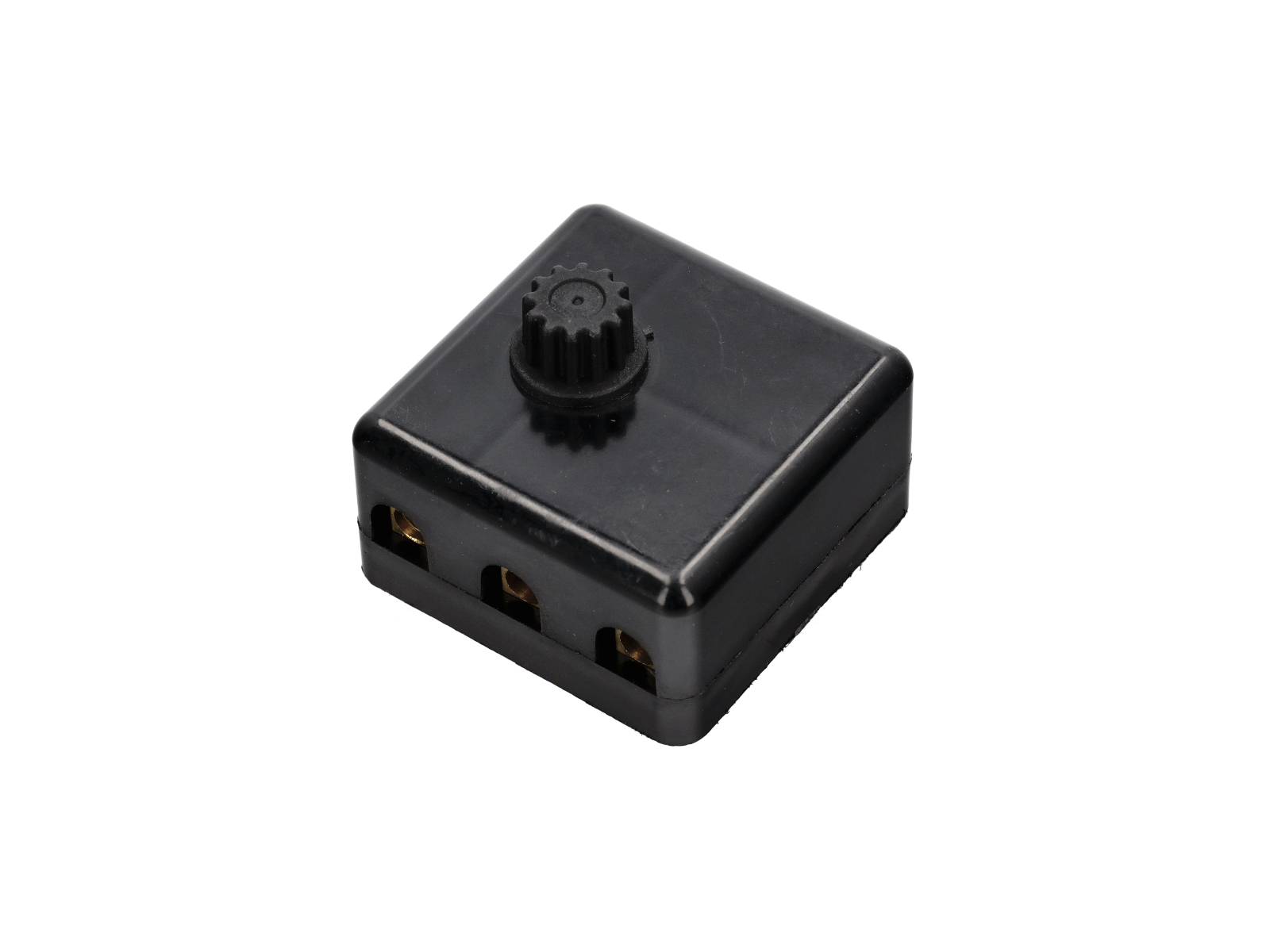

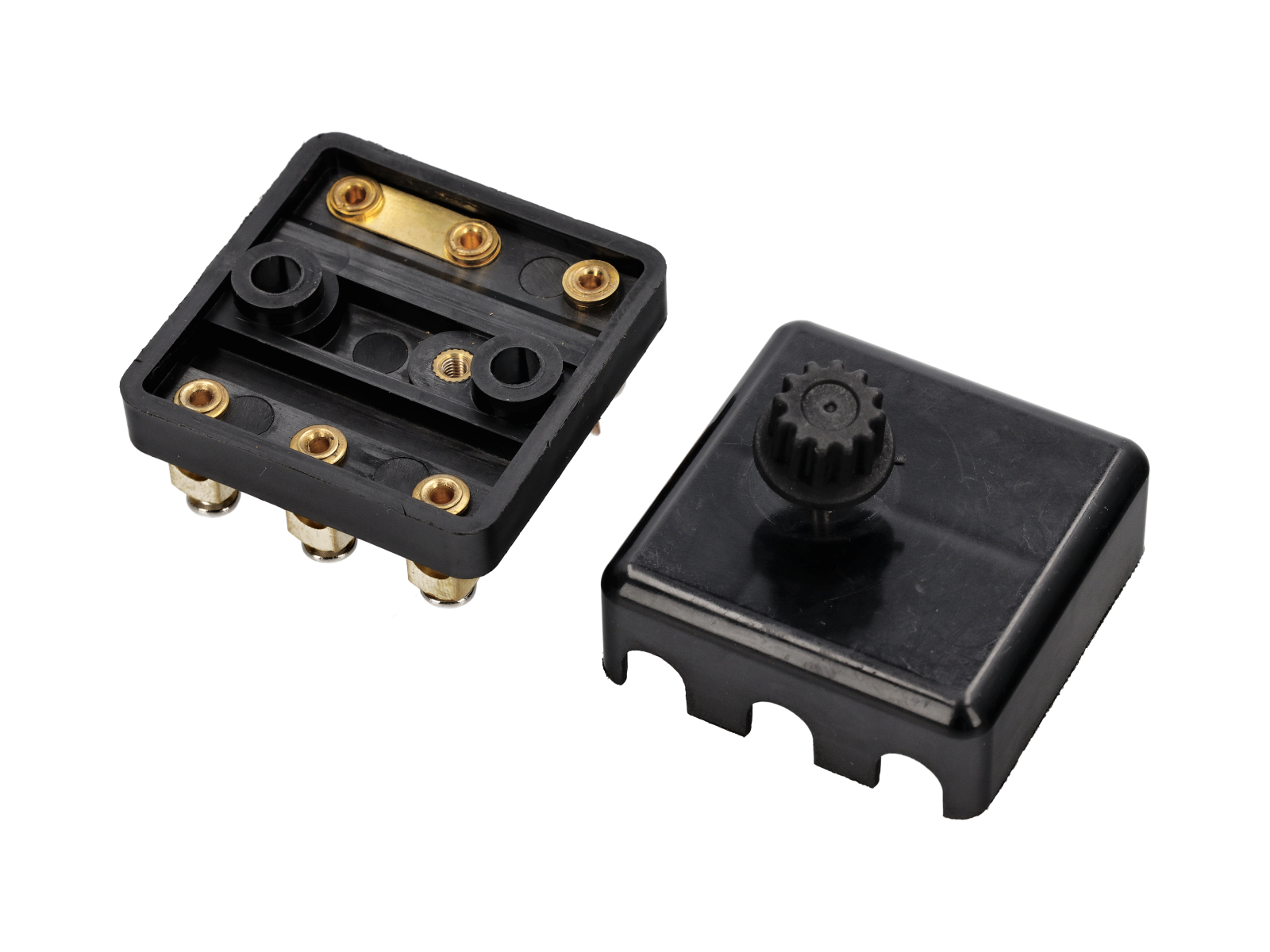

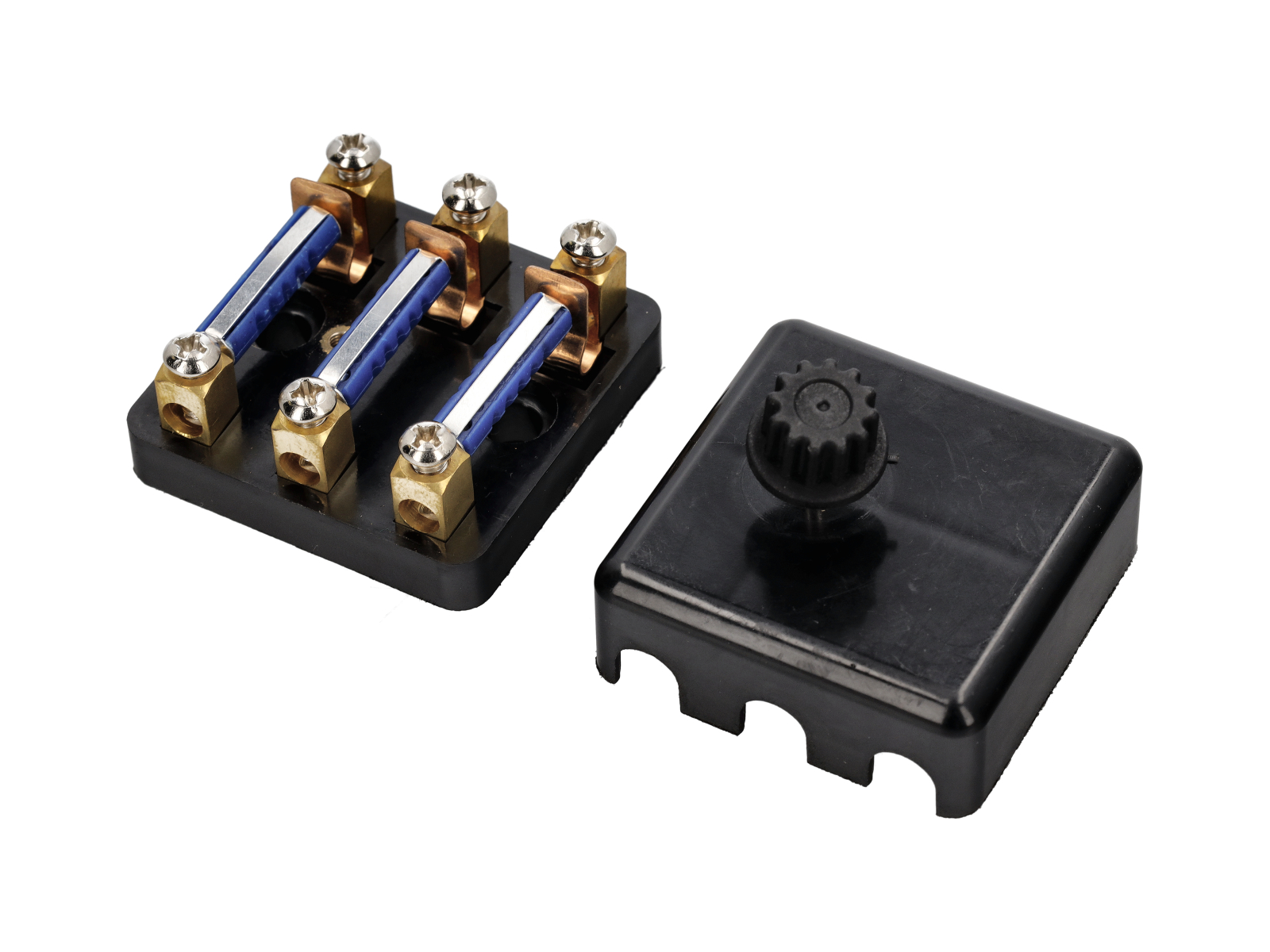

Rear 3 way fuse panel with cover.



Fits:
Porsche 911- 1974 to 1989

Click 'Zoom in' for large parts diagram.
Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161209306

The product you are viewing cross references to these numbers

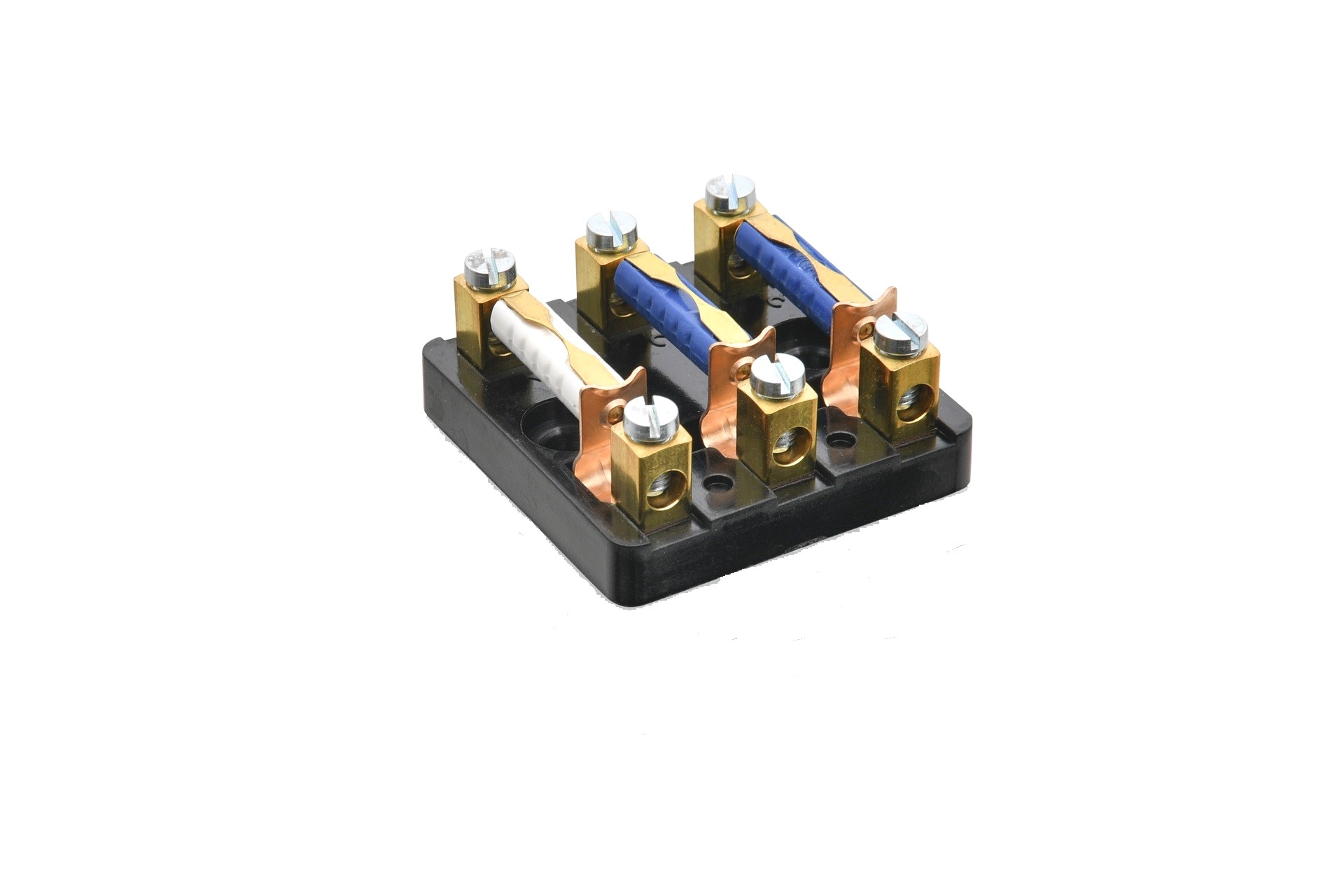

Rear 3 way fuse panel.



Fits:
Porsche 911- 1974 to 1989

Click 'Zoom in' for large parts diagram.
Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161209306

The product you are viewing cross references to these numbers

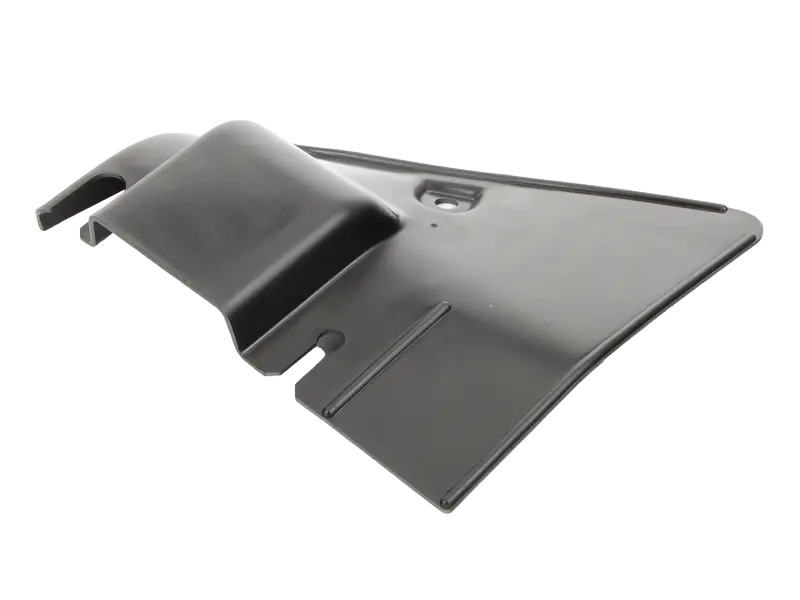

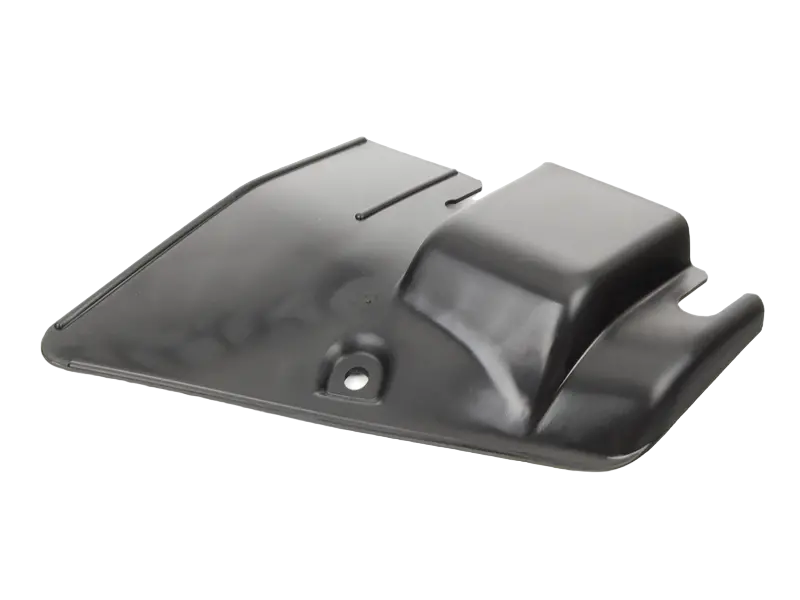

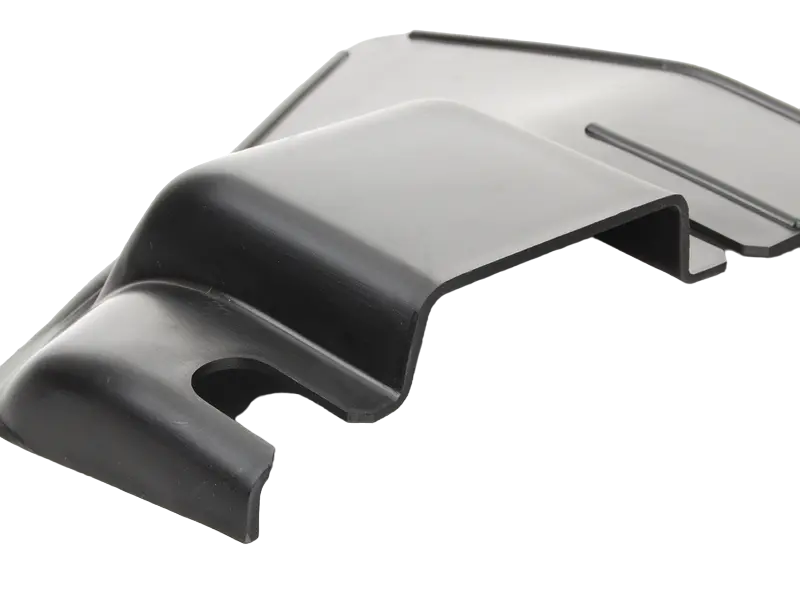

Rear fuse panel cover.



Fits
Porsche 911 - 1975 to 1989
Porsche 911 turbo - 1975 to 1989

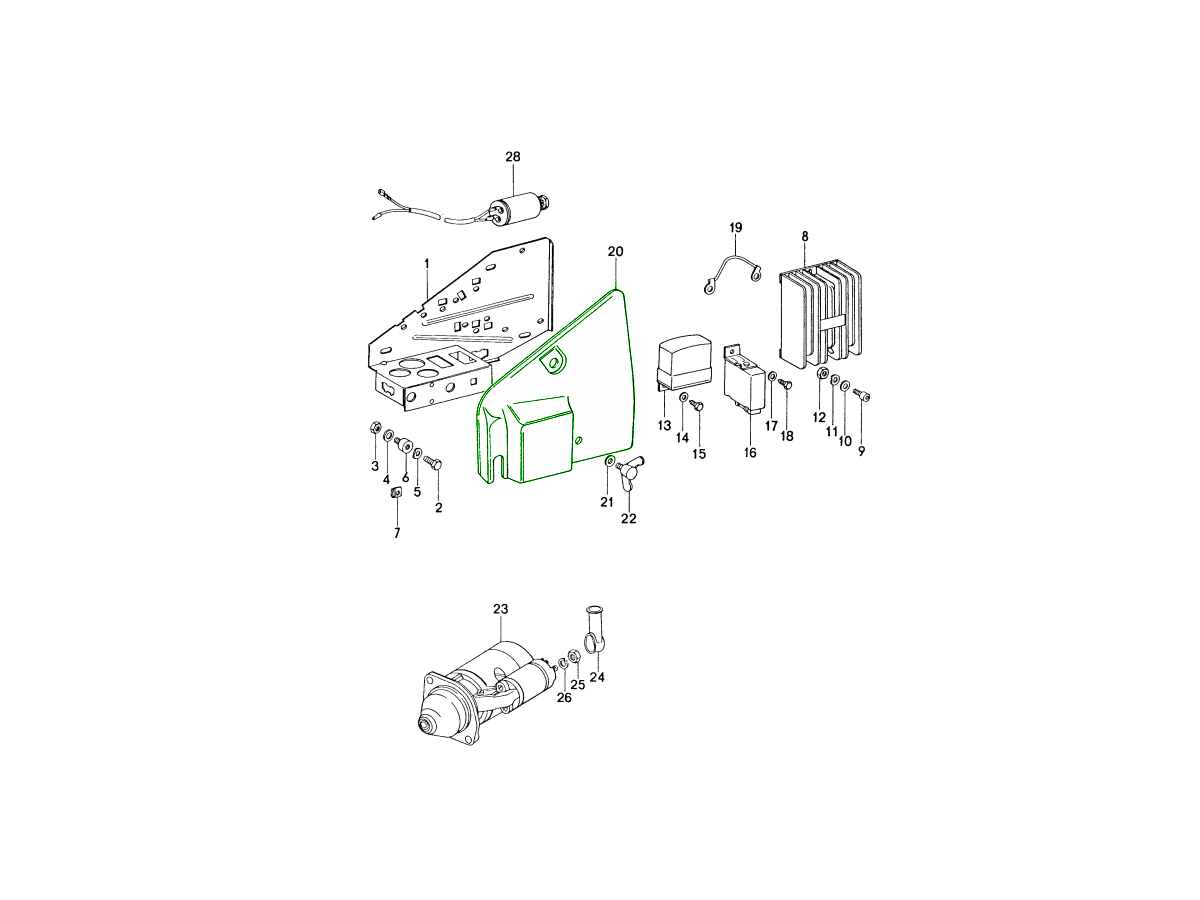

Click 'Zoom in' for large parts diagram.
Diagram ref no 20

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93061010503

The product you are viewing cross references to these numbers

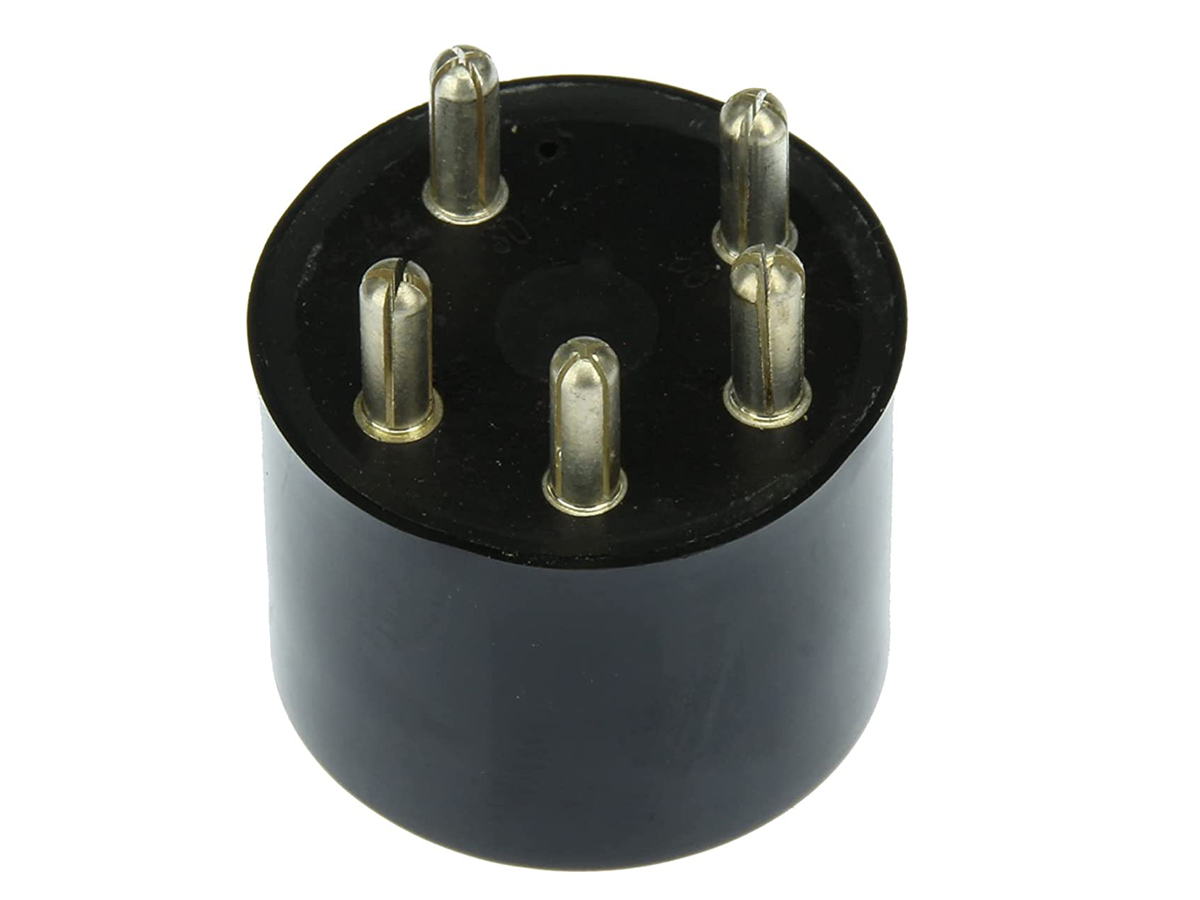

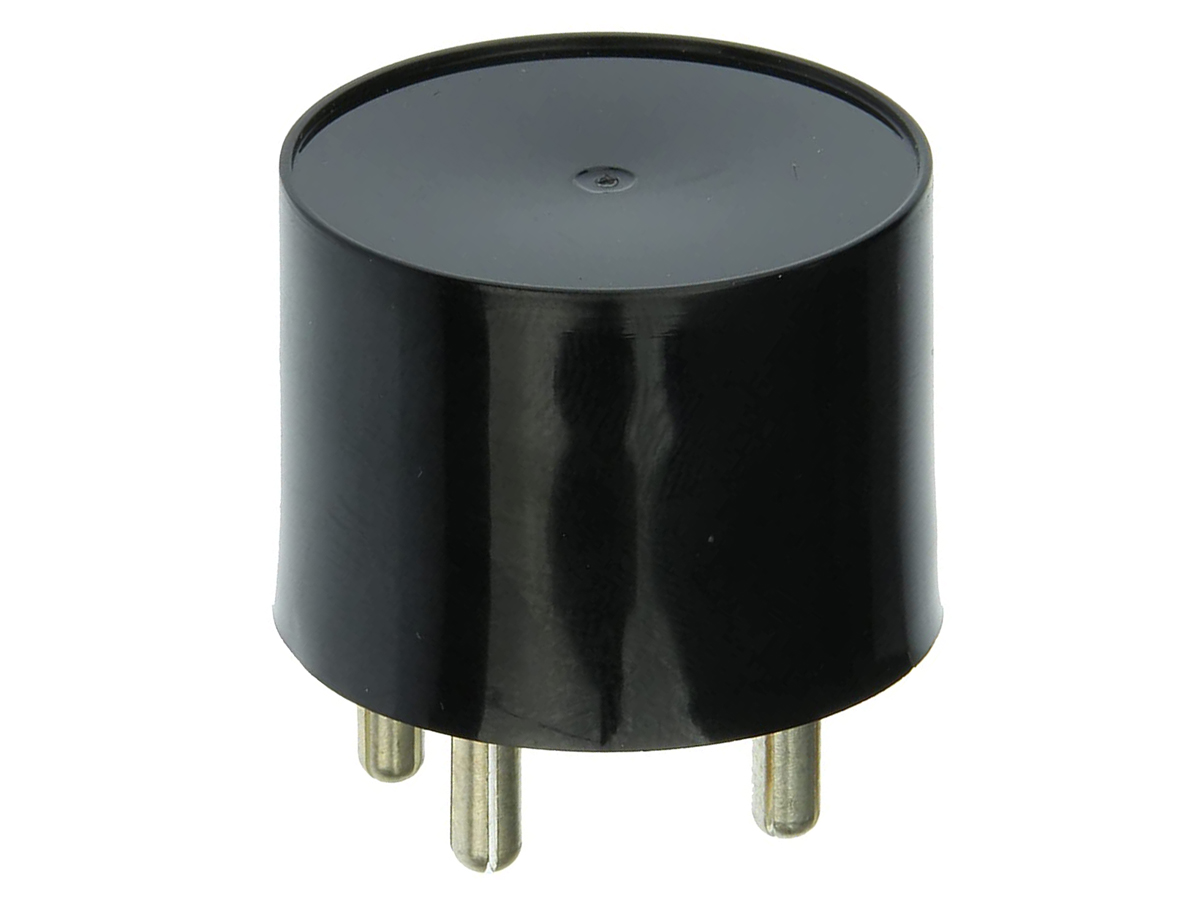

Relay black round for horns/lights etc.

Fits:
Porsche 911 1969-89
Porsche 914 1970-76

FOR:
- horn
- blower
- headlight flasher
- fog lamp
- ignition coil
- series resistor
- injection system
- windscreen & rear window heating (100W)
- cigarette lighter
- high beam etc.

* Please check and match the part number of your relay in your car before ordering.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161510902

The product you are viewing cross references to these numbers
