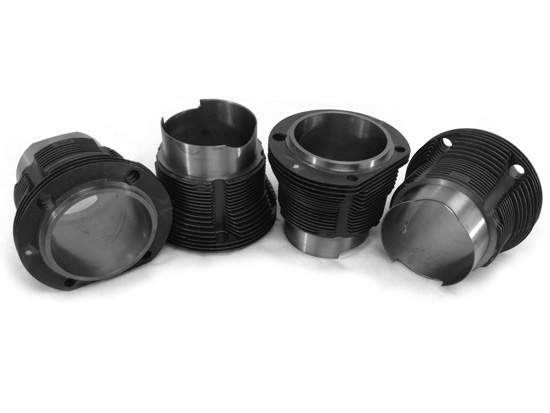

This is a new set of 96mm Big Bore Type 4 or Porsche 914 cylinders.

Kit requires no crankcase machine work and will slip into any 1.7 /1.8 or 2.0ltr cases.

1.7ltr cylinder heads will need to be opened up to 96mm



Fits:
Porsche 914

Cylinders: Cast Iron.
Kit included: 4 Cylinders

Piston Set
1.7ltr / 1.8ltr - VW9600T4S66P
2.0ltr - VW9600T4S71P

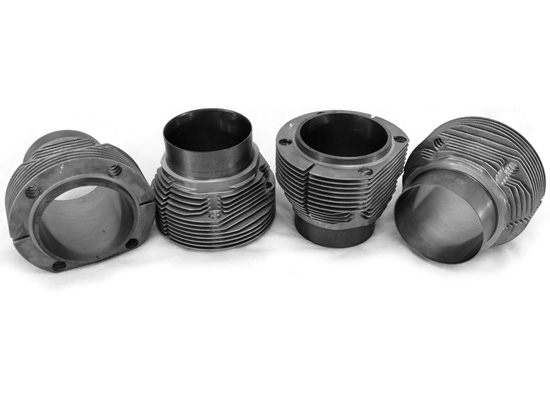

This is a new set of Biral, 96mm Big Bore Type 4 or Porsche 914 cylinders.
Kit requires no crankcase machine work and will slip into any 1.7 /1.8 or 2.0ltr cases.

1.7ltr cylinder heads will need to be opened up to 96mm



Fits:
Porsche 914

Cylinders: Aluminium Biral
Kit included: 4 Cylinders

Piston Set
1.7ltr / 1.8ltr - VW9600T4S66P
2.0ltr - VW9600T4S71P

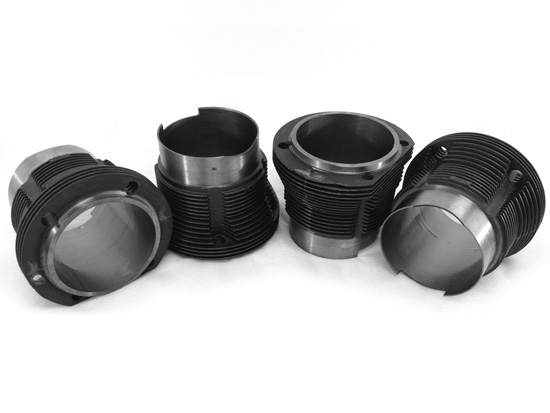

This is a new set of 103mm/104mm/105mm Type 4 or Porsche 912E & 914 cylinders. This kit requires machine work Both the heads and Case will need to be opened for the 103mm/104mm/105mm Bore.



Fits:
Porsche 914
Porsche 912 E

Cylinder is 14.6mm longer, Designed to be "cut to fit" for long stroke or long rod engines.

Cylinders: Cast Iron.
Machine Work Required

Kit included: 4 Cylinders

This is a new set of 103, 104 or 105mm Type 4 or Porsche 914 cylinders. This kit requires machine work you will need to open the heads and case.



Fits:
Porsche 914

Cylinders: Cast Iron.
Kit included: 4 Cylinders

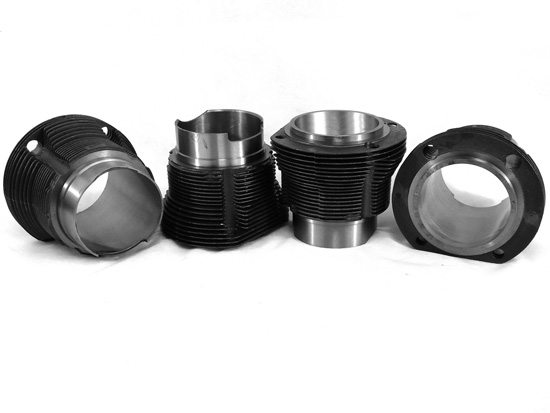

This is a new set of 90mm 1700cc Type 4 or Porsche 914 cylinders. This kit requires no machine work.



Fits:
Porsche 914

Cylinders: Cast Iron.
Kit included: 4 Cylinders

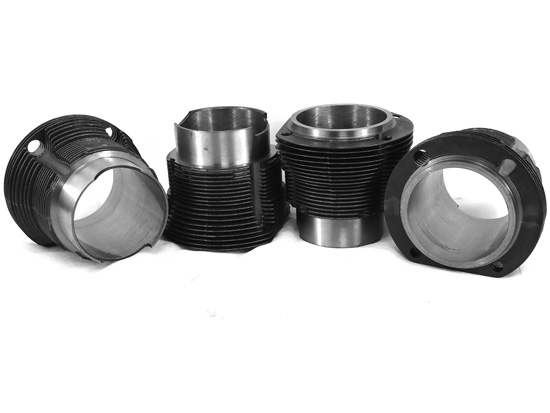

This is a new set of 93mm 1800cc Type 4 or Porsche 914 cylinders. This kit requires no machine work.



Fits:
Porsche 914

Cylinders: Cast Iron.
Kit included: 4 Cylinders

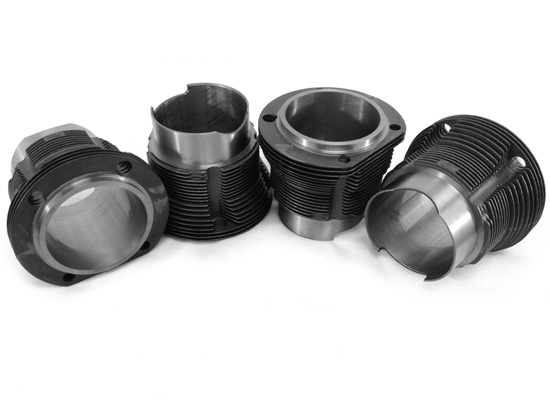

This is a new set of 94mm 2.0 Type 4 or Porsche 914 cylinders. This kit requires no machine work.



Fits:
Porsche 914

Cylinders: Cast Iron.
Kit included: 4 Cylinders

Cylinders with piston set, Flat top 90x66mm.



Fits: Porsche 914, Type 4

Engine size: 1700cc
Stroke: For 66mm stroke crankshafts
Pistons: Hypereutectic aluminium alloy
Compression Height: 42mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings.

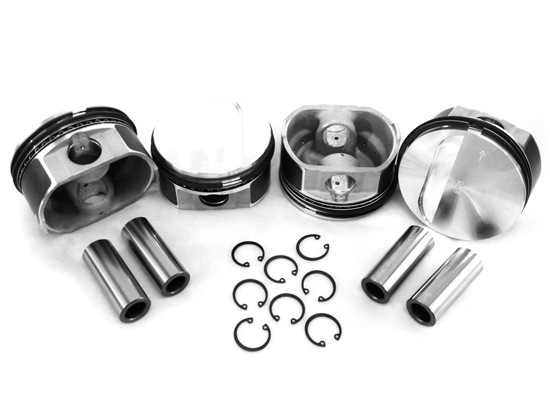

Flat top Piston Set.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Stroke: 71 to 78mm
Pistons: Hypereutectic aluminium alloy
Compression Height: 35.50mm
Pin: 24mm

Set includes: 4 pistons, 4 pins and a set of rings.

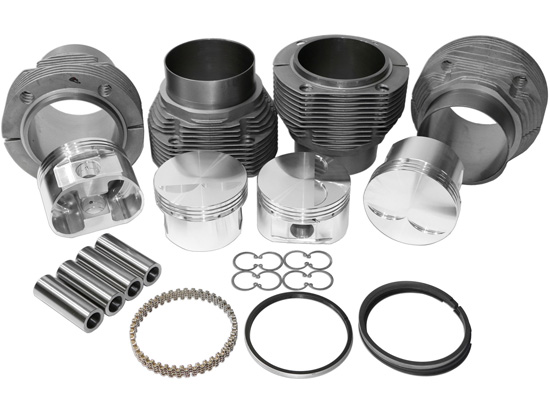

This is a new set of Type 4 2.0 liter 96mm flat top JE Pistons with Biral cylinders.



JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better.It is a Slip in kit no machine work is needed.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 71 to 78mm
Cylinders: Biral
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

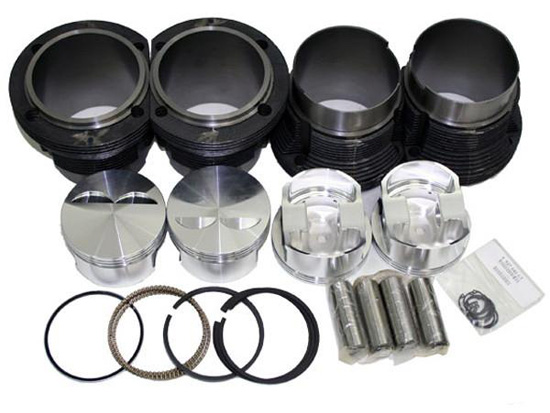

This is a new set of Type 4 103mm flat top JE Pistons and Cylinders.



JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins giving you the option to Build 2.3L and bigger Engines. This is a Machine in kit you will need to open both the Heads and Case to install them.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2865cc with 86mm Crank
Stroke: 78 to 86mm
Cylinders: cast iron
Pistons: Forged JE
Compression Height: 30.08mm
Pin: 22mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

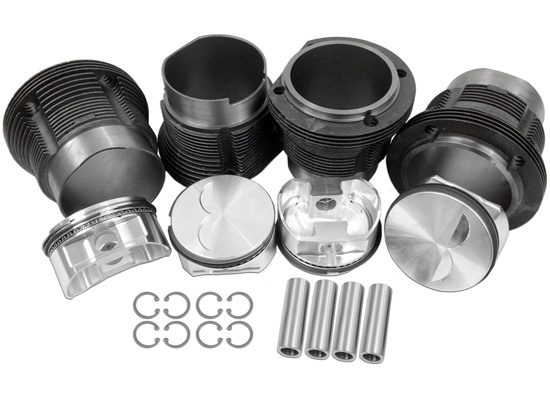

This is a new set of Type 4 103mm flat top JE Pistons and cylinders.



JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.3L and bigger Engines. This is a Machine in kit you will need to open both the Heads and Case to install them.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2365cc with 71mm crank
Stroke: 71 to 78mm
Cylinders: Cast Iron
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

This is a new set of Type 4 104mm flat top JE Pistons and Cylinders.



JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins giving you the option to Build 2.4L and bigger Engines. This is a Machine in kit you will need to open both the Heads and Case to install them.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2921cc with 86mm Crank
Stroke: 78 to 86mm
Cylinders: cast iron
Pistons: Forged JE
Compression Height: 30.08mm
Pin: 22mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

This is a new set of Type 4 104mm flat top JE Pistons and cylinders.



JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.4L and bigger Engines. This is a Machine in kit you will need to open both the Heads and Case to install them.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2412cc with 71mm crank
Stroke: 71 to 78mm
Cylinders: Cast Iron
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

This is a new set of Type 4 105mm flat top JE Pistons and Cylinders.



JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins giving you the option to Build 2.4L and bigger Engines. This is a Machine in kit you will need to open both the Heads and Case to install them.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2978cc with 86mm Crank
Stroke: 78 to 86mm
Cylinders: cast iron
Pistons: Forged JE
Compression Height: 30.08mm
Pin: 22mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings

This is a new set of Type 4 105mm flat top JE Pistons and cylinders.



JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.4L and bigger Engines. This is a Machine in kit you will need to open both the Heads and Case to install them.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2458cc with 71mm crank
Stroke: 71 to 78mm
Cylinders: Cast Iron
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm

Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
