JE Pistons

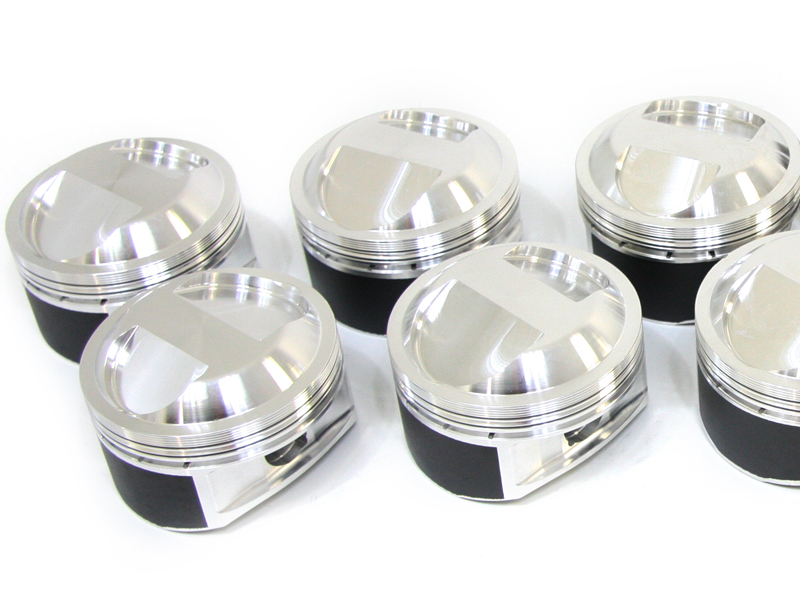

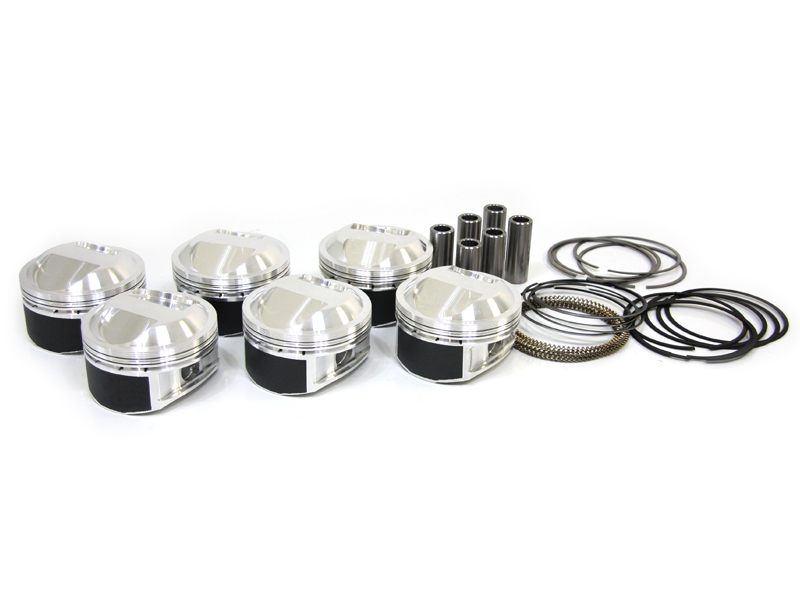

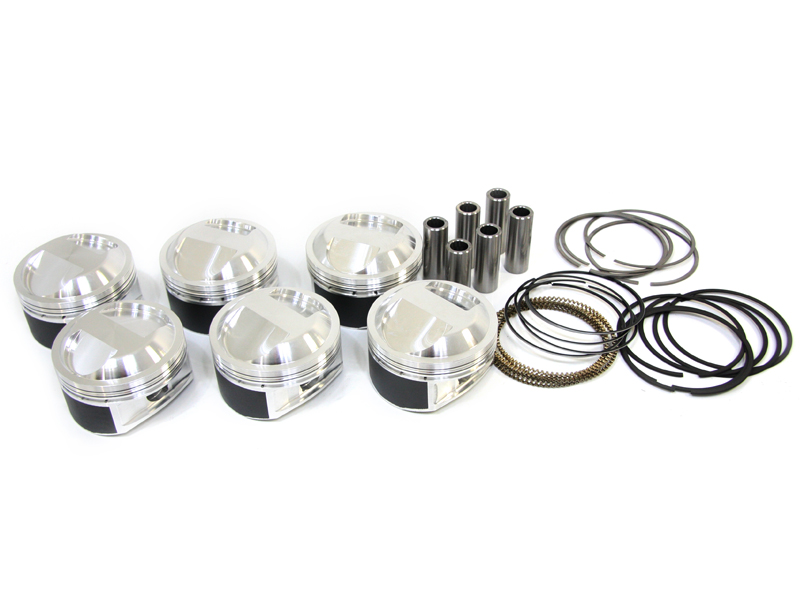

JE Piston - Set of 6
Forged from 4032 Aluminium Alloy



Fits:
Porsche 911 3.0ltr (10.0:1)

Engine Size : 3.0ltr
Bore Size: 98.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Oversize: 3.00mm
Material: 4032 Aluminium Alloy

JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.

The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.

4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use

Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction

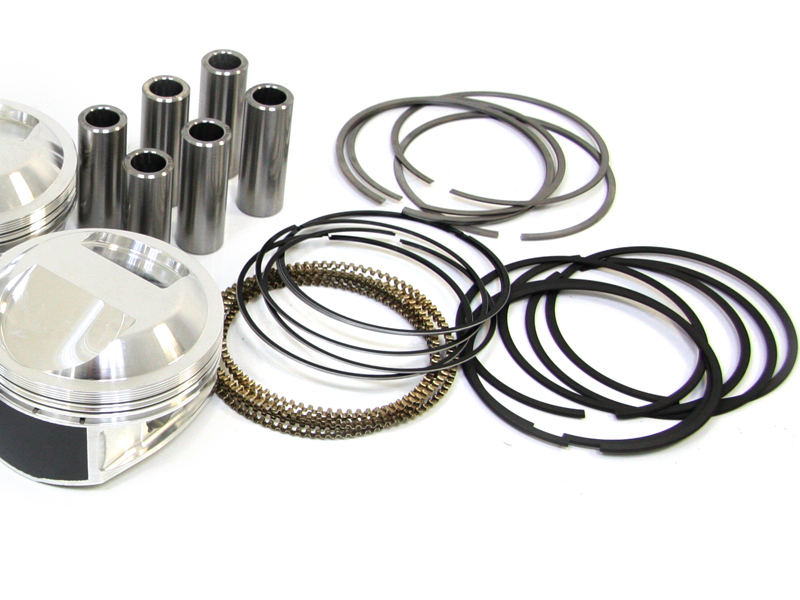

• Pin Fitting, Wire Locks and Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

381254

The product you are viewing cross references to these numbers

JE Piston - Set of 6
Forged from 4032 Aluminium Alloy



Fits:
Porsche 911 3.0ltr (10.0:1)

Engine Size : 3.0ltr
Bore Size: 100.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Oversize: 5.00mm
Material: 4032 Aluminium Alloy

JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.

The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.

4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use

Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

381255

The product you are viewing cross references to these numbers

JE Piston - Set of 6
Forged from 4032 Aluminium Alloy



Fits:
Porsche 911 3.0ltr (10.0:1)

Engine Size : 3.0ltr
Bore Size: 102.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Oversize: 7.00mm
Material: 4032 Aluminium Alloy

JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.

The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.

4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use

Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

381256

The product you are viewing cross references to these numbers

JE Piston - Set of 6
Forged from 4032 Aluminium Alloy



Fits:
Porsche 911 3.0ltr (10.0:1)

Engine Size : 3.0ltr
Bore Size: 95.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.0:1
Oversize: Standard (STD)
Material: 4032 Aluminium Alloy

JE designs are specifically engineered for extreme applications up to and including professional competition. In this environment, the higher compression ratios, high boost or heavy nitrous use necessitate the higher tensile strength of 4032 and 2618 aluminium alloy, which has been optimized for aftermarket Nikasil cylinders. The JE Piston Porsche series now include low friction skirt coatings and are lighter than before, improving both performance and longevity.

The Dome/Dish require no deburring or preparation and feature a smooth flowing radii for excellent flame travel.

4032 Aluminium Alloy
Pistons manufactured from 4032 wrought aluminium alloy are designed for high performance applications where a strong and quiet piston is required. These pistons require less initial piston to cylinder wall clearance and are quieter at start-up. Ideal for street/road use

Piston Features:
• Accumulator Grooves
• Contact Reduction Grooves
• Double Broach Oilers
• Skirt Coating
• Under crown Milling for Weight Reduction
• Pin Fitting, Wire Locks and Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

381253

The product you are viewing cross references to these numbers

JE Piston - Set of 6

Forged from 2618 Aluminium Alloy

Fits:
Porsche 911 3.0L (10.5:1)

Engine Size : 3.0
Bore Size: 95.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.5
Dome volume: 44.7cc
Oversize: STD

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353247

The product you are viewing cross references to these numbers

JE Piston - Set of 6

Forged from 2618 Aluminium Alloy

Fits:
Porsche 911 3.0L (10.5:1)

Engine Size : 3.0
Bore Size: 98.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.5
Dome volume: 41.7cc
Oversize: 3.00mm

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353250

The product you are viewing cross references to these numbers

JE Piston - Set of 6
Forged from 2618 Aluminium Alloy



Fits:
Porsche 911 3.0L (10.5:1)

Engine Size : 3.0
Bore Size: 100.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.5
Dome volume: 39.8cc
Oversize: 5.00mm

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353253

The product you are viewing cross references to these numbers

JE Piston - Set of 6

Forged from 2618 Aluminium Alloy

Fits:
Porsche 911 3.0L (10.5:1)

Engine Size : 3.0
Bore Size: 102.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 10.5
Dome volume: 37.7cc
Oversize: 7.00mm

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353255

The product you are viewing cross references to these numbers

JE Piston - Set of 6

Forged from 2618 Aluminium Alloy

Fits:
Porsche 911 3.0L (11.5:1)

Engine Size : 3.0
Bore Size: 95.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 11.5
Dome volume: 49.7cc
Oversize: STD

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353248

The product you are viewing cross references to these numbers

JE Piston - Set of 6

Forged from 2618 Aluminium Alloy

Fits:
Porsche 911 3.0L (11.5:1)

Engine Size : 3.0
Bore Size: 98.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 11.5
Dome volume: 47.1cc
Oversize: 3.00mm

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353251

The product you are viewing cross references to these numbers

JE Piston - Set of 6
Forged from 2618 Aluminium Alloy



Fits:
Porsche 911 3.0L (11.5:1)

Engine Size : 3.0
Bore Size: 100.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 11.5
Dome volume: 45.3cc
Oversize: 5.00mm

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353254

The product you are viewing cross references to these numbers

JE Piston - Set of 6

Forged from 2618 Aluminium Alloy

Fits:
Porsche 911 3.0L (11.5:1)

Engine Size : 3.0
Bore Size: 102.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 11.5
Dome volume: 43.5cc
Oversize: 7.00mm

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353256

The product you are viewing cross references to these numbers

JE Piston - Set of 6

Forged from 2618 Aluminium Alloy

Fits:
Porsche 911 3.0L (9.5:1)

Engine Size : 3.0
Bore Size: 95.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 9.5
Dome volume: 38.5cc
Oversize: STD

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353246

The product you are viewing cross references to these numbers

JE Piston - Set of 6

Forged from 2618 Aluminium Alloy

Fits:
Porsche 911 3.0L (9.5:1)

Engine Size : 3.0
Bore Size: 98.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 9.5
Dome volume: 35.7cc
Oversize: 3.00mm

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353249

The product you are viewing cross references to these numbers

JE Piston - Set of 6

Forged from 2618 Aluminium Alloy

Fits:
Porsche 911 3.0L (9.5:1)

Engine Size : 3.0
Bore Size: 100.00mm
Stroke: 70.40mm
Rod length: 127.80mm
Compression Distance : 33.90mm
Compression Ratio: 9.5
Dome volume: 32.9cc
Oversize: 5.00mm

Designed for Porsche Air-cooled 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminum cylinders, steel/iron cylinders may require additional clearance.

2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.

Includes:
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

353252

The product you are viewing cross references to these numbers
