Wiring harness

Intermittent wiper relay wiring harness.



Fits:
Porsche 911 - 1975 to 1977
Porsche 911 turbo - 1975 to 1977

Intermittent wiper relay wiring harness - 8 pole connector



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161205902

The product you are viewing cross references to these numbers

Light switch wiring harness loom.



Fits:
Porsche 911 - 1970 to 1975

Harness with 6 pole male connector that connects to the light switch.
With original colour coded wiring.

Harness will exactly fit like the original item with Wire tube and oil resistant tape as original.
Terminals have rubber sleeves.

Harness comes with detailed connection instructions and new 6 pole connector included

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 6

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201000

The product you are viewing cross references to these numbers

Luggage compartment wiring harness loom - Left Hand Drive (LHD)

Fits:
Porsche 911 >> 1976 Left Hand Drive (LHD)

Complete main harness with original colour coded wiring. Runs from the front fusebox to dashboard. This harness will exactly fit like the original and the wire tube, oil resistant tape are as original. Terminals have rubber sleeves.

•   As original coloured wiring.
•   Original neoprene terminal sleeves used, (no shrink tube!)
•   Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53
•   Gasoline, oil, battery acid, engine coolant resistant.
•   High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.

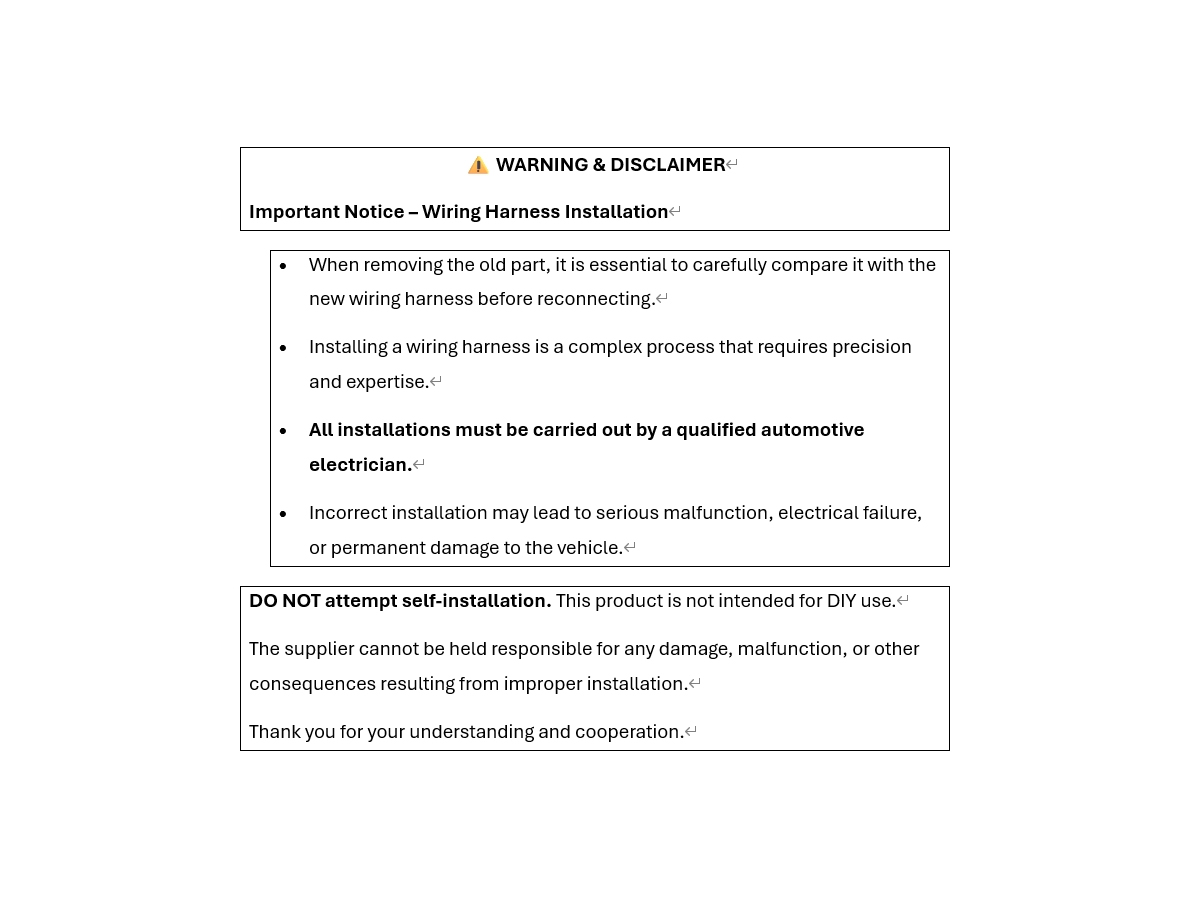

DISCLAIMER:
DO NOT attempt self-installation. This product is not intended for DIY use. All installation must be carried out by a qualified automotive electrician.

Special order made to order parts please allow 2 – 4 weeks

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161200212

The product you are viewing cross references to these numbers

Oxygen sensor control system (closed loop) wiring harness.



Fits:
Porsche 911 SC 3.0L 08/1980-07/1983 (93016)
USA / Canada Spec

This harness runs from the engine bay, notably the white oxygen sensor and into the passenger compartment under the passenger seat. This harness includes the oxygen sensor plug and the 35 positions connector housing which connects to the module. Accel enrichment and diagnostic port connector housing are NLA and not included (wires are terminated with correct pins/sockets)



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161217301

The product you are viewing cross references to these numbers

Protective sheath covering.



Fits:

Porsche 911 / 912 - 1965 to 1989
Porsche 914

Protective sheathing cover for fuel ventilation lines and wiring harness

Click 'Zoom in' for large parts diagram.
Diagram ref no 42

Harness for the rear window wiper

Runs through the tunnel to the rear wiper motor
Does not include diode



Fits:
Porsche 911 1974-89 for LHD cars

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161202501

The product you are viewing cross references to these numbers

Tunnel heater panel wiring harness loom.

Fits:
Porsche 911 - 1975 to 1986

Harness for center heater control panel (between front seats)

Harness goes from the fusebox (& ground) through the tunnel towards the heater control unit.

Comes with the right female pins but the connector housing needs to be re-used (NLA)

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 10

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

911612152

The product you are viewing cross references to these numbers

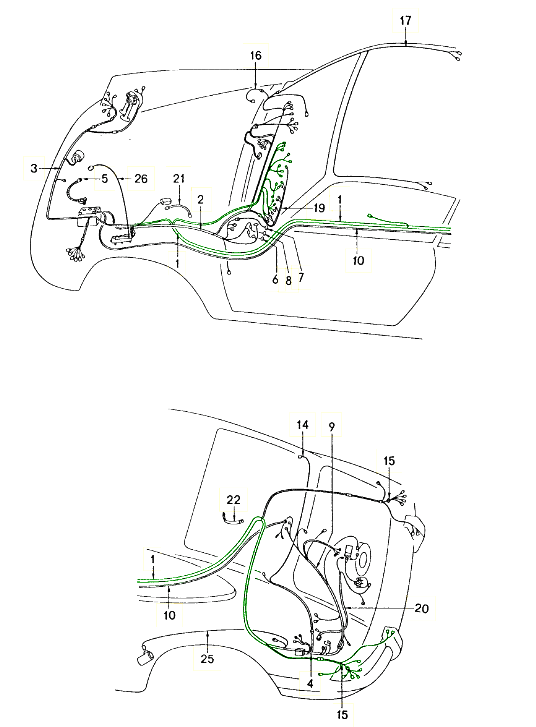

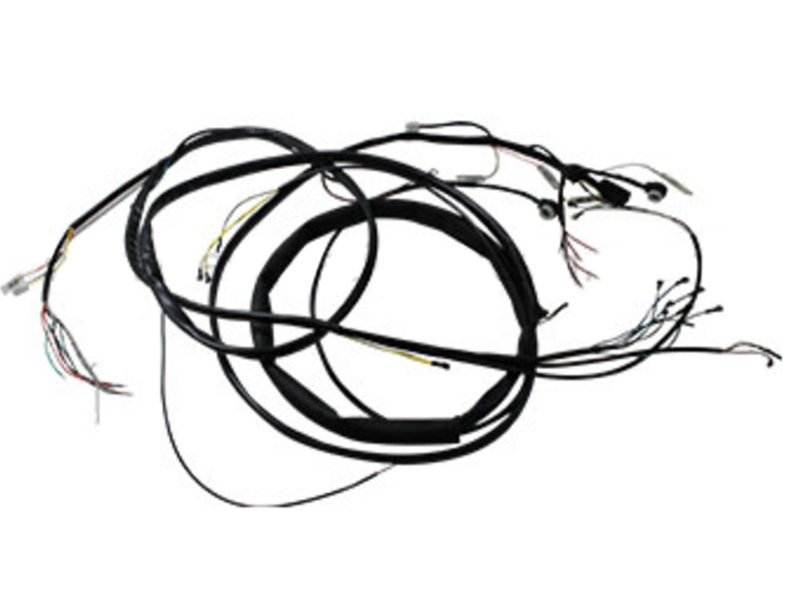

The tunnel harness is routed from the front fuse panel and gauges to the rear lights and engine bay.



Fits:
Porsche 911 1974-75

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161200126

The product you are viewing cross references to these numbers

Two stage rear window defogger harness. Connects to engine bay relay panel with two-pole connector (included). Grommet for rear parcel shelf pass through also included.



Fits:
Porsche 911 1971-83

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161203201

The product you are viewing cross references to these numbers

Window motor wiring loom with connector - left door.



Fits:
Porsche 911 - 1969 to 1989

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161210401

The product you are viewing cross references to these numbers

Wiring harness for the lamp in the front luggage compartment.

Fits:
Porsche 911 1972-89
Porsche 911 Turbo 1975-89
Porsche 964 1989-94
Porsche 959 1987-88

Diagram ref. 16.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161204422

The product you are viewing cross references to these numbers

Wiring harness door window electric motor.
Sold each - fits left and right hand doors



Fits:
Porsche 911 - 1970 to 1989

Click 'Zoom in' for large parts diagram.
Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161204800

The product you are viewing cross references to these numbers

Wiring harness door window motor relay.



Fits:
Porsche 911 - 1974 to 1983
Porsche 911 turbo - 1975 to 1983

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161214700

The product you are viewing cross references to these numbers

Wiring harness door window motor.



Fits:
Porsche 911 - 1974 to 1986
Porsche 911 turbo - 1975 to 1986

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161216700

The product you are viewing cross references to these numbers

Wiring harness door window switch to motor - Passenger side



Fits:
Porsche 911 - 1974 to 1989
Porsche 911 turbo - 1975 to 1989

Click 'Zoom in' for large parts diagram.
Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161210402

The product you are viewing cross references to these numbers

Wiring harness for ignition switch.



Fits:
Porsche 911 2.0L-3.0L 08/1969 - 07/1975

Click 'Zoom in' for large parts diagram.
Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201130

The product you are viewing cross references to these numbers
