Ignition Switch

Reconditioned Ignition starter box CDI 3 PIN.



Fits:
Porsche 911 1965-77

Reconditioned ignition starter box are sold on a exchange basis, A surcharge will be held and then refunded when the old one is returned.

PLEASE NOTE:

• The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
• Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
• Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
• All surcharges and exchanges are subject to our terms and conditions.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

901602702AX

The product you are viewing cross references to these numbers

Ignition Starter box CDI 3 PIN.
(Bosch reference 227-200-001)

Classic Retrofit replacement CDI+ ignition offers you bespoke modern electronics in a standard looking package. The CDI+ unit requires no modifications to the original wiring harness or vehicle metalwork and is 'plug and play'.

The CDI+ is a direct replacement for the 3 pin and 6 pin Bosch units fitted to Porsche 911's between 1969 and 1983 (and turbo models to ~1988). All CDI+ units have a 48 MHz microprocessor onboard to control ignition timing.

Basic Unit:
The basic unit is a plug and play replacement for the Original Bosch CDI. It will work with the existing distributor without modification and still uses the weights and springs for the advance curve. It is pre-set at the factory (to your specification) and has the following features:
-Hard RPM limiter.
-Soft RPM limiter.
-Double spark at all RPMs
-Shift Light output
-Tacho calibration
-Upgradeable through firmware updates (at one of our specialists)
-The following parameters can be adjusted using the hidden 'jog wheel'.
-Hard RPM limiter.
-Soft RPM limiter.
-Shift light RPM.
-Tacho calibration.
The basic unit can be upgraded to an advanced unit at a later date by one of our specialists.

Advanced Unit:
The advanced unit allows the adjustment/tuning of the ignition advance curve and other features by plugging in a laptop. This can be achieved by 'overlaying' a curve on top of the distributor weights/springs curve or by locking the distributor and replacing the curve completely. Either way, you can unlock the true potential of your engine by adjusting fuelling and having the ignition curve to match.

The CDI+ has all the features of the basic unit but allow more flexibility in adjustment:
-Fully programmable ignition advance curve.
-Hard RPM limiter with adjustable ignition cut schemes
-Soft RPM limiter with adjustable ignition retard
-Launch RPM limiter
-Double spark at all RPMs
-Max RPM tell tale
-Shift Light output
-Clutch pedal input
-Tacho calibration
-Upgradeable through firmware updates

Fits:
Porsche 911 1965-77

For Installation Guide CLICK HERE

For 911-CDI+ Dyno Test Results CLICK HERE


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160270700

The product you are viewing cross references to these numbers

Ignition starter sheer bolt.
Need 2 per car. Price is for each.



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1994-98
Porsche 914 1970-76

Click 'zoom in' for large parts diagram.
Diagram ref no 5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9992190170Y

The product you are viewing cross references to these numbers

Ignition starter switch.
Fits: RHD and LHD CARS



Fits:
Porsche 911 1970-89
Porsche 911 (930) Turbo 1975-77
Porsche 964 1990-94
Porsche 993 1994-98
Porsche 944 1985 Onwards
Porsche 928 1978-95
Porsche 914-6 1970-76

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

96461301200

The product you are viewing cross references to these numbers

Ignition starter switch.
Fits: RHD and LHD CARS



Fits:
Porsche 911 1970-89
Porsche 911 (930) Turbo 1975-77
Porsche 964 1990-94
Porsche 993 1994-98
Porsche 944 1985 Onwards
Porsche 928 1978-95
Porsche 914-6 1970-76

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

96461301200

The product you are viewing cross references to these numbers

Rennline Blank key 917 style, in Silver.



Compatible with
Porsche 911 / 912 1969-89
Porsche 964 1989-94
Porsche 993 1994-98
Porsche 914 1970-76

It's the little things in life. Inspired by the infamous 917 race cars of the 70's, our Rennline Key Blanks bring iconic style to your keychain. Made from nickel plated brass, to look the part and last a lifetime.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

I9

The product you are viewing cross references to these numbers

Rennline ignition switch bezel. Porsche 1969-73 911/912 28mm



Fits:
Porsche 911 1969-73
Porsche 912 1969-73

Is your plastic key switch surround faded and scratched up from years of abuse? If so, Rennline has the answer with this beautiful billet aluminium replacement that will last forever and dress up your dash. This surround will also complement our billet aluminium door handles and lock knob sets. Machined out of aircraft grade aluminium and available in silver or black anodized finishes.

Shim for mounting the ignition lock



Fits:
Porsche 911 1965–1986
Porsche 911 Turbo 1975-86
Porsche 914 1970–1976

Click 'Zoom in' for large parts diagram.
Diagram ref no 6

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91134761300

The product you are viewing cross references to these numbers

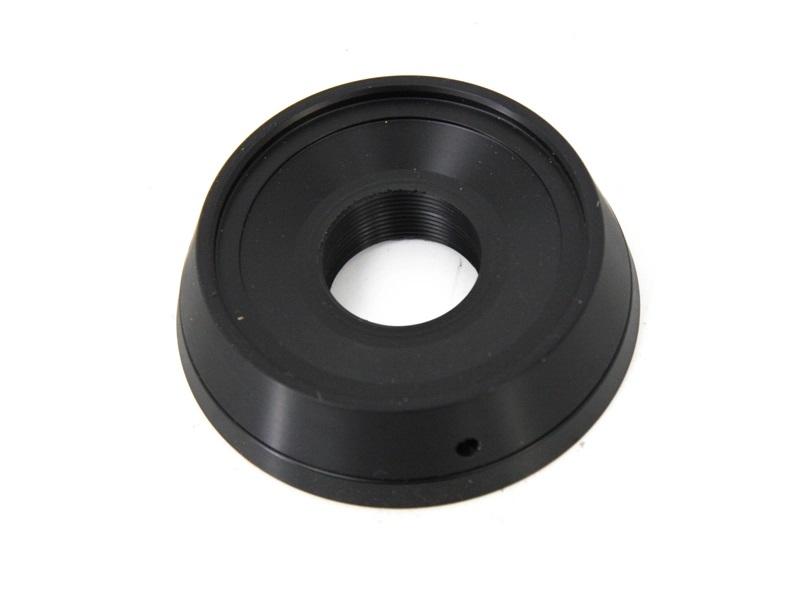

Trim cover for ignition lock.
20mm inner diameter



Fits:
Porsche 911/912 1965-69
Porsche 911 1970-73

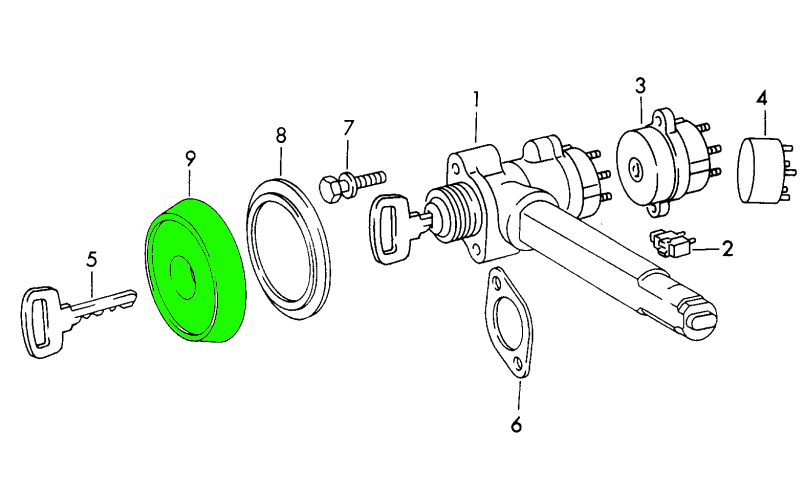

Click 'Zoom in' for large parts diagram.
Diagram ref no 9

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161316002

The product you are viewing cross references to these numbers

Wiring harness for ignition switch.



Fits:
Porsche 911 2.0L-3.0L 08/1969 - 07/1975

Click 'Zoom in' for large parts diagram.
Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201130

The product you are viewing cross references to these numbers

Wiring harness loom ignition switch and hazards warning light.



Fits:
Porsche 911 / 912 - 1969

Featuring original color-coded wiring, this harness is designed to fit precisely like the original. It includes wire tubing and oil-resistant tape, just like the factory version. The terminals are equipped with rubber sleeves for added protection.

Each harness comes with detailed connection instructions for easy installation.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161202206

The product you are viewing cross references to these numbers
