Brake Calipers

930-ERX Rear brake calipers.
1 pair, req'd per car.

We've re-engineered a 930 style caliper with specific enhancements for direct fitment to the 911. Our 930-ERX calipers are an updated version of the venerable 930 brakes which have long been the benchmark for performance.



Fits:
Porsche 911 / 912 1969-89
W/ 3" Caliper Bolt Spacing


The 930 Brake Upgrade

930 brakes have been an awesome upgrade for 911 cars in terms of thermal capacity and pedal feel. The four piston calipers and massive 32mm front / 28mm rear rotors give incredible stopping power.

In addition to excellent stopping power, they have a period correct retro race look, retain the parking brake functionality, and even fit under many 15 inch wheels. This is why 930 brakes have traditionally been the sought-after upgrade for 911 racecars, and high end/high powered street car builds.

However fitting them has traditionally been difficult – requiring custom machining (due to differences in 930/911 caliper bolt spacing), wheel clearance issues, and limited availability.

Our re-engineered 930-ERX type calipers keep everything that's great while fixing all the issues. And they accept readily-available 930 type pads, rotors, and master cylinders.

930-ERX Enhancements over Original 930 Calipers

✓ No caliper machining is required for 911 trailing arm fitment.

✓ Our rear calipers have the correct 3.0 inch bolt spacing and radial position to mount directly onto '69-'89 911/912 trailing arms.

✓ The front and rear caliper cooling fins are low profile such that they do not interfere with Fuchs wheel spokes without the need for wheel spacers.

✓ A modern staggered piston design is used for even pad wear on our 930-ERX calipers. Original 930 calipers used same size pistons, which caused pads to wear in a taper.



930-ERX Fitment and Compatibility

The front calipers have 3.5 inch bolt spacing and bolt directly to front struts as equipped on 911 and 912 cars from '72-'89 and 911 S models prior to '72. Early front struts that have 3.0 caliper bolt spacing can convert to 3.5 inch struts, contact us for details.

The rear calipers have 3.0 bolt spacing for direct fitment to 911 and 912 trailing arms from '69-'89 including aluminium and steel trailing arms.

Front and rear calipers accept standard 930 brake pads and standard 911 brake hoses.

Rear calipers use standard type 930 rotors part 930-352-046-01

Front calipers fit with regular 911 hubs and use early type 930 floating rotors with our hat kit #2190005 (floating) or #2190010 (fixed), or late 930 hubs with late 930 fixed rotors.

Use standard 930 master cylinder on '77-'89 911 cars equipped with brake booster, or our master cylinder kit #2190011 for pre-77 cars with non-boosted brakes.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

G-2190007

The product you are viewing cross references to these numbers

Hexagon nut for rear disc brake.



Fits:
Porsche 911 1965-77

Click 'Zoom in' for large parts diagram.
Diagram ref no 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135297910

The product you are viewing cross references to these numbers

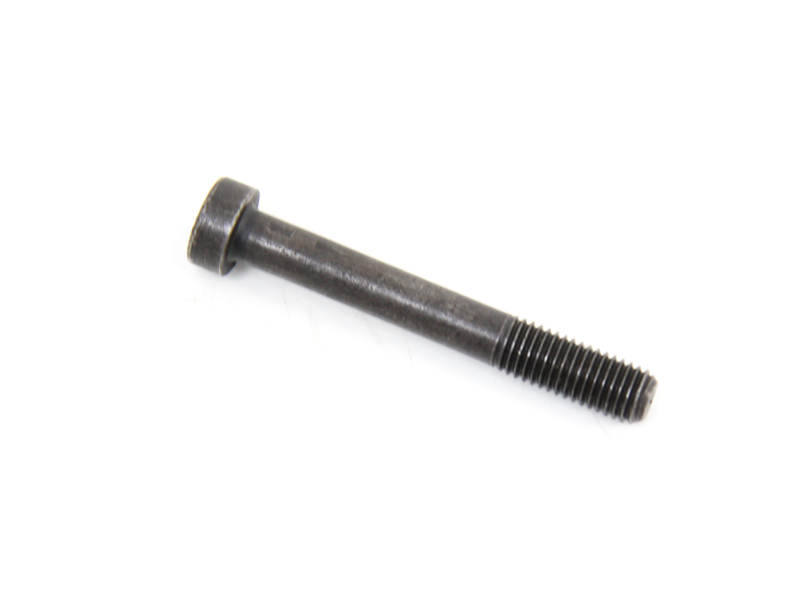

Pan-head bolt for caliper..
Fitted with NON-VENTILATED brake disc.



Fits:
Porsche 912 / 911T 1965-69

Click 'Zoom in' for large parts diagram.
Diagram ref no 12

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135297811

The product you are viewing cross references to these numbers

Hose clip fuel line A9 x 18
Bleed nipple cap for brake caliper and clutch slave cylinder



Fits:
Porsche 356B
Porsche 911 - 1965 to 1989
Porsche 964 - 1989 to 1994
Porsche 993 - 1994 to 1998
Porsche 944 - 1982 to 1989
Porsche 928 - 1978 to 1990

Click 'Zoom in' for large parts diagram.
Diagram ref no 15

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135192712

The product you are viewing cross references to these numbers
