Flywheel / Torque

Speedi Sleeve for Flywheel End Sealing Surface.



Fits: Crankshaft Flywheel Hub End

Fits:
Porsche 356 1950-65
Porsche 912 1965-69

Speedi Sleeves to Repair Worn, Grooved Seal Surfaces

Over time, sealing surfaces will become grooved, making a good seal impossible.The most economical and fastest method of shaft repair is to install the CR Speedi Sleeve. Speedi Sleeve is a precision engineered piece of stainless steel. It's ultra-thin wall design allows it to be used without changing the sel size ans its finish is perfect for lip sealing applications. Speedi Sleeve is built with removable installation flange. The installation tool included in every box allows the seal to be put in. This avoids the possibility of distortion from heat or other installation methods

Dowel Pin For Flywheel. Sold as EACH. 8 required per engine.



Fits:
Porsche 912
Porsche 356

Click 'Zoom in' for large parts diagram.
Diagram ref no 3

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90010900400

The product you are viewing cross references to these numbers

Flywheel Gasket.



Fits:
Porsche 356 (not for CARRERA)
Porsche 912 1965-69

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

50202301

The product you are viewing cross references to these numbers

Flywheel HD gland nut.



Thread count 1.5mm

Fits:
Porsche 356
Porsche 912

Machined from 4140 steel and tested to 700 lb-ft of torque (Porsche factory recommended torque is 400-450 lb-ft).  Fits all 356 and 912 engines.

Note: Each time the gland nut is removed, it must be replaced with a new one.

Click 'Zoom in' for large parts diagram.
Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610202501

The product you are viewing cross references to these numbers

Flywheel for Porsche 356B 1600 C / SC 1960-63
Size: 200mm

Fits:
Porsche 356B 1600 C / SC
Porsche 356C

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610220104

The product you are viewing cross references to these numbers

Flywheel Spacer.



Use only one flywheel spacer to achieve proper crankshaft end play

Fits:
Porsche 356 (not for Super 90)
Porsche 912 1965-69

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

36902107

The product you are viewing cross references to these numbers

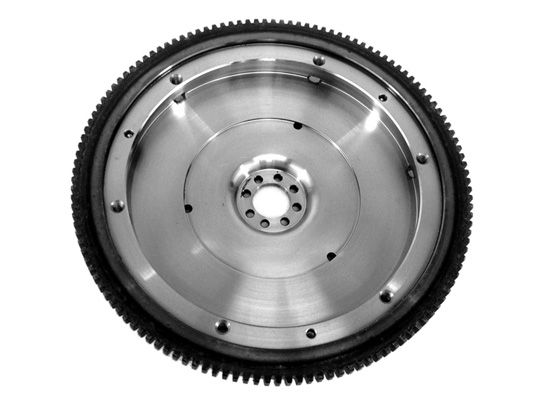

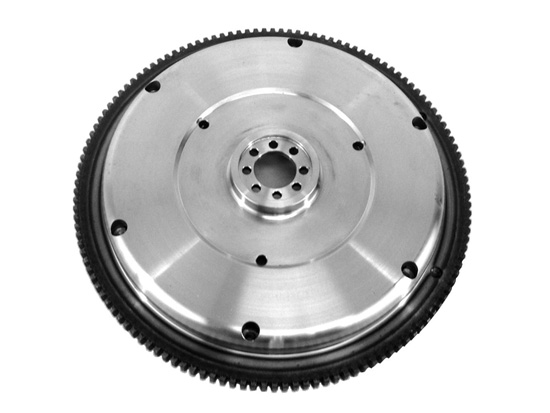

This is a brand new 200mm Conversion Flywheel to install a Porsche 356, 912 and 36HP VW Engine with a later VW Transmission.

Fits:
Porsche 356 / 912

It has a 20.5mm depth and is set up for a 200mm VW clutch. Features a heat treated VW ring gear for a 12v starter motor

Weight: 12LB
Clutch Depth: 20.5mm
No. of Teeth: 130

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

008200F12VW

The product you are viewing cross references to these numbers

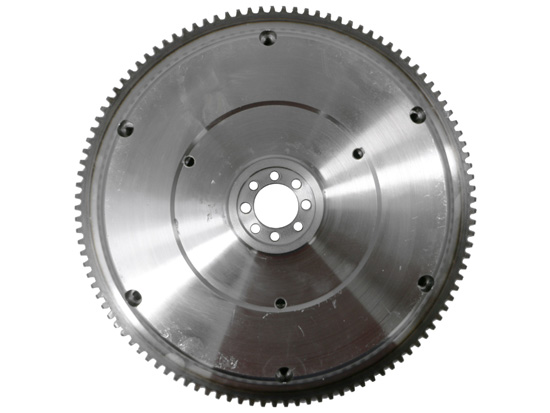

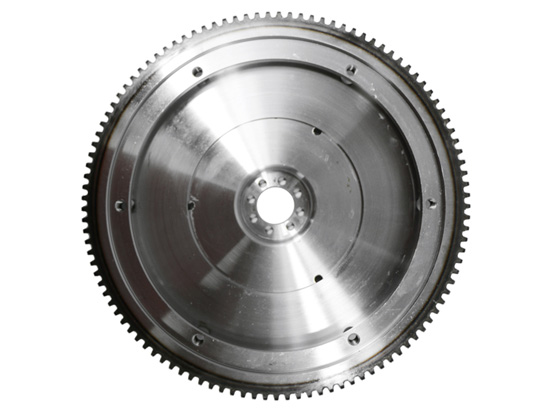

This a brand new forged chromoly flywheel it is manufactured to exact specifications. Works with all 200mm VW Type 1 Clutches.



Fits: for Porsche 356

All flywheels are drilled for 8 dowel pins(SPG Pattern). Features a heat treated ring gear.

Weight: 12LB
Clutch Depth: 20.5mm

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

008200FVW

The product you are viewing cross references to these numbers

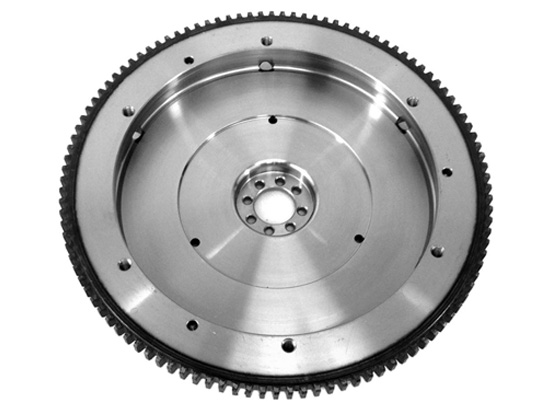

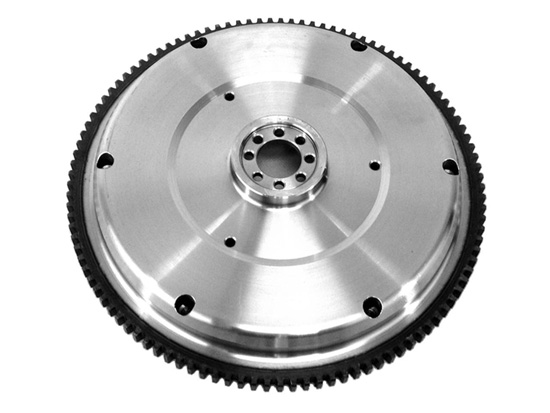

This a brand new forged chromoly flywheel it is manufactured to exact specifications.
Works with OEM Porsche 200mm clutch.



Fits: for Porsche 356

All flywheels are drilled for 8 dowel pins (SPG Pattern). Features a heat treated ring gear.

Weight: 13LB
Clutch Depth: 25mm

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

008200FW

The product you are viewing cross references to these numbers

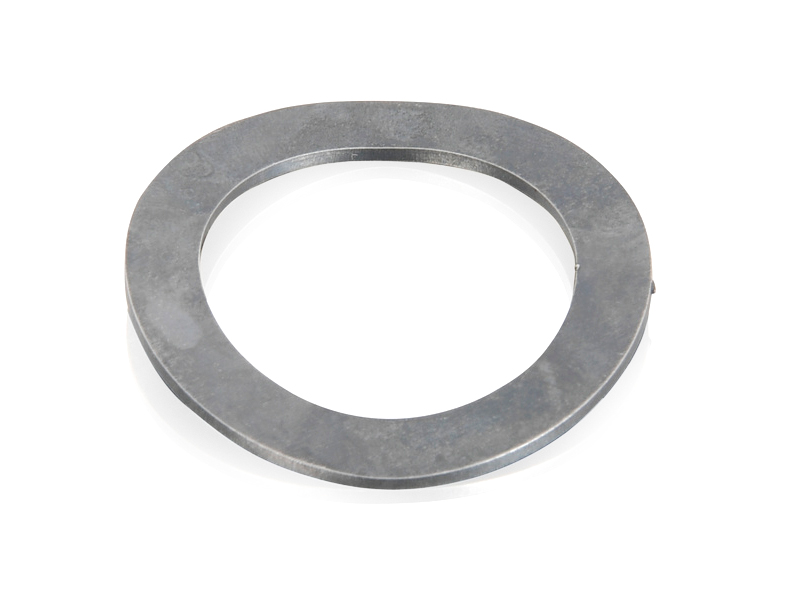

Lock washer for bolting the flywheel to the crankshaft.



Fits:
Porsche 356 (1950 to 1965)
Porsche 911 and 912 (1965 to 1969)

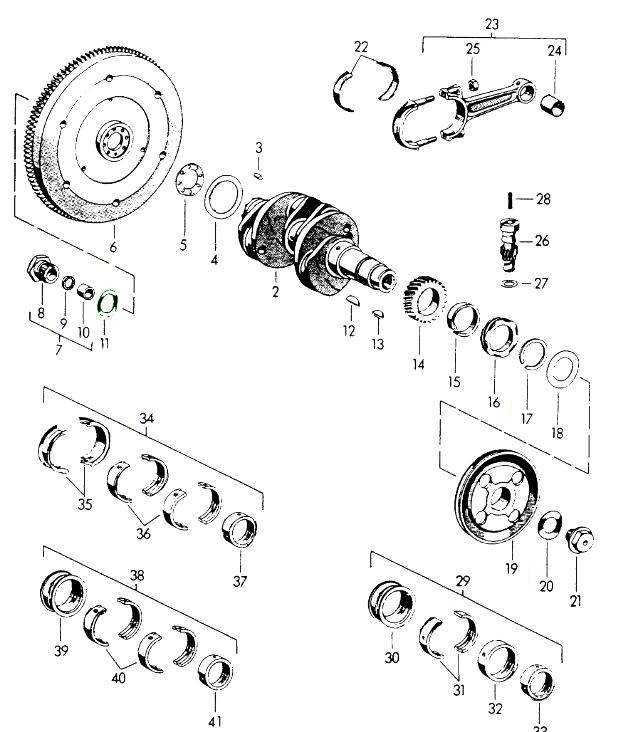

Click 'Zoom in' for large parts diagram.
Diagram ref no 11

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

53902103

The product you are viewing cross references to these numbers
