High Performance Aluminium Intercooler and Pressure Pipe Kit. Porsche 992.1 Carrera / S / 4 / 4S / GTS  ❭  8217KIT

Intercooler and Pressure Pipe Kit – Complete Charge Air System Solution

This complete intercooler and pressure pipe kit is designed for Porsche 992.1 Carrera / Carrera S and GTS 4 models. It provides a comprehensive replacement solution for the entire charge air system, including both intercoolers, two pressure pipes and a throttle body to intercooler seal.

Fits:

• Porsche 992.1 Carrera 2 3.0L 2019-24
• Porsche 992.1 Carrera 4 3.0L 2019-24
• Porsche 992.1 Carrera 2 Cabriolet 3.0L 2019-24
• Porsche 992.1 Carrera 4 Cabriolet 3.0L 2019-24
• Porsche 992.1 Carrera 2S / GTS 3.0L 2019-24
• Porsche 992.1 Carrera 4S / GTS 3.0L 2019-24
• Porsche 992.1 Carrera 2S / GTS Cabriolet 3.0L 2019-24
• Porsche 992.1 Carrera 4S / GTS Cabriolet 3.0L 2019-24
• Porsche 992.1 Targa 4 3.0L 2020-24
• Porsche 992.1 Targa 4S / GTS 3.0L 2020-24

Modern turbocharged Porsche engines rely on a highly efficient and sealed intake system to deliver performance. Over time, components such as intercoolers, plastic pressure pipes and rubber connectors can degrade, leading to boost leaks, reduced cooling efficiency and loss of power. This complete kit replaces all key components in one package to restore performance and reliability.

What This Intercooler & Pressure Pipe Kit Does

The charge air system compresses air via the turbochargers, cools it through intercoolers and delivers it into the engine for combustion.

This kit ensures:

• Efficient cooling of compressed air via both intercoolers
• Consistent and leak-free boost pressure across all pipe connections
• Proper airflow from turbochargers to intake system
• Reduced intake temperatures for improved combustion efficiency
• Reliable sealing and mounting across the entire system

Replacing the full system helps maintain optimal turbo performance and engine efficiency.

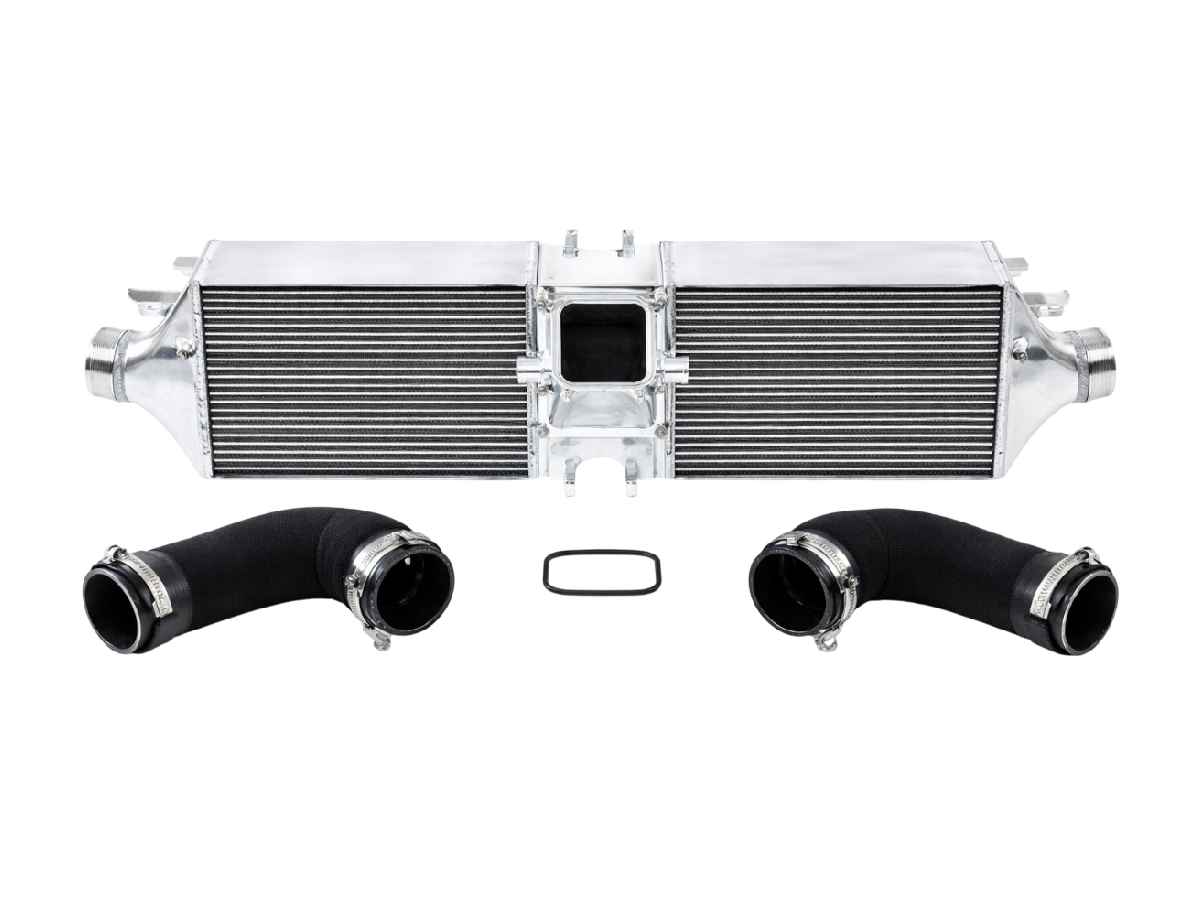

What Is Included in the Kit

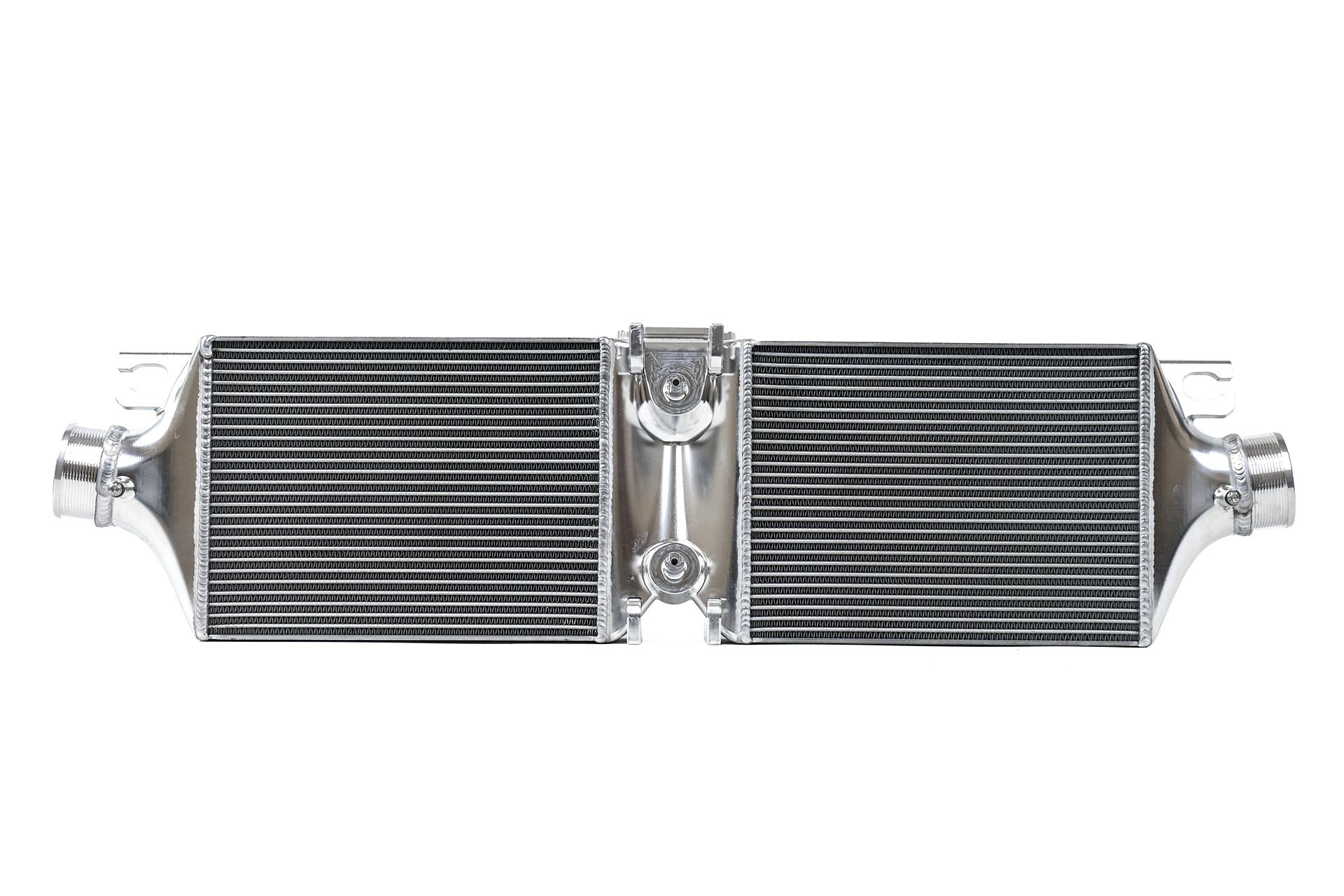

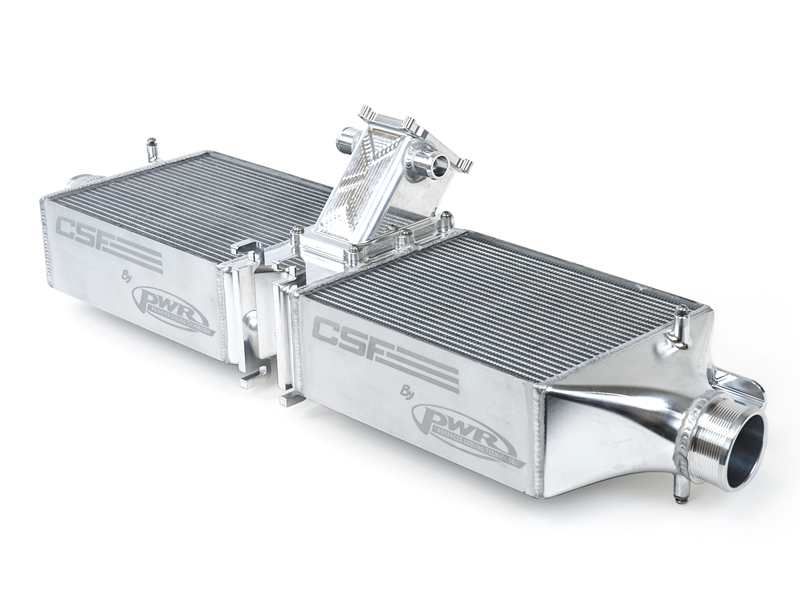

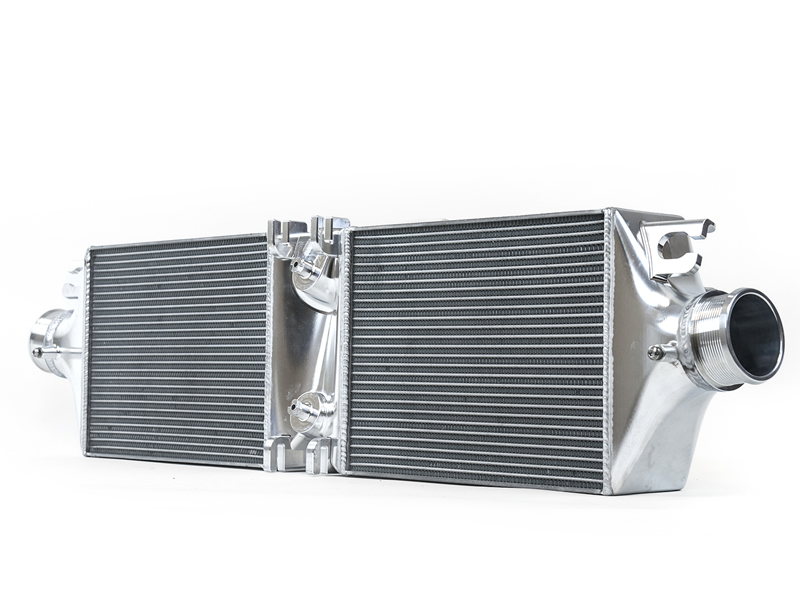

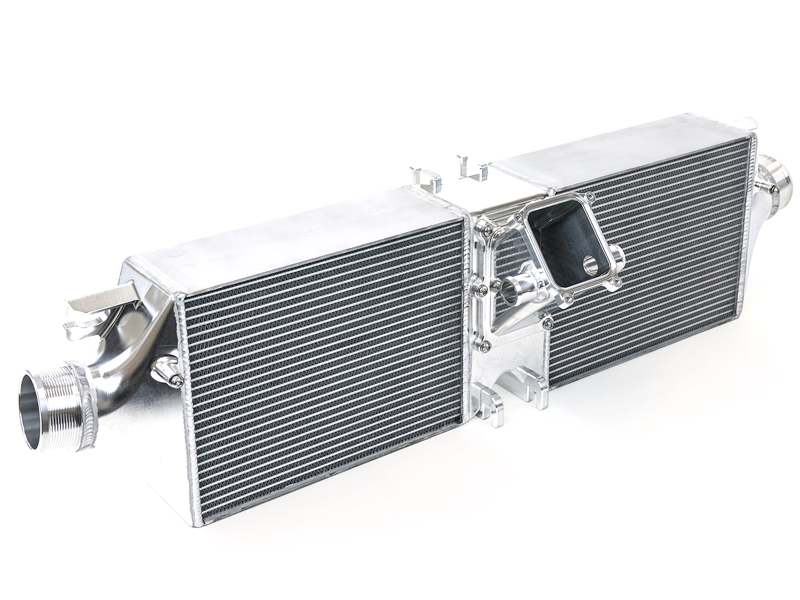

• 2 x Intercoolers (left and right)

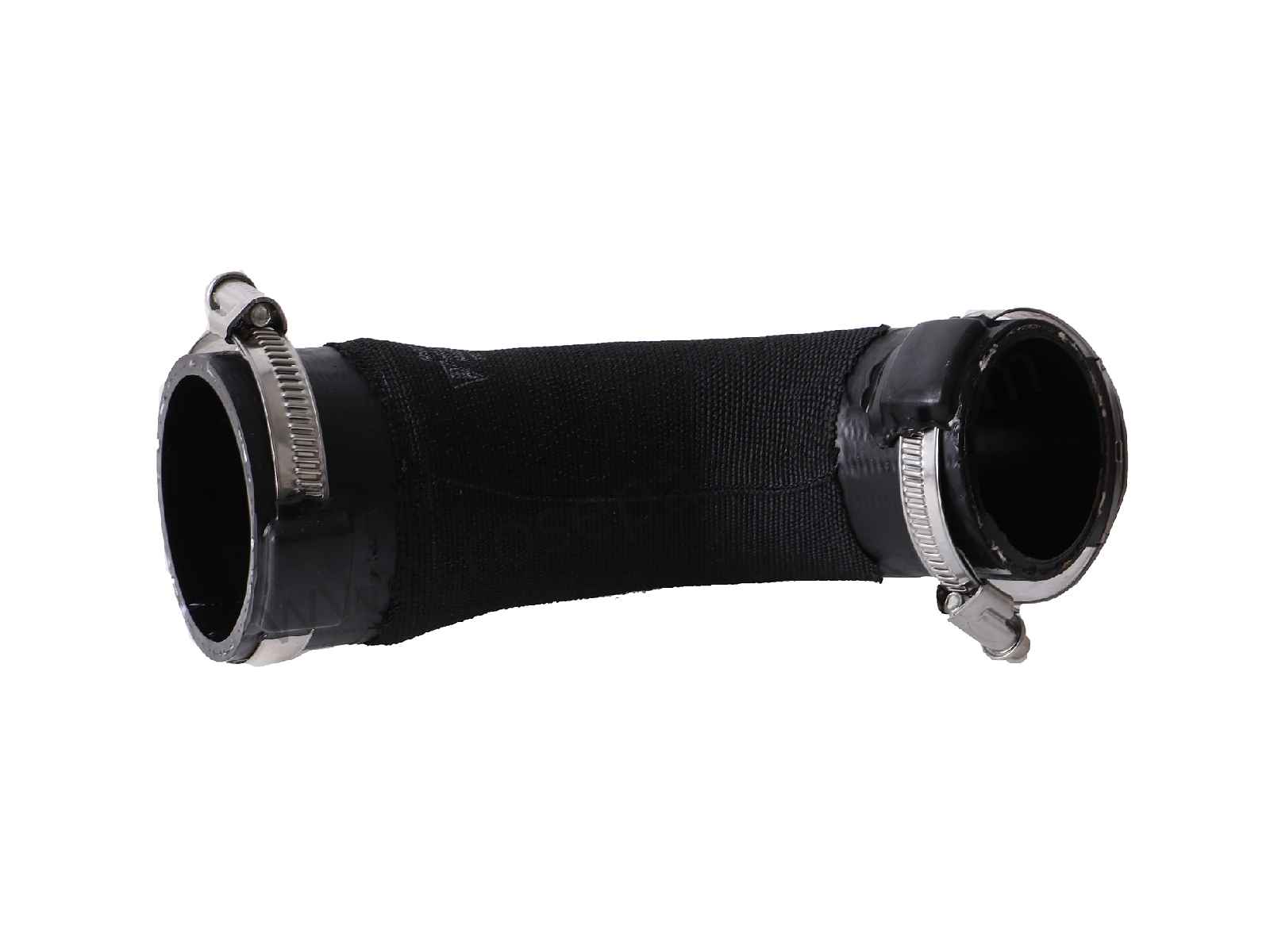

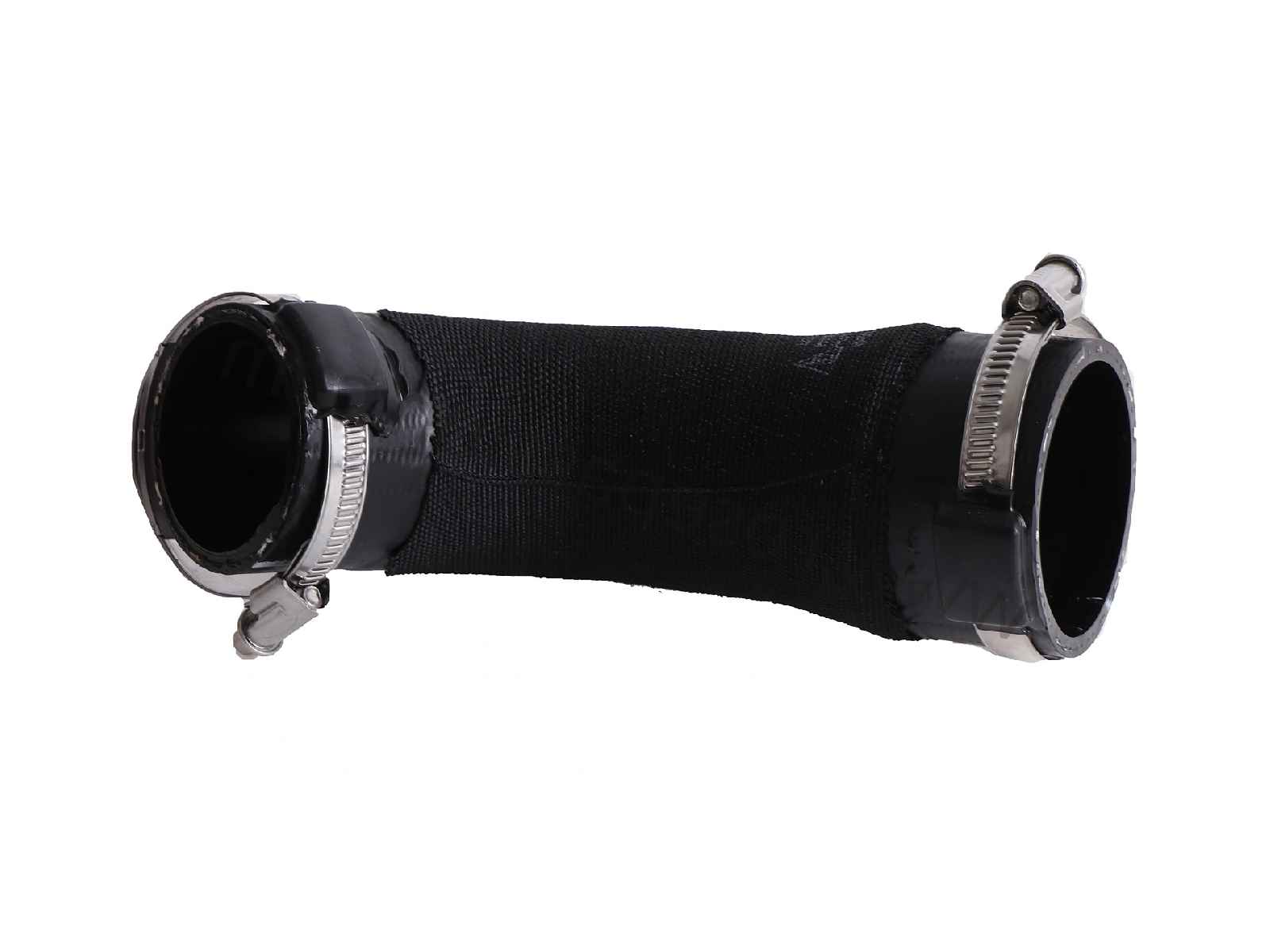

• 1 x Intercooler pressure pipes (charge air pipes)
• 1 x Rubber throttle body to intercooler seal

This complete set replaces all major airflow and connection components within the turbo intake system.

Features
• Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race Conditions – Especially Critical Due to Intercooler Placement in Engine Compartment
• Formula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
• CNC Machined Billet End Tanks
• Highly Engineered, Lightweight Design – Weighing Only 17 lbs.
• 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
• Made in the USA at PWR North America
• OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• R&D and Performance Testing by Industry-Leading Porsche Tuning Companies – M-Engineering & World Motorsports

Why Intercooler and Boost System Components Fail

Turbocharged systems operate under high pressure and extreme temperatures, which leads to wear across multiple components.

Common issues include:

• Cracked or weakened pressure pipes - Pipes can split or degrade over time due to heat and pressure.

• Boost leaks at joints and seals - Connections and sealing surfaces can wear, causing pressure loss.

• Intercooler efficiency loss - Internal contamination or ageing reduces cooling effectiveness.

• Rubber adaptor wear - Rubber components can harden, crack or lose flexibility.

Symptoms of a Failing Charge Air System

• Loss of engine power and acceleration
• Reduced turbo boost pressure
• Hissing noises under load
• Poor throttle response
• Increased fuel consumption
• Engine warning lights related to boost pressure

Replacing all components together ensures a complete and long-lasting solution.

Why Upgrade to a Complete Kit

• All-in-One Replacement - Eliminates the need to diagnose and replace individual failing components.

• Restore Full Performance - Ensures correct boost pressure, airflow and cooling efficiency.

• Prevent Future Failures - Replaces ageing parts across the entire system to avoid repeat repairs.

• Improve Engine Efficiency - Optimised airflow and cooling improve combustion and power delivery.

• Ideal for Preventative Maintenance or Performance Builds - Suitable for both standard maintenance and performance-focused upgrades.
