Belt tensioner / V-belt (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12 - PORSCHE

Click the image numbers to view product info

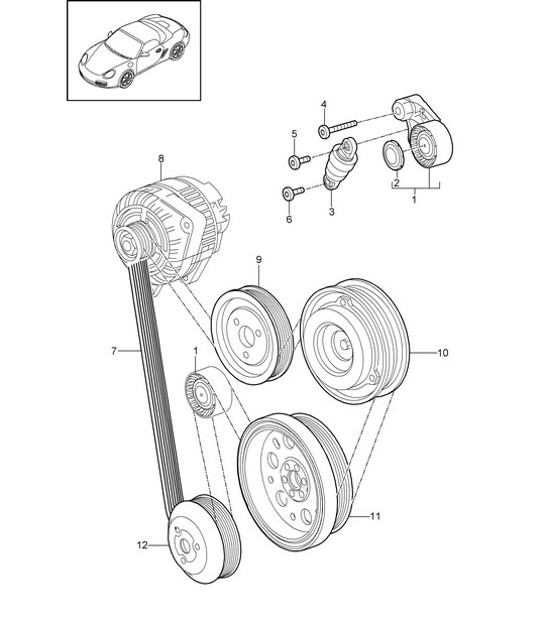

Diagram 101-010 Porsche Cayman S 3.4L 987C 2005-08 Engine SKU: 0PB903308, 1 of 4lever tensioning roller also use:,SKU: 9A110221200, 2 of 4tensioning roller,SKU: PAF008343, 3 of 4round hd. screw,SKU: 94810283900, 4 of 4protective cap SKU: 0PB903308, 1 of 4lever tensioning roller also use:,SKU: 9A110221200, 2 of 4tensioning roller,SKU: PAF008343, 3 of 4round hd. screw,SKU: 94810283900, 4 of 4protective cap SKU: 94810283900, protective cap SKU: 0PB903317, tensioner hydraulic SKU: 9A700803500, hexagon socket flat head bolt SKU: PAF008362, torx screw SKU: PAF008361, torx screw SKU: 9A110221601, v-belt SKU: -, alternator see illustration: 902-005 SKU: -, pulley power-steering pump see illustration: 403-003 SKU: -, pulley compressor see illustration: 813-015 SKU: -, pulley crankshaft see illustration: 102-000 SKU: -, pulley coolant pump see illustration: 105-000 101-010
