Zimmermann

Brake disc rotor, Rear. FORMULA Z.

Zimmermann FORMULA Z brake disc.

Vented, Perforated, Two-piece floating brake disc, Coated
Outer diameter: 380mm
Brake Disc Thickness: 30mm
Height: 74mm
Rim Hole Number: 5-Hole
Bolt Hole Circle Ø: 130mm
Centering Diameter: 98mm


Porsche 992 GT3 - Rear
Porsche 992 GT3 RS - Rear
Porsche 718 Cayman GT4 RS - Rear
Steel Discs

The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

Your advantages:

• Excellent deceleration action and no distortion of friction ring at high temperatures
• Substantial weight saving and therefore less unsprung mass
• Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
• „Hot spots" prevented by optimised design of ventilation channels
• 1:1 exchange of original disc possible
• Not subject to registration: general ABE certification supplied with disc
• No conversion required for brake tuning

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9GT61560

The product you are viewing cross references to these numbers

FRONT Zimmermann FORMULA Z brake disc. 410mm x 38mm

Vented, Perforated, Two-piece floating brake disc, Coated
Outer diameter: 410mm
Brake Disc Thickness: 38mm
Height: 68mm
Rim Hole Number: 5-Hole
Bolt Hole Circle Ø: 130mm
Centering Diameter: 98mm

Porsche 971.1 Panamera - 2017 to 20121 - FRONT
(I1LJ) For cars with 20-inch brake disc, brake caliper painted Red (RoW)
(I1LW) For cars with 20-inch brake disc, brake caliper painted Red (USA)

Porsche 971.2 Panamera Hybrid 2021>> - FRONT
(A8F) "S" equipment
(0J3) Load group 1 FA/2 RA
(0J5) Load group 2 FA/2 RA

The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

Your advantages:
• Excellent deceleration action and no distortion of friction ring at high temperatures
• Substantial weight saving and therefore less unsprung mass
• Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
• "Hot spots" prevented by optimised design of ventilation channels
• 1:1 exchange of original disc possible
• Not subject to registration: general ABE certification supplied with disc
• No conversion required for brake tuning

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

97161530

The product you are viewing cross references to these numbers

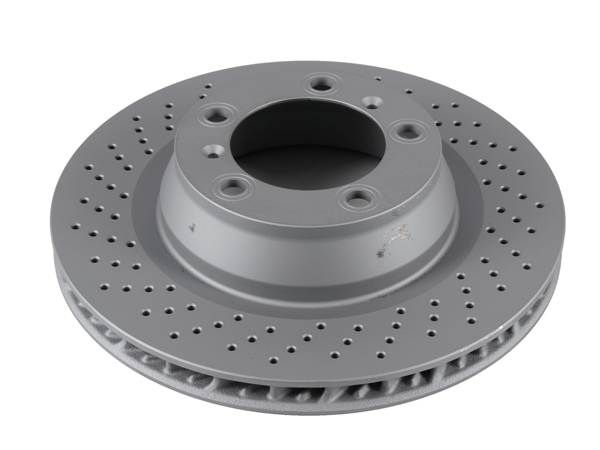

Zimmermann Standard Coat Z Brake disc rotor.

Internally Vented
Surface: Coated
Outer diameter: 360mm
Brake Disc Thickness: 36mm
Brake Disc Minimum Thickness: 34mm
Centering Diameter: 98 mm
Hole Number: 5+1

Porsche 95B.2 Macan (FRONT) 2018-20
Porsche 95B.3 Macan (FRONT) 2021>>
For cars with 18inch brake disc, brake caliper painted Grey
For cars with 18inch brake disc, brake caliper painted Red

Please note: OE brake discs and brake pads are not stocked items and fall under special order terms.


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95B61530

The product you are viewing cross references to these numbers

Zimmermann Formula:R race rear brake pads.
Designed exclusively for cast-iron brake discs

The Formula:R product line is the result of collaboration with the Zimmermann-sponsored racing team.

RACETRACK USE ONLY




Porsche 991.1 Carrera S / GTS 3.8ltr - 2012 to 2016
Porsche 991.1 Carrera S / GTS 3.8ltr - 2012 to 2016 - with PCCB caliper and cast iron disc
Porsche 991.2 Carrera 3.0ltr - 2016 to 2018
Porsche 991.2 Carrera 2S 3.0ltr - 2016 to 2018
Porsche 992 Carrera S 3.0ltr - 2019 Onwards
Porsche 992 Carrera 4S 3.0ltr - 2019 Onwards

Formula:R Brake Pads – for your perfect braking point.

Compound Type:

OZ 10: suitable for long distance series and sprint distances; optimally tuned friction mixture for the rear axle, perfect in combination with the friction mixture OZ 20 or OZ 30 on the front axle.

The mixtures of the friction material of Formula:R brake pads are individually developed in cooperation with our racing team and are successfully tested in endurance racing. The durability of brake discs and brake pads are just as important as a stable friction coefficient, which ensures that the pads are extremely fading-resistant. To adapt the pads to the individual requirements of different drivers, different friction compounds are available for some applications.

Zimmermann has been manufacturing high-quality brake parts at the Sinsheim site for more than 60 years. Our brake parts are used successfully in the Nürburgring Endurance Series (NLS) under the extreme conditions at the Nürburgring and are constantly being further developed.

Made in Germany.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99135294904ZIMFR

The product you are viewing cross references to these numbers

Zimmermann Formula:R race rear brake pads.
Designed exclusively for cast-iron brake discs

The Formula:R product line is the result of collaboration with the Zimmermann-sponsored racing team.

RACETRACK USE ONLY:




Porsche 981 Cayman GT4 - 2015 to 2016
Porsche 718 Cayman GT4 4.0ltr  - 2017 Onwards
Porsche 991.2 GT3 / GT3 RS - 2015 to 2018
Porsche 991.2 GT2 RS - 2018
Porsche 991.2 Speedster
Porsche 991 turbo / turbo S - 2013 to 2018
Porsche 991 R
Porsche 992 Carrera 4S 3.0ltr
Porsche 992 GT3 - 2021 Onwards
Porsche 918 Spyder


Formula:R Brake Pads – for your perfect braking point.

Compound Type:

OZ 10: suitable for long distance series and sprint distances; optimally tuned friction mixture for the rear axle, perfect in combination with the friction mixture OZ 20 or OZ 30 on the front axle.

The mixtures of the friction material of Formula:R brake pads are individually developed in cooperation with our racing team and are successfully tested in endurance racing. The durability of brake discs and brake pads are just as important as a stable friction coefficient, which ensures that the pads are extremely fading-resistant. To adapt the pads to the individual requirements of different drivers, different friction compounds are available for some applications.

Zimmermann has been manufacturing high-quality brake parts at the Sinsheim site for more than 60 years. Our brake parts are used successfully in the Nürburgring Endurance Series (NLS) under the extreme conditions at the Nürburgring and are constantly being further developed.

Made in Germany

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99135294701ZIMFR

The product you are viewing cross references to these numbers

Zimmermann Formula:R race rear brake pads.
Designed exclusively for cast-iron brake discs

The Formula:R product line is the result of collaboration with the Zimmermann-sponsored racing team.

RACETRACK USE ONLY:




Porsche 718 Boxster / Cayman 2.0ltr - 2017 Onwards
Porsche 718 Boxster S / Cayman S 2.5ltr - 2017 Onwards
Porsche 718 Boxster T / Cayman T 2.0ltr
Porsche 718 Boxster GTS / Cayman GTS 2.5ltr
Porsche 718 Boxster GTS / Cayman GTS 4.0ltr
Porsche 718 Boxster Spyder / Cayman GT4 4.0ltr - with PCCB Calipers and cast iron discs

Formula:R Brake Pads – for your perfect braking point.

Compound Type:

OZ 10: suitable for long distance series and sprint distances; optimally tuned friction mixture for the rear axle, perfect in combination with the friction mixture OZ 20 or OZ 30 on the front axle

The mixtures of the friction material of Formula:R brake pads are individually developed in cooperation with our racing team and are successfully tested in endurance racing. The durability of brake discs and brake pads are just as important as a stable friction coefficient, which ensures that the pads are extremely fading-resistant. To adapt the pads to the individual requirements of different drivers, different friction compounds are available for some applications.

Zimmermann has been manufacturing high-quality brake parts at the Sinsheim site for more than 60 years. Our brake parts are used successfully in the Nürburgring Endurance Series (NLS) under the extreme conditions at the Nürburgring and are constantly being further developed.

Made in Germany

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

98735293903ZIMFR

The product you are viewing cross references to these numbers

Zimmermann Formula:R race front brake pads.
Designed exclusively for cast-iron brake discs

The Formula:R product line is the result of collaboration with the Zimmermann-sponsored racing team.

RACETRACK USE ONLY.




Porsche 718 Boxster / Cayman 2.0ltr - 2017 Onwards
Porsche 718 Boxster S / Cayman S 2.5ltr - 2017 Onwards
Porsche 718 Boxster T / Cayman T 2.0ltr
Porsche 718 Boxster GTS / Cayman GTS 2.5ltr
Porsche 718 Boxster GTS / Cayman GTS 4.0ltr
Porsche 718 Boxster Spyder / Cayman GT4 4.0ltr
Porsche 991.1 Carrera / Carrera 4 3.4ltr - 2012 to 2016
Porsche 991.1 Carrera S / Carrera 4S 3.8ltr - 2012 to 2016
Porsche 991.2 Carrera / Carrera 4 3.0ltr - 2016 to 2018
Porsche 991.2 Carrera S / Carrera 4S 3.0ltr - 2016 to 2018
Porsche 991.2 Carrera GTS / Carrera 4 GTS 3.0ltr - 2016 to 2018
Porsche 992 GT3 - 2019 Onwards

Formula:R Brake Pads – for your perfect braking point.

Compound Type:

OZ 20: suitable for long distance series; extremely high stability of the friction coefficient over a wide temperature range
OZ 30: suitable for sprint distances; highest friction coefficient with good wear properties of brake disc and brake pad

The mixtures of the friction material of Formula:R brake pads are individually developed in cooperation with our racing team and are successfully tested in endurance racing. The durability of brake discs and brake pads are just as important as a stable friction coefficient, which ensures that the pads are extremely fading-resistant. To adapt the pads to the individual requirements of different drivers, different friction compounds are available for some applications.

Zimmermann has been manufacturing high-quality brake parts at the Sinsheim site for more than 60 years. Our brake parts are used successfully in the Nürburgring Endurance Series (NLS) under the extreme conditions at the Nürburgring and are constantly being further developed.

Made in Germany

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

98135193904ZIMFR

The product you are viewing cross references to these numbers

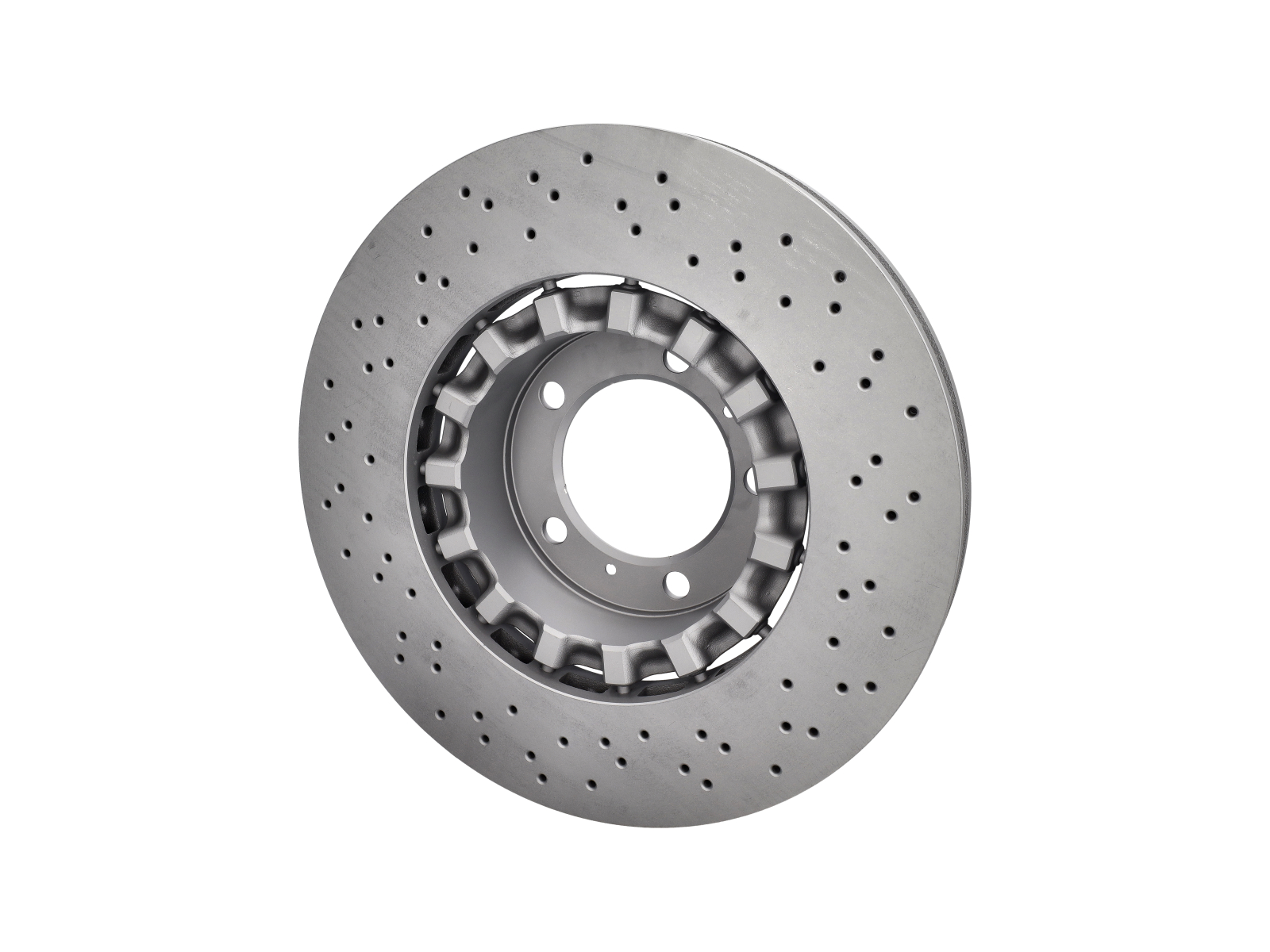

Two piece Zimmermann Formula:R front brake disc rotor.
For cars WITOUT Porsche Ceramic Brakes (PCCB)

Internally Vented, Perforated, Coated
Outer diameter: 380 mm
Brake Disc Thickness: 34 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 98 mm
Total Height: 69 mm

For Track Use Only




Porsche 981 Cayman GT4 - 2015 to 2016 - FRONT


The Formula:R product line is the result of collaboration with the Zimmermann-sponsored racing team. Formula:R composite brake discs sometimes replace very expensive carbon-ceramic brake systems and are intended exclusively for use on the racetrack.
The composite technology with a light metal pot results in a significant weight reduction. This weight reduction leads to a clearly improved driving performance, since the brake discs are part of the unsprung mass. The ratio of unsprung to sprung mass is thereby increased in favor of the sprung mass. The traction and thus the control over the vehicle are noticeably improved.

Your advantages:

• Proven in racing
• Specially coated light metal pot and high-carbon cast friction ring with optimal thermal conductivity
• Highest performance of the disc even when it is temporarily hot
• Optimal ventilation and maximum stability thanks to sloping ribs in the ventilation channel
• Partly as a replacement for carbon-ceramic brake discs
• Free radial expansion through social connection of pot and friction ring
• Brake fading is avoided
• Sporty look with Z-grooves
• Developed exclusively for the race track

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

98135140

The product you are viewing cross references to these numbers
