Zimmermann

Zimmermann Standard Coat Z Brake disc rotor.  Sold as EACH. fits rear left or right.

Externally Vented, Coated
Outer diameter: 358 mm
Brake Disc Thickness: 28 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 85 mm
Weight: 9.8 kg
Hole Pitch / Number: 7/5


Porsche Cayenne (955) V8 4.5L TURBO S REAR
Porsche Cayenne (958) V8 4.8L TURBO REAR
** For cars with 457mm/18" disc and RED calipers
option code: I1KP or I1KU

Please note:  discs are not sided. They fit left or right side of the car. Brake disc rotors are priced each.

Description:
All the brake discs and brake drums in Zimmermann standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.

Your advantages:
• Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
• Consistently high product quality
• Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
• Over 50 years experience in brake disc manufacture

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95835240150ZIM

The product you are viewing cross references to these numbers

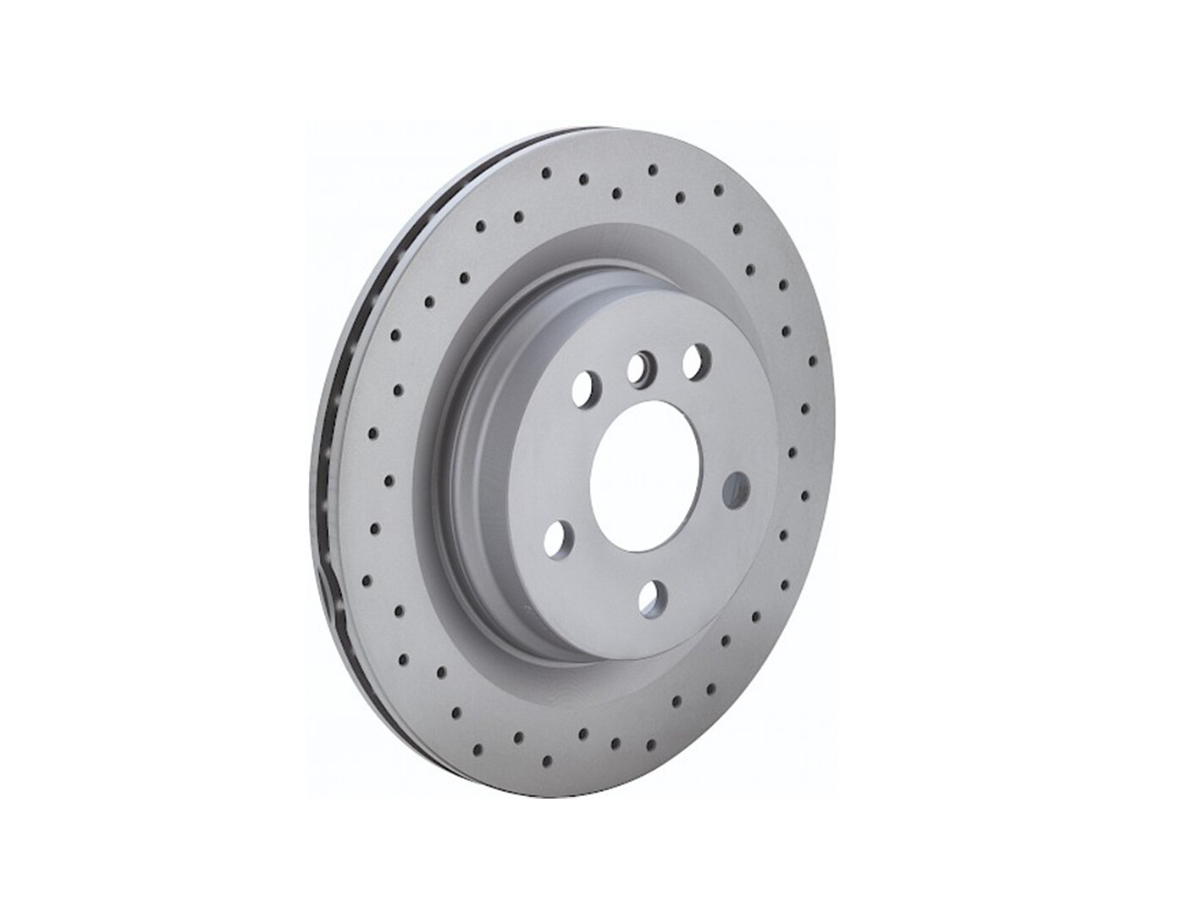

Zimmermann SPORT brake disc COAT Z, CROSS DRILLED.
Cross drilled brake discs upgrade for better cooling & braking.

Internally Vented, Perforated, Coated
Outer diameter: 350 mm
Brake Disc Thickness: 34 mm
Bolt Hole Circle Ø: 112 mm
Centering Diameter: 68 mm
Weight: 12.2 kg
Hole Pitch / Number: 6/5




Porsche 95B.1 Macan 3.0L Petrol / 3.0L Diesel 2014-18
(FRONT)


The Zimmermann Sport Brake Disc was developed as a result of experience of brake discs in series-production vehicles in connection with racing. The brake system is optimised by combining high-quality cast materials with a perforated braking surface.

Your advantages:

• Better wet braking performance by permanent expulsion of brake dust and water
• Sporty look
• Because of the anti-corrosion protection Coat Z better finish - especially of the hub and the outer diameter
• Noticeable improvement in the braking power of your car
• Prevention of brake fade
• Countersinking of holes doubles up as wear indicator
• 1:1 exchange of original disc possible
• No additional adaptions necessary
• Not subject to registration: general ABE certification supplied with disc

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95B61530

The product you are viewing cross references to these numbers

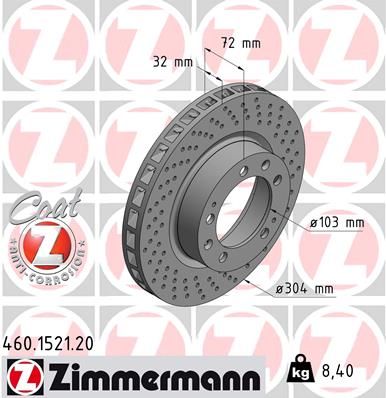

Zimmermann SPORT brake disc COAT Z, CROSS DRILLED.
Cross drilled brake discs upgrade for better cooling & braking.

Internally Vented, Perforated, Coated
Outer diameter: 304 mm
Brake Disc Thickness: 32 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 103 mm
Weight: 8.1 kg
Hole Pitch / Number: 9/5




Porsche 944 1989>> Turbo/ S M758 FRONT
Porsche 944S2 Cars with MO30 1990>> FRONT
Porsche 928 S4 1987-91 FRONT


The Zimmermann Sport Brake Disc was developed as a result of experience of brake discs in series-production vehicles in connection with racing. The brake system is optimised by combining high-quality cast materials with a perforated braking surface.

Your advantages:

• Better wet braking performance by permanent expulsion of brake dust and water
• Sporty look
• Because of the anti-corrosion protection Coat Z better finish - especially of the hub and the outer diameter
• Noticeable improvement in the braking power of your car
• Prevention of brake fade
• Countersinking of holes doubles up as wear indicator
• 1:1 exchange of original disc possible
• No additional adaptions necessary
• Not subject to registration: general ABE certification supplied with disc

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

92835104

The product you are viewing cross references to these numbers

Zimmermann Standard Coat Z Brake disc rotor.

Internally Vented, Coated
Outer diameter: 304 mm
Brake Disc Thickness: 32 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 103 mm
Weight: 8.1 kg
Hole Pitch / Number: 9/5




Porsche 944 1989>> Turbo/ S M758 FRONT
Porsche 944S2 Cars with MO30 1990>> FRONT
Porsche 928 S4 1987-91 FRONT


Description:

All the brake discs and brake drums in Zimmermann standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.

Your advantages:

• Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
• Consistently high product quality
• Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
• Over 50 years experience in brake disc manufacture

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

92835104

The product you are viewing cross references to these numbers

Zimmermann Standard Coat Z Brake disc rotor.

Internally Vented, Coated
Outer diameter: 360 mm
Brake Disc Thickness: 36 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 85 mm
Weight: 13.5 kg
Hole Pitch / Number: 6/5




Porsche Cayenne (958) V6 3.0L HYBRID FRONT
Porsche Cayenne (958) V8 4.2L S DIESEL FRONT
Porsche Cayenne (958) V8 4.8L S FRONT
*For cars with 457mm/18" disc and SILVER calipers
option code: I1LL / I1LU


Description:

All the brake discs and brake drums in Zimmermann standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.

Your advantages:

• Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
• Consistently high product quality
• Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
• Over 50 years experience in brake disc manufacture

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95835140

The product you are viewing cross references to these numbers

Zimmermann Standard Coat Z Brake disc rotor.

Internally Vented, Coated
Outer diameter: 350 mm
Brake Disc Thickness: 34 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 85 mm
Weight: 12.1 kg
Hole Pitch / Number: 6/5


Porsche Cayenne (955) MKI 4.5L S FRONT
Porsche Cayenne (955) MKI 4.5L GTS FRONT
Porsche Cayenne (955) MKI 4.5L TURBO FRONT

Porsche Cayenne (957) MKII 4.8L S FRONT

Porsche Cayenne (958) MKIII V6 3.6L FRONT
Porsche Cayenne (958) MKIII 3.0L DIESEL FRONT

*For cars with 457mm/18" disc and RED calipers
*option code: I1LM


Description:

All the brake discs and brake drums in Zimmermann standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.

Your advantages:

• Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
• Consistently high product quality
• Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
• Over 50 years experience in brake disc manufacture

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95535140

The product you are viewing cross references to these numbers

Zimmermann Standard Coat Z Brake disc rotor.

Internally Vented, Coated
Outer diameter: 330 mm
Brake Disc Thickness: 32 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 85 mm
Weight: 11.1 kg
Hole Pitch / Number: 6/5


Porsche Cayenne (955) V6 3.2L MKI FRONT
Porsche Cayenne (957) V6 3.6L MKII FRONT
Porsche Cayenne (957) 3.0L DIESEL MKII FRONT
For cars with 430mm/17" disc and BLACK calipers
*option code: I1LK


Description:

All the brake discs and brake drums in Zimmermann standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.

Your advantages:

• Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
• Consistently high product quality
• Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
• Over 50 years experience in brake disc manufacture

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95535140

The product you are viewing cross references to these numbers

Zimmermann FRONT Standard Coat Z Brake disc rotor.

Porsche 9J1.1 Taycan - 2020 to 2024
for cars with: sports equipment (option code: A8F)
front brake discs for 18" wheels, brake caliper in Red
** option code: 1LR - disc brakes in front, with integrated backing plate
** option code: 1LS - disc brakes in front, with integrated backing plate

and for cars with: comfort equipment (option code: A8C)
front brake discs for 17" wheels, brake caliper in Black
** option code: 1LS - disc brakes in front, with integrated backing plate

Porsche 9J1.2 Taycan - 2024 Onwards
for cars with: sports equipment (option code: A8F)
front brake discs for 18" wheels, brake caliper in Red
** option code: 1LR - disc brakes in front, with integrated backing plate
** option code: 1LS - disc brakes in front, with integrated backing plate

and for cars with: comfort equipment (option code: A8C)
front brake discs for 17" wheels, brake caliper in Black
** option code: 1LS - disc brakes in front, with integrated backing plate

Porsche 9YA Cayenne - 2018 Onwards
for cars with Option Codes
1ZB - Front disc brake, 18" disc brake, brake calliper painted Green, North America
1ZJ - Front disc brake, disc diameter 18 inches, brake calliper painted Green
1ZR - Front disc brake, disc diameter 18 inches, brake calliper painted Black (RoW)
1ZS - Front disc brake, disc diameter 18 inches, brake calliper painted Black (NAR)

Internally Vented, Coated
Outer diameter: 360 mm
Brake Disc Thickness: 36 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 98 mm
Weight: 13.3 kg
Hole Pitch / Number: 7/5

Description:
All the brake discs and brake drums in Zimmermann standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.

Your advantages:

• Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
• Consistently high product quality
• Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
• Over 50 years experience in brake disc manufacture

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9J161530

The product you are viewing cross references to these numbers

Zimmermann REAR Standard Coat Z Brake disc rotor.

Fits:
Porsche 9YA Cayenne 2018>> - REAR
(1KS) - For cars with Rear brake discs 18", brake caliper painted Green
(2EI) - For cars with Rear brake discs 18", brake caliper painted Black
(2EN) - For cars with Rear brake discs 19", brake caliper painted Red

Porsche (9J1) Taycan 2020>>
Cars with Basic equipment, Rear brake discs 17", brake caliper painted Black

Porsche (9J1) Taycan 2020>>
Cars with Sports equipment (A8F), Rear brake discs 18", brake caliper painted Red

Please note: Those discs are not sided. They fit left or right side of the car. Brake disc rotors are priced each.

Internally Vented, Coated
Outer diameter: 358 mm
Brake Disc Thickness: 28 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 98 mm
Weight: 9.8 kg
Hole Pitch / Number: 8/5

Description:

All the brake discs and brake drums in Zimmermann standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.

Your advantages:

• Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
• Consistently high product quality
• Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
• Over 50 years experience in brake disc manufacture

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9Y0615601BZIM

The product you are viewing cross references to these numbers

Zimmermann FORMULA Z brake disc.

Vented, Slotted, Two-piece floating brake disc, Coated
Outer diameter: 380 mm
Brake Disc Thickness: 30 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 98 mm
Weight: 11.1 kg
Hole Pitch / Number: 7/5


Porsche 971.1 Panamera 2017-21 - REAR
*** For cars with Short Wheel Base
(I1KC) For cars with 20-inch rear brake disc, brake caliper painted Red,
(2EG) For cars with 20-inch rear brake disc, brake caliper painted Red, NAR

The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

Your advantages:
• Excellent deceleration action and no distortion of friction ring at high temperatures
• Substantial weight saving and therefore less unsprung mass
• Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
• „Hot spots" prevented by optimised design of ventilation channels
• 1:1 exchange of original disc possible
• Not subject to registration: general ABE certification supplied with disc
• No conversion required for brake tuning

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

97161560

The product you are viewing cross references to these numbers

Zimmermann FORMULA Z brake disc.

Vented, Slotted, Two-piece floating brake disc, Coated
Outer diameter: 390 mm
Brake Disc Thickness: 38 mm
Bolt Hole Circle Ø: 112 mm
Centering Diameter: 68 mm
Weight: 14.1 kg
Hole Pitch / Number: 6/5


Porsche Macan Turbo 440Bhp (FRONT)
Cars with factory power kit

The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

Your advantages:
• Excellent deceleration action and no distortion of friction ring at high temperatures
• Substantial weight saving and therefore less unsprung mass
• Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
• „Hot spots" prevented by optimised design of ventilation channels
• 1:1 exchange of original disc possible
• Not subject to registration: general ABE certification supplied with disc
• No conversion required for brake tuning

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95B61530

The product you are viewing cross references to these numbers

Zimmermann FORMULA Z brake disc.

Vented, Two-piece floating brake disc, Coated
Outer diameter: 390 mm
Brake Disc Thickness: 38 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 85 mm
Weight: 13.8 kg
Hole Pitch / Number: 6/5


Porsche Cayenne (958) V8 4.8L TURBO FRONT
For cars with 482mm/19" disc and RED calipers
*option code: I1LH

The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

Your advantages:
• Excellent deceleration action and no distortion of friction ring at high temperatures
• Substantial weight saving and therefore less unsprung mass
• Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
• „Hot spots" prevented by optimised design of ventilation channels
• 1:1 exchange of original disc possible
• Not subject to registration: general ABE certification supplied with disc
• No conversion required for brake tuning

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95835140

The product you are viewing cross references to these numbers

Zimmermann FORMULA Z brake disc.

Vented, Perforated, Two-piece floating brake disc, Coated
Outer diameter: 380 mm
Brake Disc Thickness: 30 mm
Bolt Hole Circle Ø: 130 mm
Centering Diameter: 98 mm
Weight: 11 kg
Hole Pitch / Number: 7/5


** For cars with central locking wheels.
Porsche 991.1 GT3
Porsche 991.1 GT3 RS

Porsche 991.2 GT3
Porsche 991.2 GT3 RS
Porsche 991.2 R
Not for cars with ceramic brake (PCCB)

The Zimmermann Formula Zbrake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

Your advantages:
• Excellent deceleration action and no distortion of friction ring at high temperatures
• Substantial weight saving and therefore less unsprung mass
• Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
• „Hot spots" prevented by optimised design of ventilation channels
• 1:1 exchange of original disc possible
• Not subject to registration: general ABE certification supplied with disc
• No conversion required for brake tuning

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99135240

The product you are viewing cross references to these numbers
