H&R

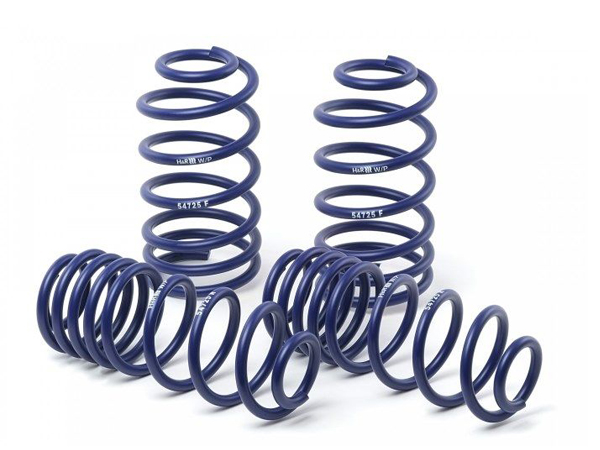

H&R spring sets offer an inexpensive but high quality possibility to experience sportivity by yourself.



Typ 970 only for cars with steel suspension

Lowers car by: 35mm

Fits:
Porsche 970 Panamera 4 09/2009>> (all except Turbo and Hybrid)

NOTE: Please state chassis-number by ordering.

Ultra high performance cars like the Porsche Carrera GT, 996 GT II and GT III are equipped with H&R springs, while Mercedes Benz chose them for its supercar, the CLK DTM AMG which is directly derived from the DTM CLK. The use of high tension steel and the complete certification according to the requirements of DIN EN ISO 9001 allow an enormous flexibility at highest quality.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

28941-1

The product you are viewing cross references to these numbers

H&R spring sets offer an inexpensive but high quality possibility to experience sportivity by yourself.



Typ 92A/92AN, Not for Hybrid/Turbo Models
only for cars with steel suspension

Lowers car by: 30mm

Fits:
Porsche 958 Cayenne V6
Porsche 958 Diesel
Porsche 958 Cayenne S V8

NOTE: Please state chassis-number by ordering.


Ultra high performance cars like the Porsche Carrera GT, 996 GT II and GT III are equipped with H&R springs, while Mercedes Benz chose them for its supercar, the CLK DTM AMG which is directly derived from the DTM CLK. The use of high tension steel and the complete certification according to the requirements of DIN EN ISO 9001 allow an enormous flexibility at highest quality.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

28938-1

The product you are viewing cross references to these numbers

For cars with air suspension.(ETS)
Lowers car by: 40mm



Fits:
Porsche 955 Cayenne V6 2003>>
Porsche 955 Cayenne S V8 2003>>


The H&R electronic lowering module ETS is a product for cars which have an OE air- or ABC-suspension. By using the H&R ETS module, the car is lowered by approx 40mm, which does not only change the center of gravity but also optimize the driving dynamics as well as the driving safety. A sporty performance and harmonic optics is given without mechanical work. The H&R ETS module consists of an electronic hardware- module including plug connectors, a TÜV approval and a detailed mounting instruction. The H&R ETS module can be re-installed easily.


NOTE: Please state chassis-number by ordering.

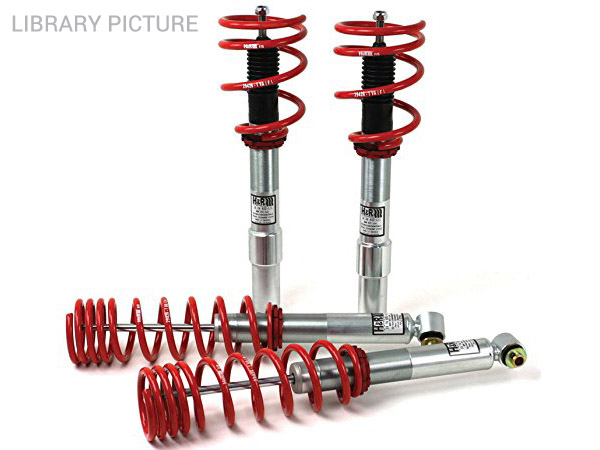

H&R Adjustable Monotube Suspension kit

Fits:
Porsche 996 GT3 / GT3RS 2006>>

Lowers car by: FT 15-35mm / RR 15-35mm

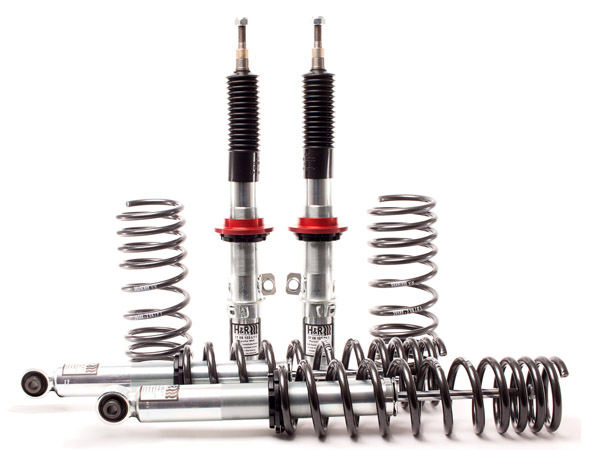

H&R height adjustable coil overs are designed for every driver who wants to realize their sporty ambitions with superior technical suspension solutions.

Decades of suspension experience are realized here: Development and production of high tension springs and shock absorbers is done at H&R.
All parts are produced after OE standards. High quality monotube-shock absorber technique is combined with individually tuned springs and delivers a convincing lowering, a good driving experience without loosing the necessary comfort.

*For GT3 models with single (instead of double) strut clamp on the front, the package for sway bar attachment HR80-37-X0996A01 is required.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

32996-1

The product you are viewing cross references to these numbers

H&R height adjustable coil overs are designed for every driver who wants to realize their sporty ambitions with superior technical suspension solutions.



Fits:
Porsche 996 GT2 2000>>

Lowers car by: FT 15-30mm / RR 15-35mm

Decades of suspension experience are realized here: Development and production of high tension springs and shock absorbers is done at H&R.
All parts are produced after OE standards. High quality monotube-shock absorber technique is combined with individually tuned springs and delivers a convincing lowering, a good driving experience without loosing the necessary comfort.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

32996-2

The product you are viewing cross references to these numbers

H&R spring sets offer an inexpensive but high quality possibility to experience sportivity by yourself.



Lowers car by: 20mm

Fits:
Porsche 997 Turbo 06/2006>>

Ultra high performance cars like the Porsche Carrera GT, 996 GT II and GT III are equipped with H&R springs, while Mercedes Benz chose them for its supercar, the CLK DTM AMG which is directly derived from the DTM CLK. The use of high tension steel and the complete certification according to the requirements of DIN EN ISO 9001 allow an enormous flexibility at highest quality.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

29111-1

The product you are viewing cross references to these numbers

H&R spring sets offer an inexpensive but high quality possibility to experience sportivity by yourself.



Lowers car by: 20-25mm

Fits:
Porsche 997 C4 / C4S 11/2005>>

NOTE: For cars with or without PASM and without OE sports suspension (M030)

Ultra high performance cars like the Porsche Carrera GT, 996 GT II and GT III are equipped with H&R springs, while Mercedes Benz chose them for its supercar, the CLK DTM AMG which is directly derived from the DTM CLK. The use of high tension steel and the complete certification according to the requirements of DIN EN ISO 9001 allow an enormous flexibility at highest quality.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

29188-2

The product you are viewing cross references to these numbers

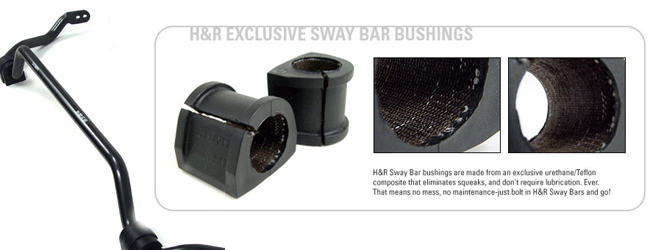

H&R Sway Bars are the perfect compliment to H&R Springs, Coil Overs, Performance Shocks and Cup Kits.



Front & Rear Anti Roll Bar:
- Front - 26mm (adjustable in 3 places)
- Rear - 24mm (adjustable in 3 places)

Please note: if bushes are not included with the kit this means you have to reuse your existing ones.

Fits:
Porsche 997 Turbo 06/2006>>
except PDK gearbox

Designed to reduce body roll, increase lateral stiffness and improve handling. All H&R Sway Bar kits have been shot peened and heat treated, and feature precision forged ends - many applications have multiple end link mounting points for adjustability.
H&R Sway Bars are 100% made in Germany, and are powder coated for long lasting good looks and durability on the street and track.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

33239-3

The product you are viewing cross references to these numbers

H&R Sway Bars are the perfect compliment to H&R Springs, Coil Overs, Performance Shocks and Cup Kits.



Front & Rear Anti Roll Bar:
- Front - 26mm (adjustable in 3 places)
- Rear - 24mm (adjustable in 4 places)

Please note: if bushes are not included with the kit this means you have to reuse your existing ones.

Fits:
Porsche 997, 4WD, Carrera 4 / Carrera 4S 11/2005>>
incl. Facelift Mod. 2008
except PDK gearbox,

Designed to reduce body roll, increase lateral stiffness and improve handling. All H&R Sway Bar kits have been shot peened and heat treated, and feature precision forged ends - many applications have multiple end link mounting points for adjustability.
H&R Sway Bars are 100% made in Germany, and are powder coated for long lasting good looks and durability on the street and track.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

33239-2

The product you are viewing cross references to these numbers

Hub Adaptors, converts (4/100) Bore 57.1 To Porsche (5/130) Bore 71.6

Car fitment:
Audi / VW / Seat / Skoda / BMW E30

Light alloy adapters give the possibility to fit wheels with a different bolt-pattern / center bore to your car. All Adapter kits come complete with all necessary hardware. Simply bolt the adaptor to the hub of the car, and then fit the new wheels. Wheel offsets will need to be calculated to include the width of the adaptors.

For Vehicles Originally With:
4/100 Bolt Pattern
57.1mm Bore size
M14 x 1,5 Bolt Size

Wishing To Convert To: Porsche
5/130 Bolt Pattern (Porsche)
71.6mm Bore Size

Sold in sets of pairs (for one axle)

Hub Adaptors, converts (5/120) Bore 72.5 To Porsche (5/130) Bore 71.6

Car fitment:
BMW

Light alloy adapters give the possibility to fit wheels with a different bolt-pattern / center bore to your car. All Adapter kits come complete with all necessary hardware. Simply bolt the adaptor to the hub of the car, and then fit the new wheels. Wheel offsets will need to be calculated to include the width of the adaptors.

For Vehicles Originally With:
5/120 Bolt Pattern
72.5mm Bore size
M14 x 1,5 Bolt Size

Wishing To Convert To: Porsche
5/130 Bolt Pattern (Porsche)
71.6mm Bore Size

Sold in sets of pairs (for one axle)

Hub Adaptors, converts (4/100) Bore 57.1 To Porsche (5/130) Bore 71.6

Car fitment:
Audi / VW / Seat / Skoda / BMW E30

Light alloy adapters give the possibility to fit wheels with a different bolt-pattern / center bore to your car. All Adapter kits come complete with all necessary hardware. Simply bolt the adaptor to the hub of the car, and then fit the new wheels. Wheel offsets will need to be calculated to include the width of the adaptors.

For Vehicles Originally With:
4/100 Bolt Pattern
57.1mm Bore size
M14 x 1,5 Bolt Size

Wishing To Convert To: Porsche
5/130 Bolt Pattern (Porsche)
71.6mm Bore Size

Sold in sets of pairs (for one axle)

Hub Adaptors, converts (5/100) Bore 57.1 To Porsche (5/130) Bore 71.6

Car fitment:
Audi / VW / Seat / Skoda

Light alloy adapters give the possibility to fit wheels with a different bolt-pattern / center bore to your car. All Adapter kits come complete with all necessary hardware. Simply bolt the adaptor to the hub of the car, and then fit the new wheels. Wheel offsets will need to be calculated to include the width of the adaptors.

For Vehicles Originally With:
5/100 Bolt Pattern
57.1mm Bore size
M14 x 1,5 Bolt Size

Wishing To Convert To: Porsche
5/130 Bolt Pattern (Porsche)
71.6mm Bore Size

Sold in sets of pairs (for one axle)

Hub Adaptors, converts (5/112) Bore 57.1 To Porsche (5/130) Bore 71.6

Car fitment:
Audi / VW / Seat / Skoda

Light alloy adapters give the possibility to fit wheels with a different bolt-pattern / center bore to your car. All Adapter kits come complete with all necessary hardware. Simply bolt the adaptor to the hub of the car, and then fit the new wheels. Wheel offsets will need to be calculated to include the width of the adaptors.

For Vehicles Originally With:
5/112 Bolt Pattern
57.1mm Bore size
M14 x 1,5 Bolt Size

Wishing To Convert To: Porsche
5/130 Bolt Pattern (Porsche)
71.6mm Bore Size

Sold in sets of pairs (for one axle)

H&R height adjustable coil overs are designed for every driver who wants to realize their sporty ambitions with superior technical suspension solutions.



NOTE:Not for cars with sport chrono turbo package

Fits:
Porsche 997 Turbo 06/2006>> 4WD

Lowers car by: FT 20-45mm / RR 20-40mm

Decades of suspension experience are realized here: Development and production of high tension springs and shock absorbers is done at H&R.
All parts are produced after OE standards. High quality monotube-shock absorber technique is combined with individually tuned springs and delivers a convincing lowering, a good driving experience without loosing the necessary comfort.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

29120-2

The product you are viewing cross references to these numbers

H&R height adjustable coil overs are designed for every driver who wants to realize their sporty ambitions with superior technical suspension solutions.

Fits:
Porsche 997 C4 / C4S 11/2005>>

Lowers car by: FT 30-60mm / RR 20-50mm

Decades of suspension experience are realized here: Development and production of high tension springs and shock absorbers is done at H&R.
All parts are produced after OE standards. High quality monotube-shock absorber technique is combined with individually tuned springs and delivers a convincing lowering, a good driving experience without loosing the necessary comfort.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

29120-1

The product you are viewing cross references to these numbers
