后控制臂

RSS Lower Control Arm Kit for Porsche Models.
Type: None Adjustable Thrust Arm Bushing



RSS Tarmac Series Motorsport Lower Control Arms are specifically engineered for use on lowered vehicles that have reduced travel struts/dampers such as PASM or M030 option. Alternatively if the car is equipped with high quality aftermarket or motorsport coilover kits ie Bilstein PSS10, KW V3 or Ohlins etc.

The Lower Control Arms are NOT COMPATIBLE with "Base Model Suspension" (long travel struts/dampers) or "Base Model struts/dampers with lowering springs."
Caution: Do not install on vehicles with Base Model struts/dampers as it may result in an unsafe driving condition with possibility of suspension bind when struts/dampers are fully extended or in full drop.

Price: Set of Two Control Arms plus 2 x 1mm/2mm/3mm/7mm Shims.

RSS Tarmac Series Control Arms are manufactured from 6061 aerospace grade billet aluminum. This allows for a more uniform molecular structure
at every point of the arm over the cast motorsports arm giving the customer a more durable and inherently stronger part. Manufacturing from billet
aluminum rather than casting results in less impurities in the metal.

• Completely serviceable - for the extreme, repetitive track-day participant, our high-strength steel alloy spherical bearings (with a friction reducing /longevity increasing Teflon liner) can be replaced unlike the motorsports arm, in which case the customer will have to buy a new set of arms if the spherical bearings are worn.
Additionally, anodized surfaces and zinc-plated steel parts allow for better corrosion resistance against the elements.

• Adjustable suspension geometry - adjust dynamic camber values and roll center heights with our unique zinc-plated steel bushings.

• Solid monoball control arm ends offer a more responsive suspension over the factory one-piece rubber-injected control arm (also uses the same high
strength steel alloy spherical bearing found in our control arm monoball kit).

• Unique design provides more gusseting over the motorsports arms for added strength and aesthetically appealing looks.

Please Check Fitting Guide Before Ordering Click Here

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

358

您正在查看的产品与这些编号存在交叉引用关系

使用我们高品质的单球套件来提升您的保时捷的性能，该套件的设计精确、耐用且易于安装。

每辆车需要 1 套套件 - 包括 4 个单球轴承（每个下控制臂两个）。




保时捷 991 Carrera 2/4/GTS 2012-19
保时捷 991 Turbo 2014-20

特征：

球面轴承，实现极致精度 -用硬化钢球面轴承代替工厂橡胶衬套，实现多轴自由运动。这消除了橡胶衬套常见的偏转，确保精确的束角和外倾角对准。

经过机械加工以实现完美配合 -高公差外壳允许简单的压配合安装，并配有正确的垫片以实现精确配合。

防风雨密封，经久耐用 -硬质阳极氧化单球外壳和垫片可耐磨损和腐蚀，而专有的橡胶密封件可保护精密轴承免受道路污染物的影响，从而延长产品寿命。

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2260009

您正在查看的产品与这些编号存在交叉引用关系

Rear lower wishbone eccentric monoball kit.
1 kit required per car



Fits
Porsche 991 2012 Onward - Rear Only
Porsche 991 Turbo 2012 Onward - Rear Only

Our Eccentric Lower Wishbone Monoball Cartridges replace inner rubber bushings with spherical bearings, providing low friction and precisely holding camber settings.
The eccentric design allows increasing or decreasing rear camber, as needed.

Increasing Camber – Position the eccentric to maximize Lower Wishbone length, adding about .86 degree of negative camber on the rear suspension, .39 degrees on the front suspension. Cost effective for cars that just want extra camber. For even more camber and ease of adjustment, see our GT3 type fully adjustable control arms.

Decreasing Camber – Position the eccentric to minimize Lower Wishbone length. Perfect for lowered cars that have too much negative camber and want to get back to factory camber settings to minimize tire wear on the street. Makes rear camber about .86 degrees more positive, front camber about .39 degrees more positive.

Made from hardened steel, plated and weather-sealed, these bearings are made to last. Fits the front or rear stock and GT3 type control arms

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2260008

您正在查看的产品与这些编号存在交叉引用关系

BBi Autosport 后狗骨臂组。



适合
991.1、991.2 Carrera 和 Carrera S
991.1 和 991.2 Carrera 4 以及 Carrera 4S
991.1 和 991.2 GTS
991.1 和 991.2 涡轮增压

产品描述：
BBi Autosport“狗骨”后臂组升级了工厂控制臂，采用机加工和阳极氧化装置，专门用于容纳球形轴承。

全套装置用橡胶衬套取代了悬架臂，恢复了悬架的控制力、稳定性和可预测性 - 与 RS 车型非常相似。

这些都是完全可以使用的部件。

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

BBIDOGBONE991

您正在查看的产品与这些编号存在交叉引用关系

Rear track rod concentric monoballl kit.
1 kit required per car



Fits
Porsche 991 2012 Onward - Rear Only
Porsche 991 Turbo 2012 Onward - Rear Only

Monoball Cartridges replace factory rear track rod bushings with hardened-steel spherical bearings. Spherical bearings allow free motion on multiple axis and eliminate deflection associated with rubber, resulting in more precise holding of toe and camber.

High tolerance machined housing allow for simple press fit installation. Correct spacers ensure proper fitment.

Eccentric bearings are made from hardened steel, plated and weather-sealed to keep road contaminates out.

These bearings are made to last.

The kit includes 4 monoball bearings. 2 bearings per arm, for both track rods.
Order one kit per car

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2260015

您正在查看的产品与这些编号存在交叉引用关系

Rear track rod eccentric monoballl kit.
1 kit required per car



Fits
Porsche 991 2012 Onward - Rear Only
Porsche 991 Turbo 2012 Onward - Rear Only

This monoball cartridge kit replace the inner and outer track rod bushings.
The inner Eccentric bearings provide increased range of toe adjustment. This is to compensate for increased camber or lowered car that cannot be brought into toe range. The outer concentric bearing replaces the rubber bushing and eliminates deflection due to rubber compression.

Increasing Camber – Position the eccentric to maximize Lower Wishbone length, adding about .86 degree of negative camber on the rear suspension, .39 degrees on the front suspension. Cost effective for cars that just want extra camber. For even more camber and ease of adjustment, see our GT3 type fully adjustable control arms.

Decreasing Camber – Position the eccentric to minimize Lower Wishbone length. Perfect for lowered cars that have too much negative camber and want to get back to factory camber settings to minimize tire wear on the street. Makes rear camber about .86 degrees more positive, front camber about .39 degrees more positive.

Eccentric bearings are made from hardened steel, plated and weather-sealed to keep road contaminates out. These bearings are made to last.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2260013

您正在查看的产品与这些编号存在交叉引用关系

后直立轮架衬套工具。
每个应用需要 1 个工具

#大象赛跑#

适合
保时捷 991 - 后部
保时捷 991 Turbo - 后部

简化 Monoball 产品和更换衬套的安装过程。

我们的两件式杯形和活塞工具可轻松取出和插入衬套，无需拆卸轮架或控制臂。无需使用车间压力机。这些工具的设计精确贴合衬套周长，可防止衬套意外损坏并确保正确安装。

我们有用于 LCA 中央衬套、后直立 LCA 衬套和后直立减震器安装衬套的工具。

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

226001

您正在查看的产品与这些编号存在交叉引用关系

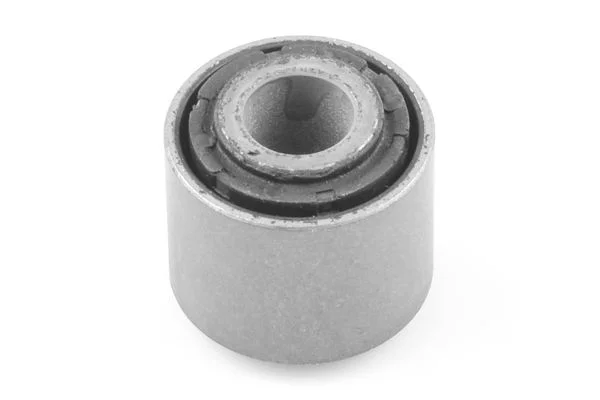

后轮托架同心衬套（减震器支架）。
价格为每个



适合
保时捷 991 2012 年起 - 仅后部
保时捷 991 Turbo 2012 年起 - 仅后部






相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

99133111212

您正在查看的产品与这些编号存在交叉引用关系

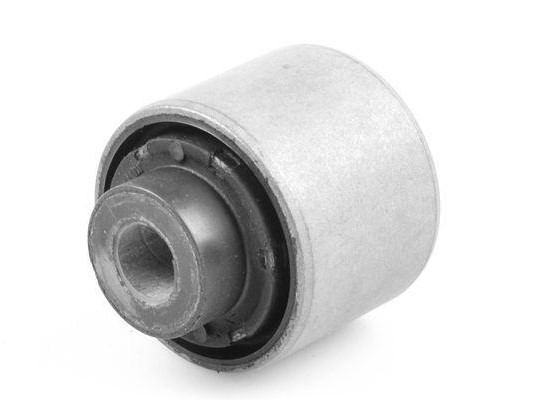

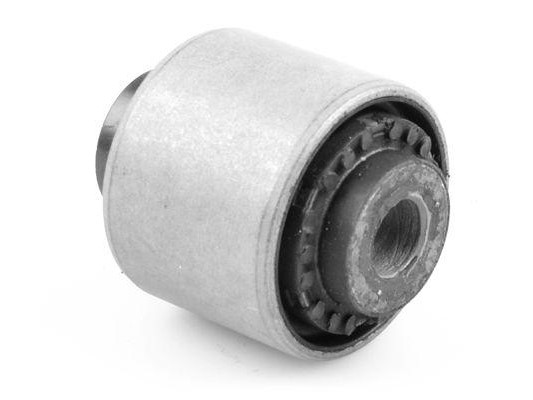

后轮托架同心衬套（控制臂支架）。
价格为每个



适合
保时捷 991 2012 年起 - 仅后部
保时捷 991 Turbo 2012 年起 - 仅后部






相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

99133111212

您正在查看的产品与这些编号存在交叉引用关系

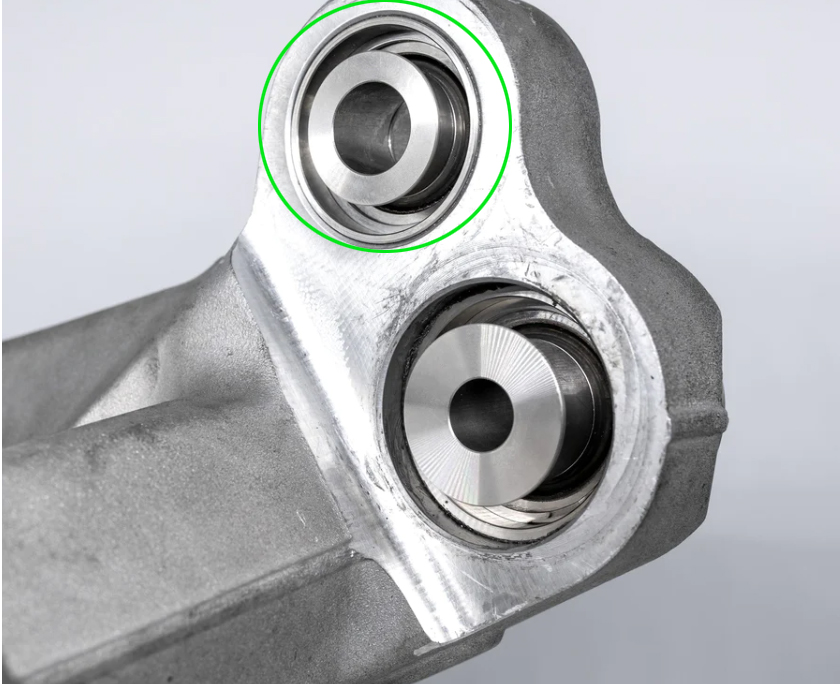

Rear wheel carrier concentric monoball kit.
1 kit required per car



Fits
Porsche 991 2012 Onward - Rear Only
Porsche 991 Turbo 2012 Onward - Rear Only

Monoball Cartridges replace factory rear wheel carrier bushings with hardened-steel spherical bearings. Spherical bearings allow free motion on multiple axis and eliminate deflection associated with rubber, resulting in more precise holding of toe and camber.

High tolerance machined housing allow for simple press fit installation. Correct spacers ensure proper fitment.

Weather Sealed
Monoball housing and spacers are hard anodized for protection. Our proprietary rubber seals keep the precision bearing from road contaminates for extended life of the product.

The kit includes two monoball bearings… one for each rear wheel carrier

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2260011

您正在查看的产品与这些编号存在交叉引用关系

ADJUSTABLE THRUST ARM BUSHING KIT (For vehicles equipped with Hydraulic Thrust Arm Bushings Only).
SET OF 4. FRONT AXLE ONLY



The RSS Adjustable Thrust Arm Bushing Kit will improve handling and response in 987. 997, 981, GT4, 991 GT3 variants, suspension systems and allows for additional caster adjustments. Eliminates unwanted caster changes in both front and rear suspension under acceleration and deceleration.

AVAILABLE FOR ALL PORSCHE® 987,981, GT4, 997, 991 and 991 GT3, and 991 TURBO
NOT FOR 997 GT3/GT2

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

360

您正在查看的产品与这些编号存在交叉引用关系

Inner Spherical Bearing (Mono-ball) End Kit: SET OF 2.



Fits
Porsche 991 GT3 OE Front Control Arms
Porsche 981 GT4 Front and Rear Control Arms
Porsche 986, 987, 996, 997 with GT3/RS OE Front or Rear Split Control Arms,

Fits any RSS Tarmac Series Lower Control Arm or replaces any OE Porsche Split Arm Inner Bushing.
Provides a Bolt On Mono-Ball Performance Solution replacing rubber mounted OE inner mono-balls. RSS Longer studs allow for more negative camber adjustment / gain vs. OE inner bushing. For camber shim kits see RSS Part # 308.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

3-256

您正在查看的产品与这些编号存在交叉引用关系

保时捷车型下控制臂调整垫片



价格：一个对齐垫片

RSS 定位垫片专为配合工厂或售后市场的两件式赛车风格控制臂使用而设计。非常适合在安装过程中获得更多负外倾角和调整轮距。

垫片有多种尺寸，包括 1 毫米、2 毫米、3 毫米、5 毫米、7 毫米、10 毫米和 11 毫米。

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

300

您正在查看的产品与这些编号存在交叉引用关系

RSS Lower Control Arm Adjusting Shim - Rear.



Fits:
Porsche 991 GT3 / GT3 RS
Porsche 991 GT2 RS

Price: One Alignment Shim

RSS alignment shims are designed for use with factory or aftermarket 2-piece motorsport style control arms. Perfect for obtaining more negative camber and adjusting track width during setup.

Shims are available in a variety of sizes including 1mm, 2mm, 3mm, 5mm, 7mm, 10mm and 11mm.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

301

您正在查看的产品与这些编号存在交叉引用关系

RSS Tarmac Series Lower Control Arm - Outer Ball Joint Pin Rebuild Kit. 1 Kit Per RSS Lower Control Arm (Fits: Part #s: 356, 357, 361, 372, 373, 374 and 366)



Includes:
1 x Tapered Stud,
1 x Upper Lock Nut,
1 x Lower Lock Nut and
4 x Roll Center Spacers/Washers.

1 Kit Per RSS Lower Control Arm (Fits: Part #s: 356, 357, 361, 372, 373, 374 and 366).

USER NOTE: A new 380 Kit should be installed once ball joint pin has been removed from hub. See Lower Control Arm Notes.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

380

您正在查看的产品与这些编号存在交叉引用关系

RSS Tarmac series rear alignment / camber shim
Assortment Pack: (2 of each size) 1mm, 2mm, 3mm, 8mm 10mm.



Fits: Porsche OE 2-Piece rear lower control arm set.

Fits:
Porsche 991 GT3/GT3/RS


Made in the USA

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

397

您正在查看的产品与这些编号存在交叉引用关系
